Technical Reference Booklet
Audio ConfigurationAudio Configuration
Audio ConfigurationAudio Configuration
Audio Configuration
After installing the audio driver, you can select 4/6 channel surround
audio output in the software utility and then connect surround speakers to
appropriate audio ports.
There are two ways to obtain 4/6 channel surround audio output:
1. Using the 4/6 surround audio output of the back panel. All surround speaker
connect to audio connector.
2. Using the S-Bracket (optional cable). You have installed the S-Bracket into
the computer. Connect two front speakers to back panel’s “Line-out” port, and
the rest of speakers to S-Bracket. For connection details, please refer to page
22.
SpeakSpeak
SpeakSpeak
Speak
er Configurationer Configuration
er Configurationer Configuration
er Configuration
Method 1: Using the 4/6 Surround audio output of back panel
After installing the audio drivers, you can attach the speakers for 2-/4-/6-
channel audio output. Always connect the speakers to the LINE OUT
connectors. Different connector configurations for 2-/4-/6-channel operations
are listed below:

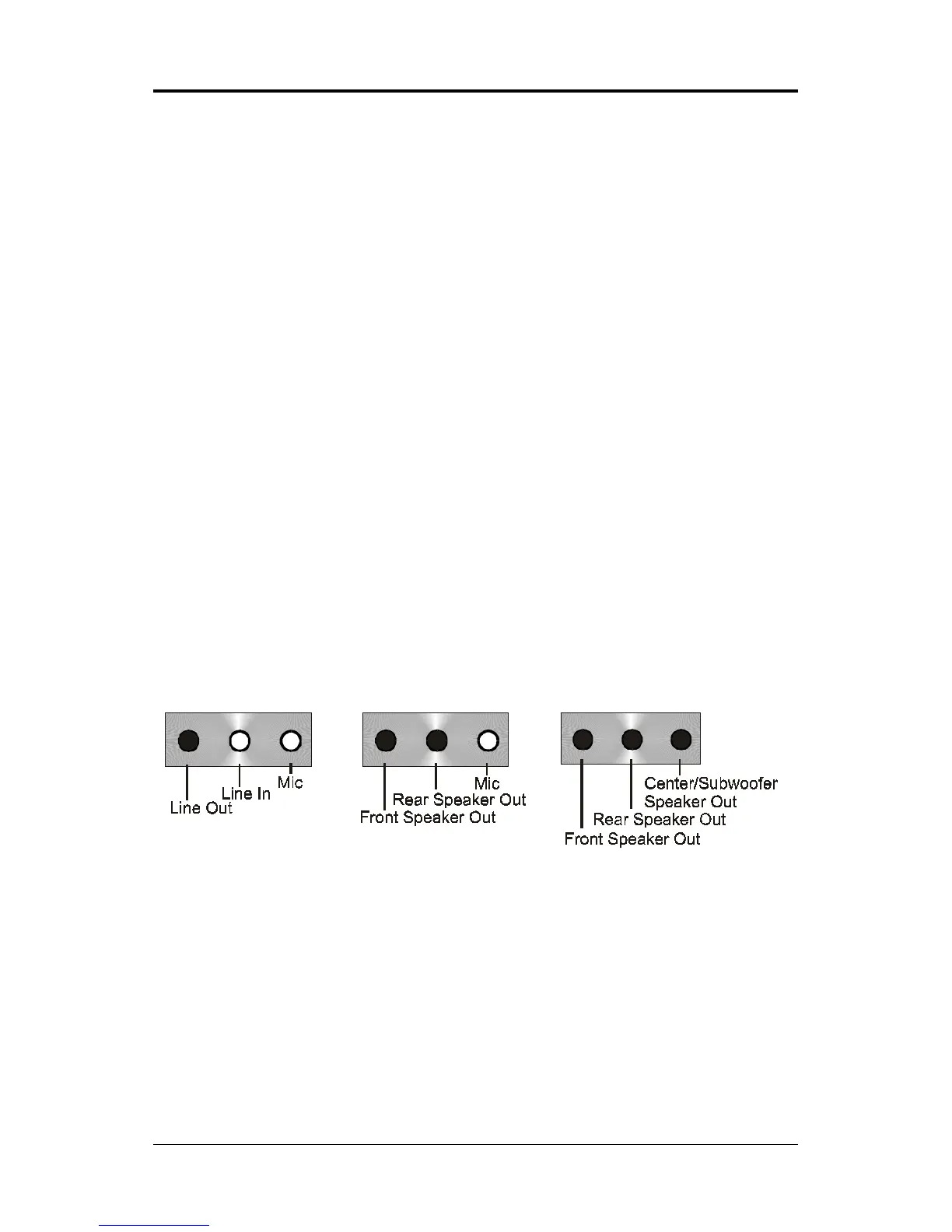

2-Channel
4-Channel 6-Channel
In 2-channel configuration,
Line Out, Line In and MIC
functions all exist.
When set to 4-channel
configuration, Line In is
replaced by Rear
Speaker Out. The Line
in function does not exist.
When set to 6-channel
configuration, Line In is
replaced by Rear Speaker
Out. Mic is replaced by
Center/Subwoofer Speaker
Out. Line in and Mic functions
do not exist.
To Next Page
