Technical Reference Booklet
ConnectorsConnectors
ConnectorsConnectors
Connectors

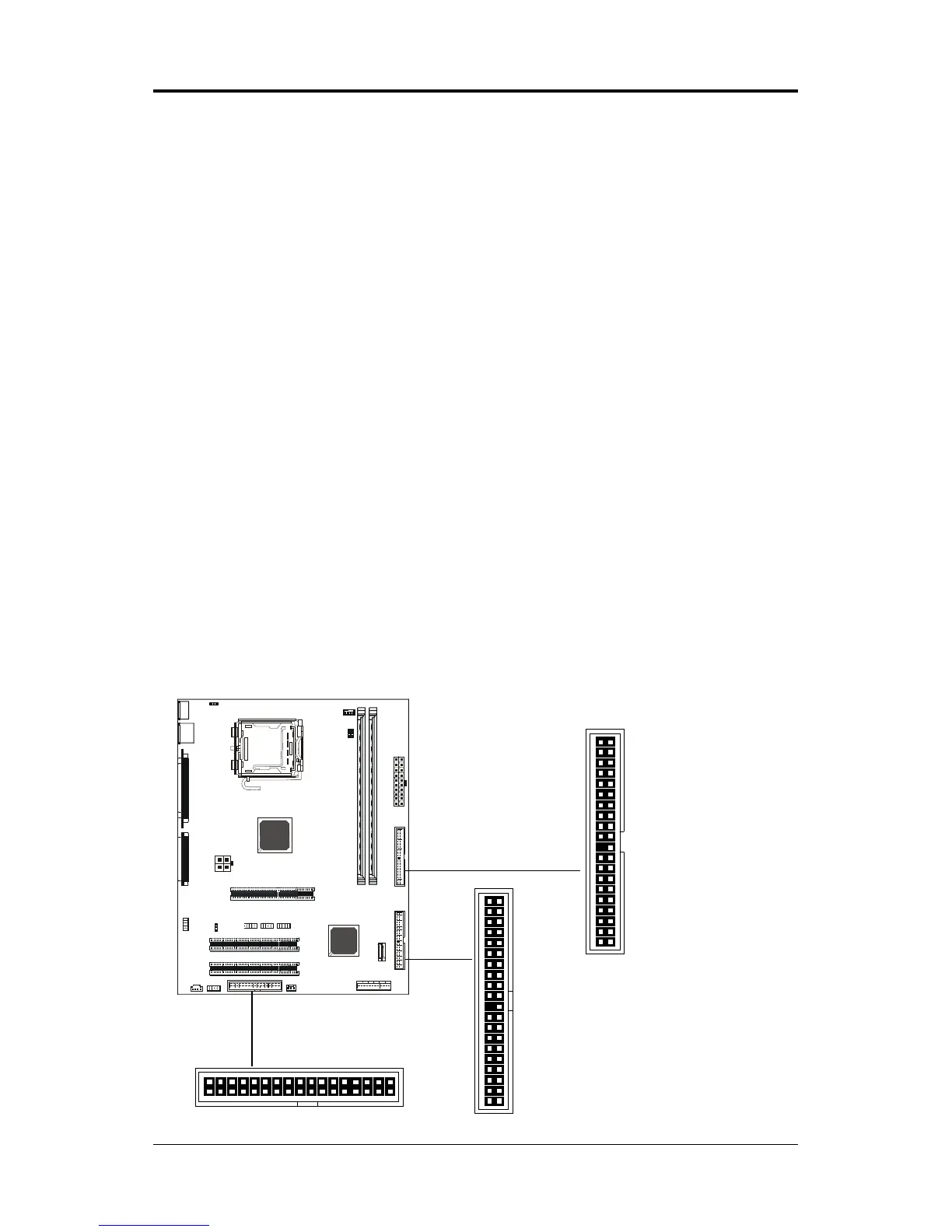

The motherboard provides connectors to connect to FDD, IDE HDD, and USB
Ports and to the CPU/System FAN etc.
Floppy Disk Drive Connector - CN3
The motherboard provides a standard floppy disk drive connector that
supports 1.44M, 2.88M floppy disk types.
Hard Disk Connectors - CN1, CN2
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100/
133 controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/
66/100/133 function. You can connect up to four hard disk drives, CD-ROMs,
120MB Floppy (reserved for future BIOS) and other devices.
CN1 (Primary IDE Connector)
The first hard drive should always be connected to CN1. CN1 can connect
a Master and a Slave drive. You must configure the second hard drive to Slave
mode by setting the jumper accordingly.
CN2 (Secondary IDE Connector)
CN2 can also connect a Master and a Slave drive.
CN3
CN1
1
1
1
CN2
FOXC ONN
REM OVE
