Technical Reference Booklet
Fan Power Header - CPUFAN, SYSFANFan Power Header - CPUFAN, SYSFAN
Fan Power Header - CPUFAN, SYSFANFan Power Header - CPUFAN, SYSFAN
Fan Power Header - CPUFAN, SYSFAN
The CPUFAN1 (processor fan) and SYSFAN1 (system fan) support system
cooling fans using +12V via a four/three-pin head connector. When connecting
the wire to the connectors, always take note that the red wire is the positive and
should be connected to the +12V, the black wire is Ground and should be
connected to GND. If the mainboard has a System Hardware Monitor chipset
on-board, you must use a specially designed fan with speed sensor to take
advantage of the CPU fan control.

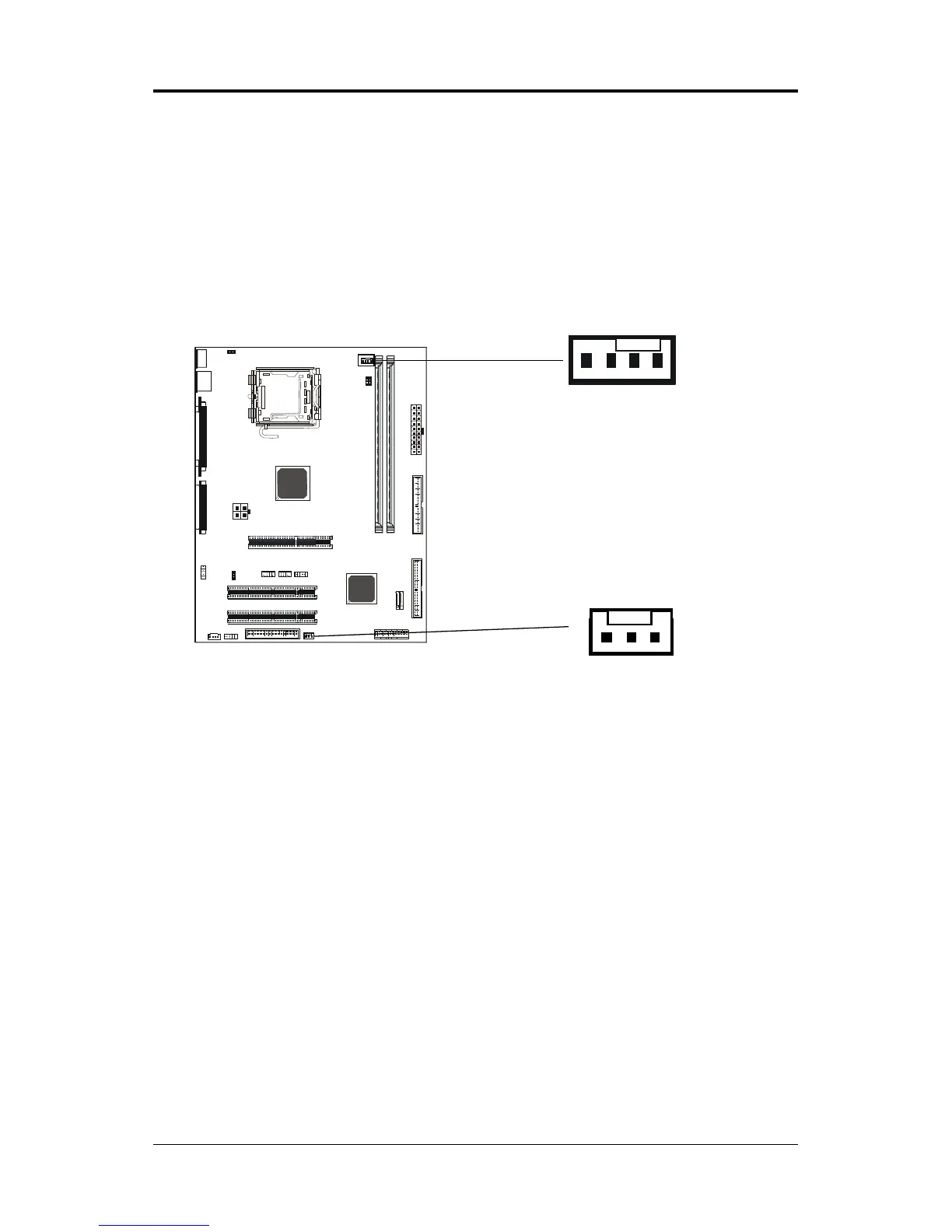

SYS FAN
1
CPU FAN
FOXC ONN
REM OVE
