S-Bracket(SPDIF)
/CEN/LFE/Surround Output/CEN/LFE/Surround Output
/CEN/LFE/Surround Output/CEN/LFE/Surround Output
/CEN/LFE/Surround Output Connector
- CN6 (optional)

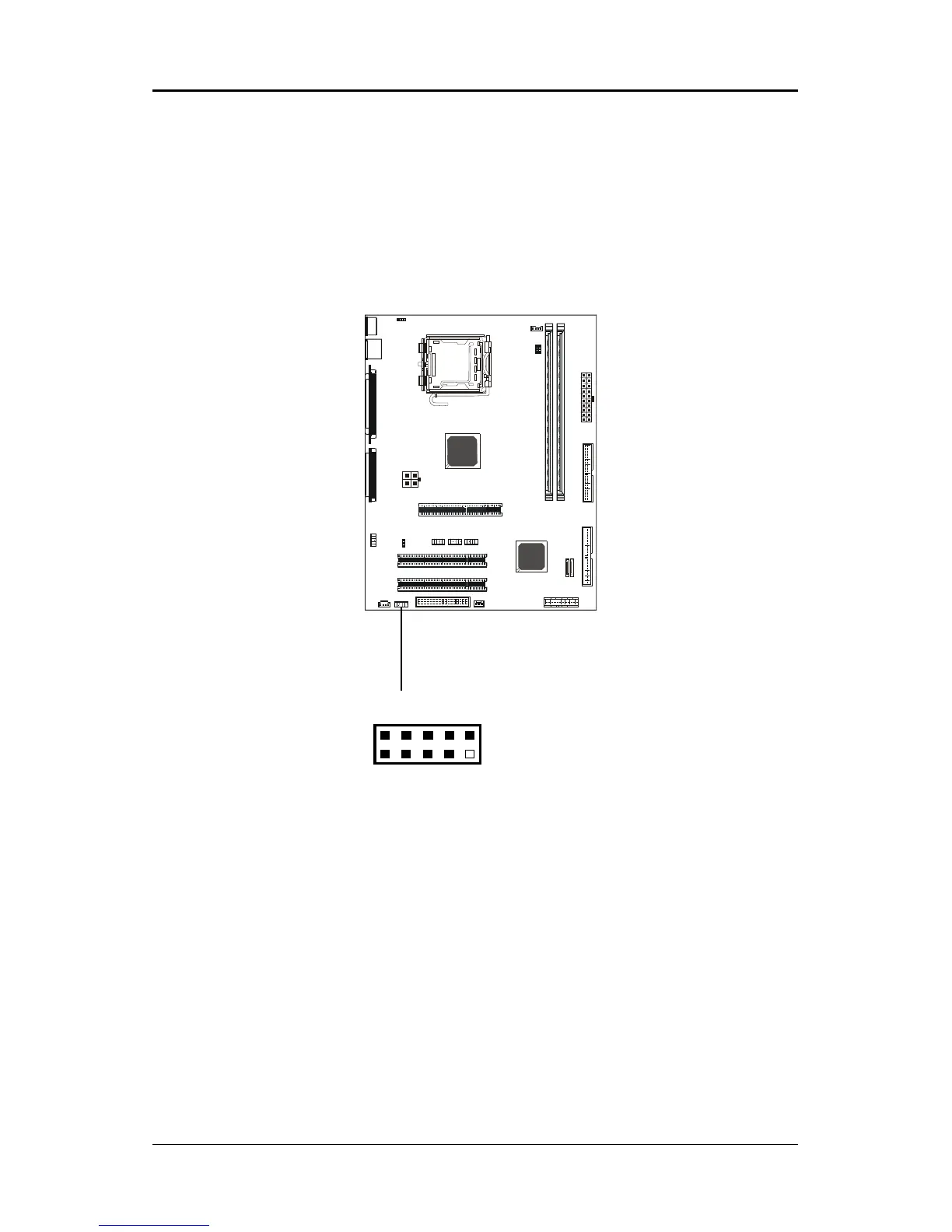

The connector allows you to connect a S-Bracket for a Digital Interface (SPDIF).
The S-Bracket offers 1 SPDIF jacks for digital audio transmission and 2 analog
Line-Out jacks for other 4-channel audio output. So you can use Line in, Mic in
and 6 channel audio output features at the same time.
