2222

Technical Reference Booklet

PIN SIGNAL DESCRIPTION

1 SOUT-L Audio left surrounding output

2 SOUT-R Audio right surrounding output

3 GND Ground

4 GND Ground

5 CET-OUT Audio center output

6 LFE-OUT Audio bass output

7 GND Ground

8 SPDIF S/PDIF input

9 (No Pin) Key

10 SPDFO S/PDIF output

CN6-CN6-

CN6-

-Brack-Brack

-Brack

etet

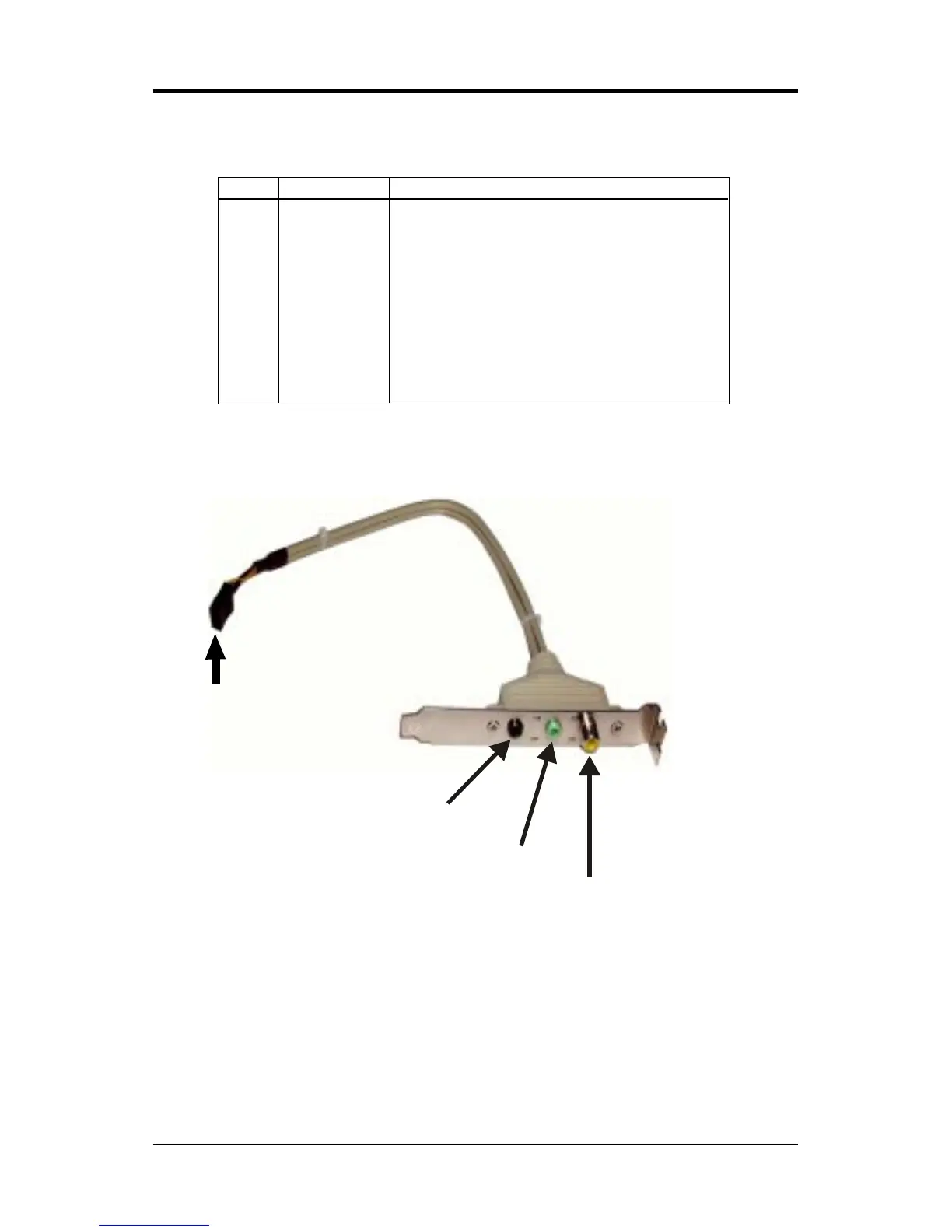

S-Bracket Cable (optional)S-Bracket Cable (optional)

S-Bracket Cable (optional)

Connect to CN6

SPDIF jack (coaxial)

Rear Speaker Out

Center and Subwoofer Out

VIA Technologies P4M890 Technical Reference Booklet
