1. Remove your computer’s cover.
(Note: If necessary, consult your computer’s manual for help in
removing the cover)
2. Locate an available PCI slot and, if necessary, remove the expansion
slot bracket.
3. Insert the USB 2.0 Card gently but firmly until the card is fully
seated.
4. Fasten card to the computer case using a screw.
5. Replace the computer cover.

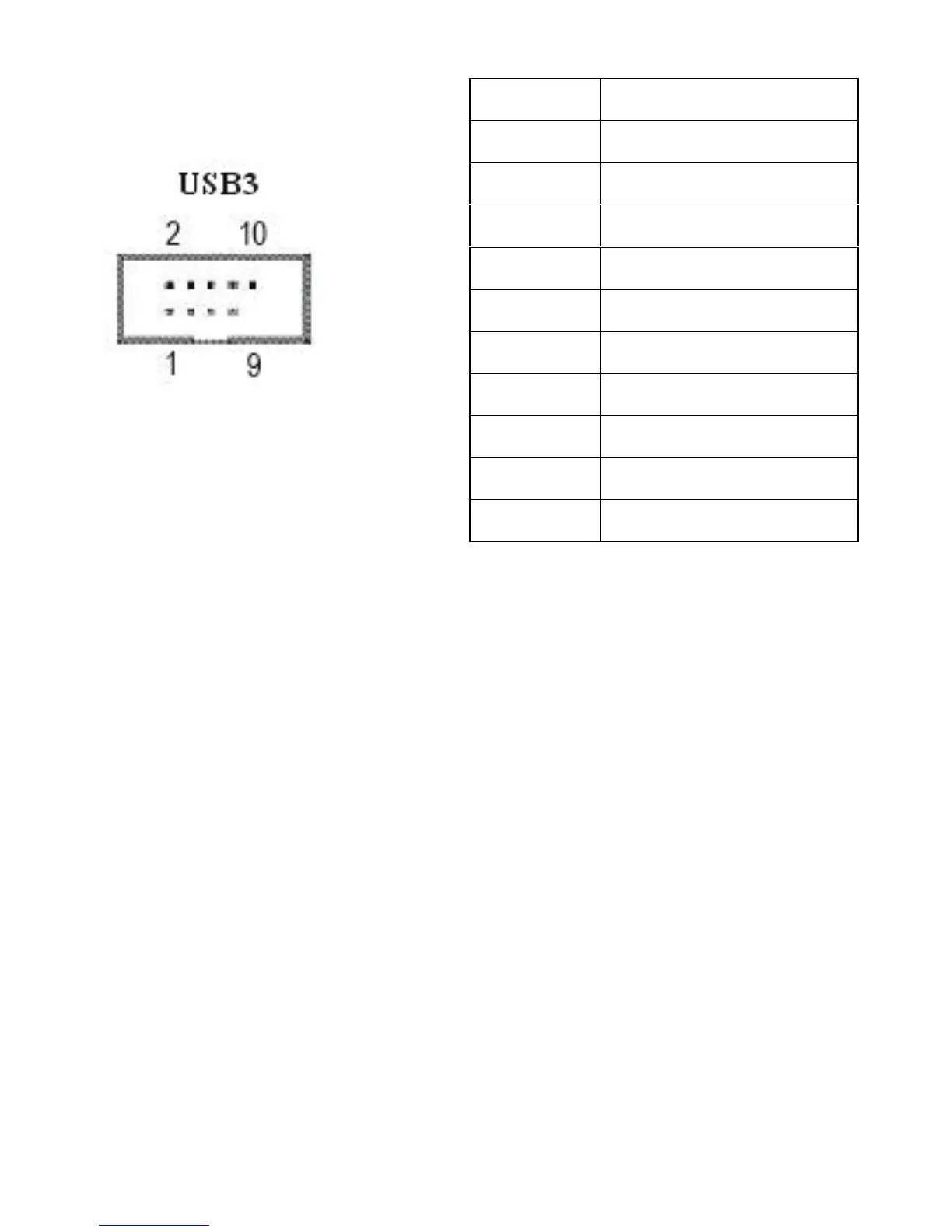

Pin No. Definition
1 Power
2 Power
3 USB3 D-
4 USB4 D-
5 USB3 D+
6 USB4 D+
7 GND
8 GND
9 No Pin
10 NC
