VIAIR 91050 - 5.0 GALLON AIR TANK PARTS LIST; Component Identification; Mounting Hardware Assembly Diagram; TROUBLESHOOTING GUIDE

5.0 GALLON AIR TANK
USER MANUAL
Tank loses air pressure 1. Air leaks from ttings 1. Locate leak by applying soap
& water solution. Tighten
ttings as needed
Tank leaks 1. Pinhole from internal rusting
of tank
1. Replace tank immediately
Can’t get air from tank to
inate tire
1. Low tank pressure 1. Tank pressure must exceed tire
pressure. Increase tank
pressure
TROUBLESHOOTING GUIDE:
PROBLEM: POSSIBLE CAUSE(S) CORRECTIVE ACTION
5.0 GALLON AIR TANK PARTS LIST:
A.
B.
C.
D.
E.
F.
Vibration Isolators (4 pcs)
Brass Inserts (4 pcs)
Mounting Bolts (M11 x 35mm) (4 pcs)
Washers (4 pcs)
Locking Washers (4 pcs)
Hex Nuts (4 pcs)
A B
C
D E F

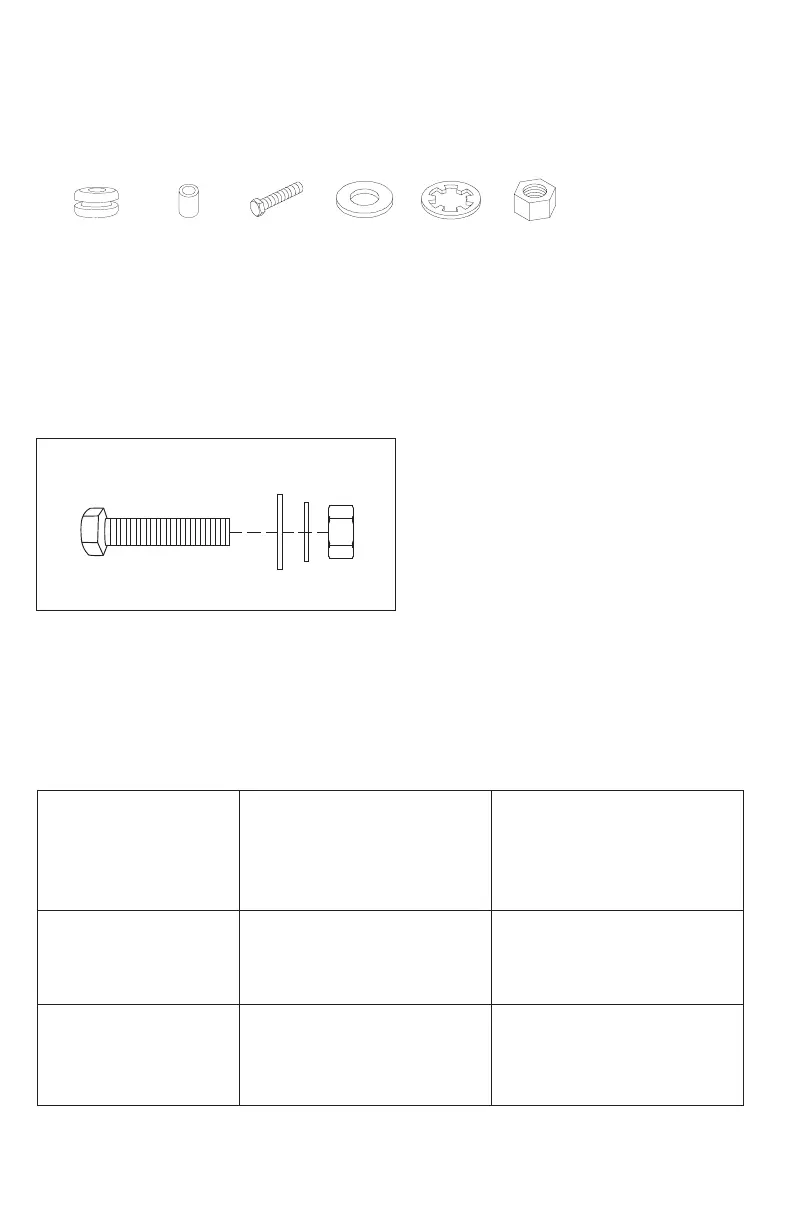

See Fig. 1 for Mounting Hardware Assembly
Fig. 1
F
E
D
C
