PREPARATION
A. POWER SOURCE
THIS UNIT RECEIVES ITS OPERATING POWER FROM THE AC POWER SOURCE. WHEN
POWER IS IN THE ON POSTION, PRESSING [#/P] KEY WILL ONLY PRINT THE DIGITS
DISPLAYED IN THE FRONT PANEL.
B. BEFORE USING THE PRINTER FOR THE FIRST TIME.
REMOVE THE TAPE HOLDING THE INK RIBBON IN PLACE.
C. LOADING PAPER
SET THE “P/NP/IP” SWITCH TO NP POSITION.

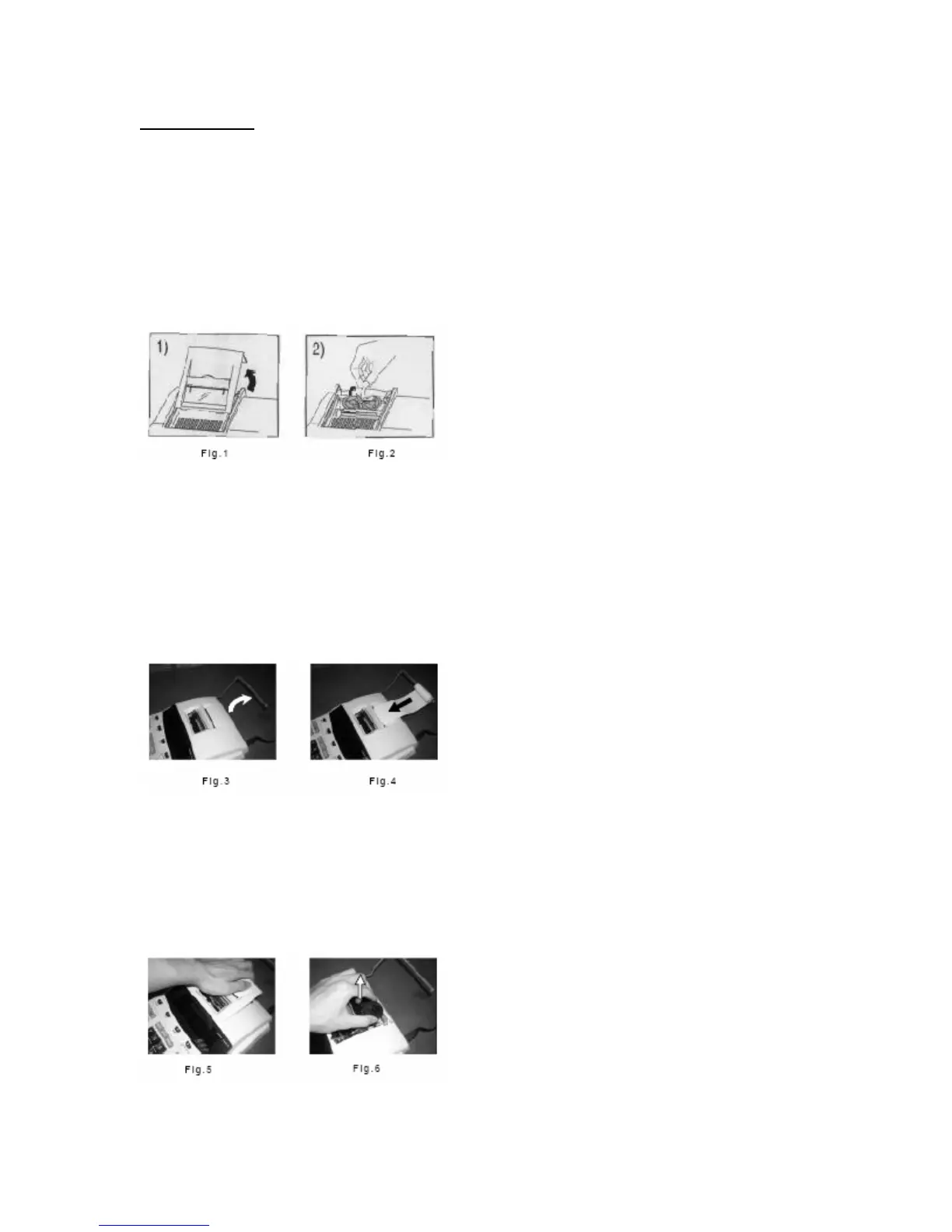

1) PLACE PAPER HOLDER INTO POSITION. (FIG. 3)
2) INSTALL THE PAPER ROLL ON THE HOLDER.
3) INSERT THE PAPER END INTO THE PRINTER SLOT. (FIG. 4)
4) PRESS (↑) KEY TO FEED THE PAPER TO AN ADEQUATE LENGTH.
D. IF THE PRINTING BECOMES FAINT, THE INK RIBBON MAY NEED TO BE REPLACED.
1) TURN THE POWER OFF.
2) OPEN THE PRINTER COVER. (FIG. 5)
3) REMOVE AND DISCARD THE OLD RIBBON AND SPOOLS. (FIG. 6)
4) PLACE THE NEW RIBBON (RED ON THE BOTTOM) BY INSTALLING THE SPOOLS IN
THE REVERSE ORDER. (VICTOR 7010 AVAILABLE AT WWW.VICTORTECH.COM)
