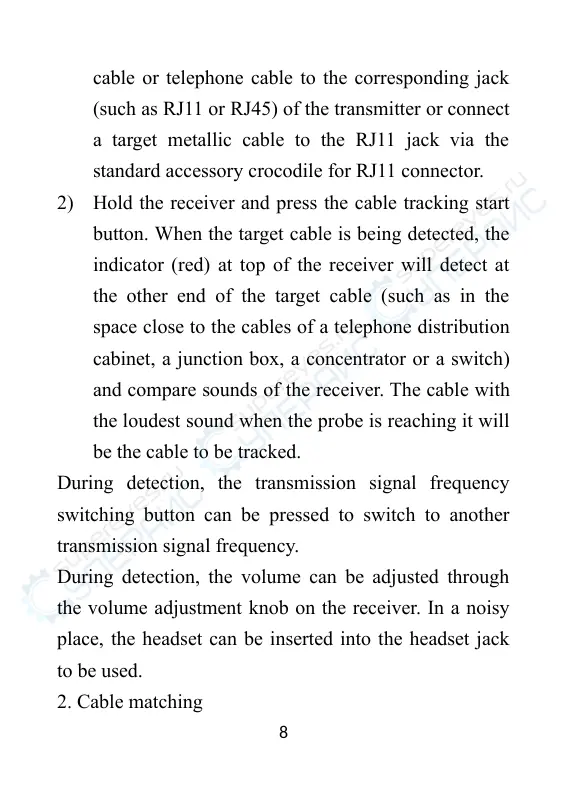

cable or telephone cable to the corresponding jack
(such as RJ11 or RJ45) of the transmitter or connect
a target metallic cable to the RJ11 jack via the
standard accessory crocodile for RJ11 connector.
2) Hold the receiver and press the cable tracking start
button. When the target cable is being detected, the
indicator (red) at top of the receiver will detect at
the other end of the target cable (such as in the
space close to the cables of a telephone distribution
cabinet, a junction box, a concentrator or a switch)
and compare sounds of the receiver. The cable with
the loudest sound when the probe is reaching it will
be the cable to be tracked.
During detection, the transmission signal frequency
switching button can be pressed to switch to another
transmission signal frequency.
During detection, the volume can be adjusted through
the volume adjustment knob on the receiver. In a noisy
place, the headset can be inserted into the headset jack
to be used.
2. Cable matching
