Victor EDGE ESS3 User Manual

KNOB DECAL
6
SCREW
7
WASHER
8
KNOB
9
BONNET SCREWS
10
(a)
BONNET
2
O-RING
17
NOZZLE
16
DIAPHRAGM ASSM.
4
ADJUSTING SPRING
15
SCREW
7
WASHER
14
GUIDE BUSHING
13
DRIVE SCREW
12
THRUST WASHER
11
FRICTION DAMPER
21
GLAND
20
VALVE SPRING
19
SEAT ASSM.
18
BODY
1
INELT NUT
23
FILTER
24A
INLET SWIVEL
24
PIPE PLUG
25
OUTLET
26
RELIEF VALVE
27
(b)
L.P. GAUGE
28
H.P. GAUGE
29
GAUGE GUARD
3
SCREW
5
SCREW
5
BONNET DECAL (GAS)
30
REAR BODY DECAL (GAS I.D.)
31
SEAT GUIDE
22
(See Detail A)
BACK-UP RING
4A
(c)
Diaphragm
Assembly
Body
Bonnet
Back-Up Ring
Orientation
In Assembly
(c)

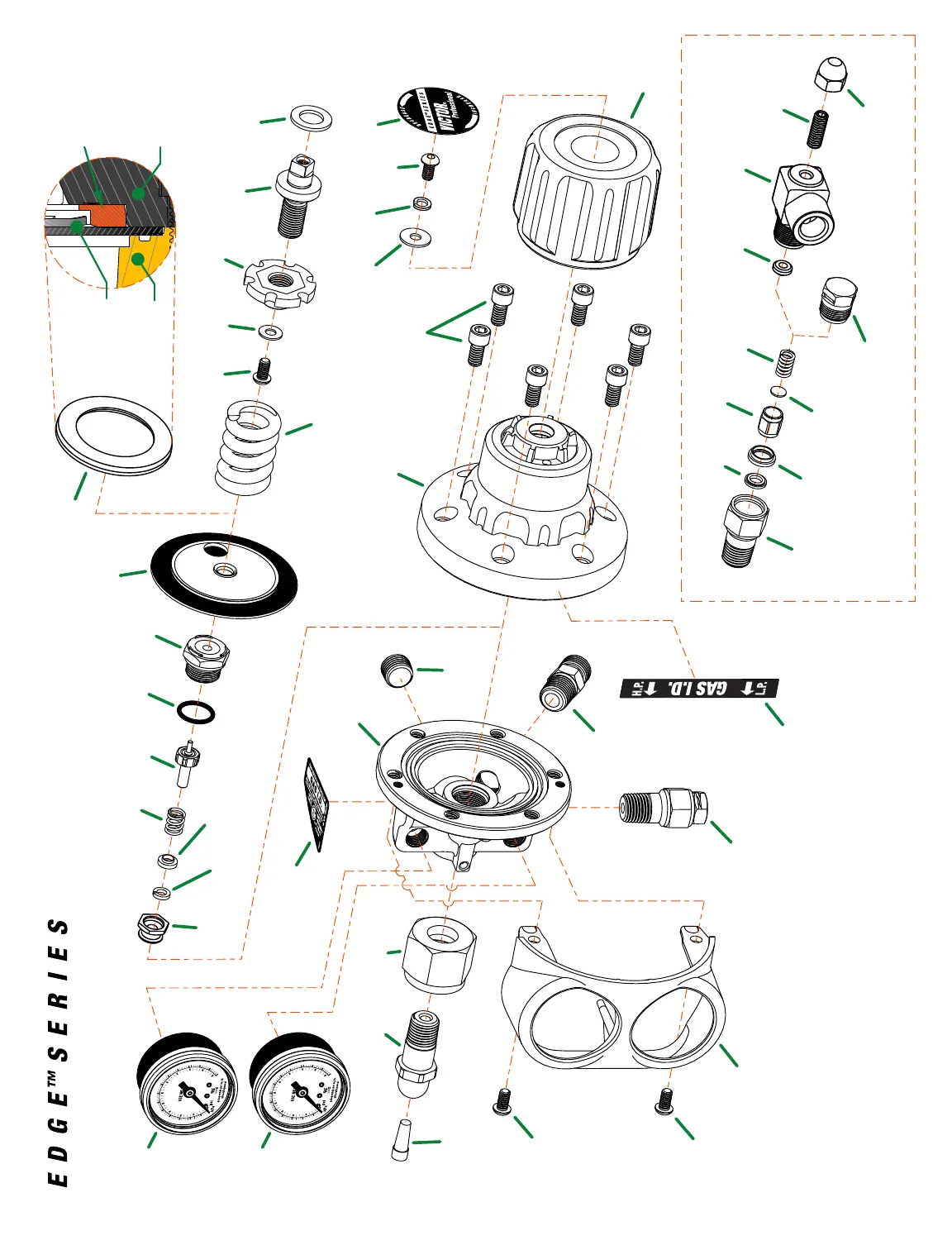

EXPLODED VIEW - ESS3 AND ESS4 MODELS
LOCK WASHER
8A
BODY
27A
SEAT RET.
27C
DISC
27E
SEAT
27B
UPPER SEAT
27D
SPRING
27F
CAP
27G
DETAIL A - Relief Valve
(b)
(a)
ESS3 models use five Screws for Bonnet, ESS4 models use six Screws.
(b) Pipe Plug replaces Relief Valve on fuel gas models (510, 300, 993). (c) Used on ESS4 “E” Range (200 PSIG Delivery) models only.
SPRING BUTTON
27I
VENTED CAP
27H
ADJ. SCREW
27J
CAP NUT
27K
Vented
Non-Vented
- 2 -
ESS3/ESS4 SECTION 1

Victor EDGE ESS3 Specifications
