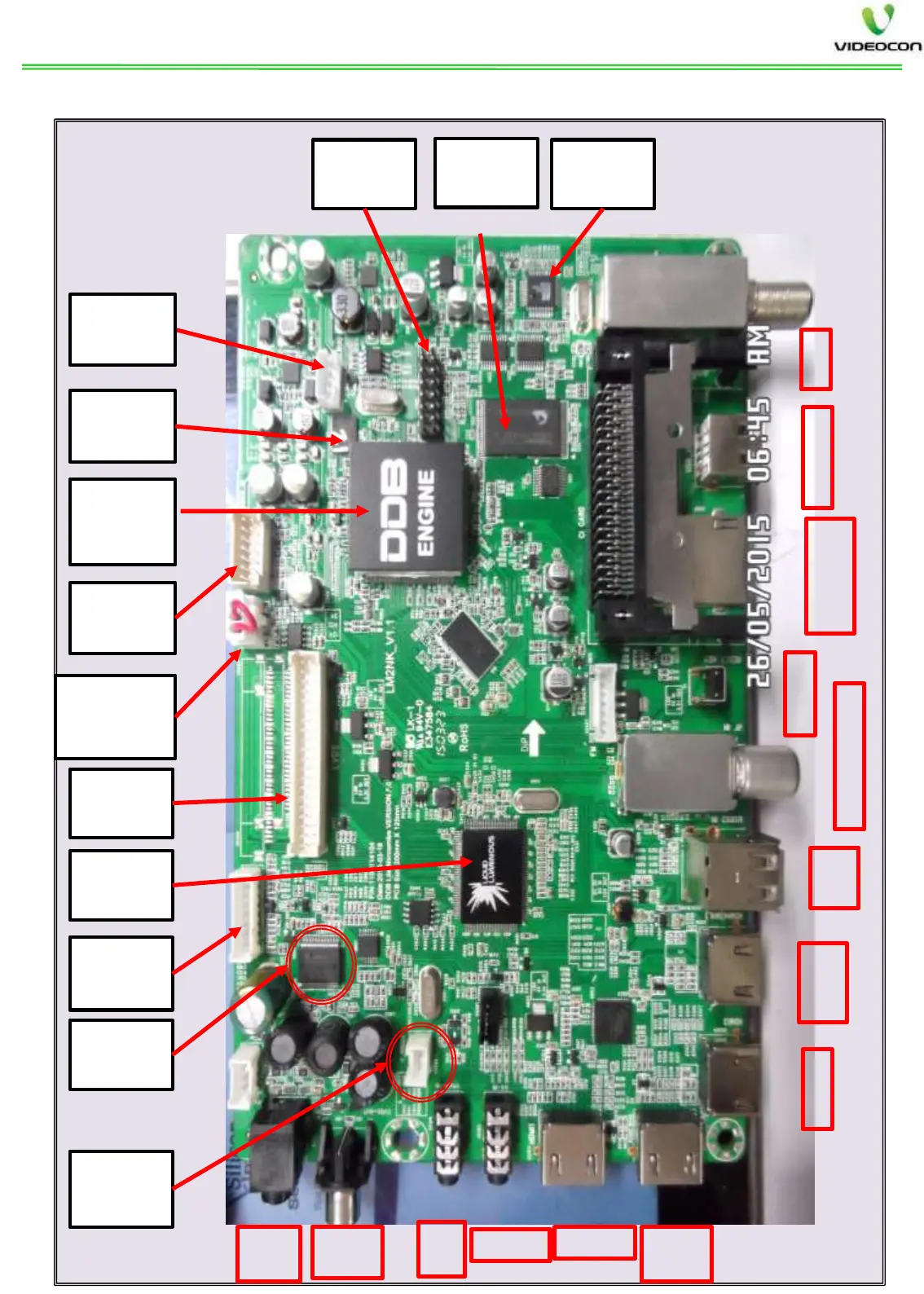

MAIN CHASSIS (ACTUAL PHOTO): -
LVDS
SOCKET
AUDIO IC
STA559
MICON
V59
D2H
DEMOD
PANEL VCC
SELECTION
KEY/IR
CONN.
JTAG
CONN
POWER
INPUT
Smart Card
Slot
USB PVR
HDMI4
MHL
HDMI2
ARC
RESET
Antenna / RF In
IF In
USB
1&2
HDMI3
HDMI1
YPbPr
AV
IN
Video
Out
HP
Out
ATV SW
LOADING
HEADER
D2H NOR
FLASH
D2H
DEBUG
HEADER
D2H
MICON
MST5049
NAND
FLASH
 DDB DLX NON COMBO
