66251315-EN - V
1.0 - 30/06/16
2
Accessories
Art.321 - Art.322 - Installation instructions
Art.321 Transformer 230Vac input, 12Vac 1.3A output, 15VA max
Art.322 Transformer 230Vac input, 12Vac 1.3A output, 18VA max

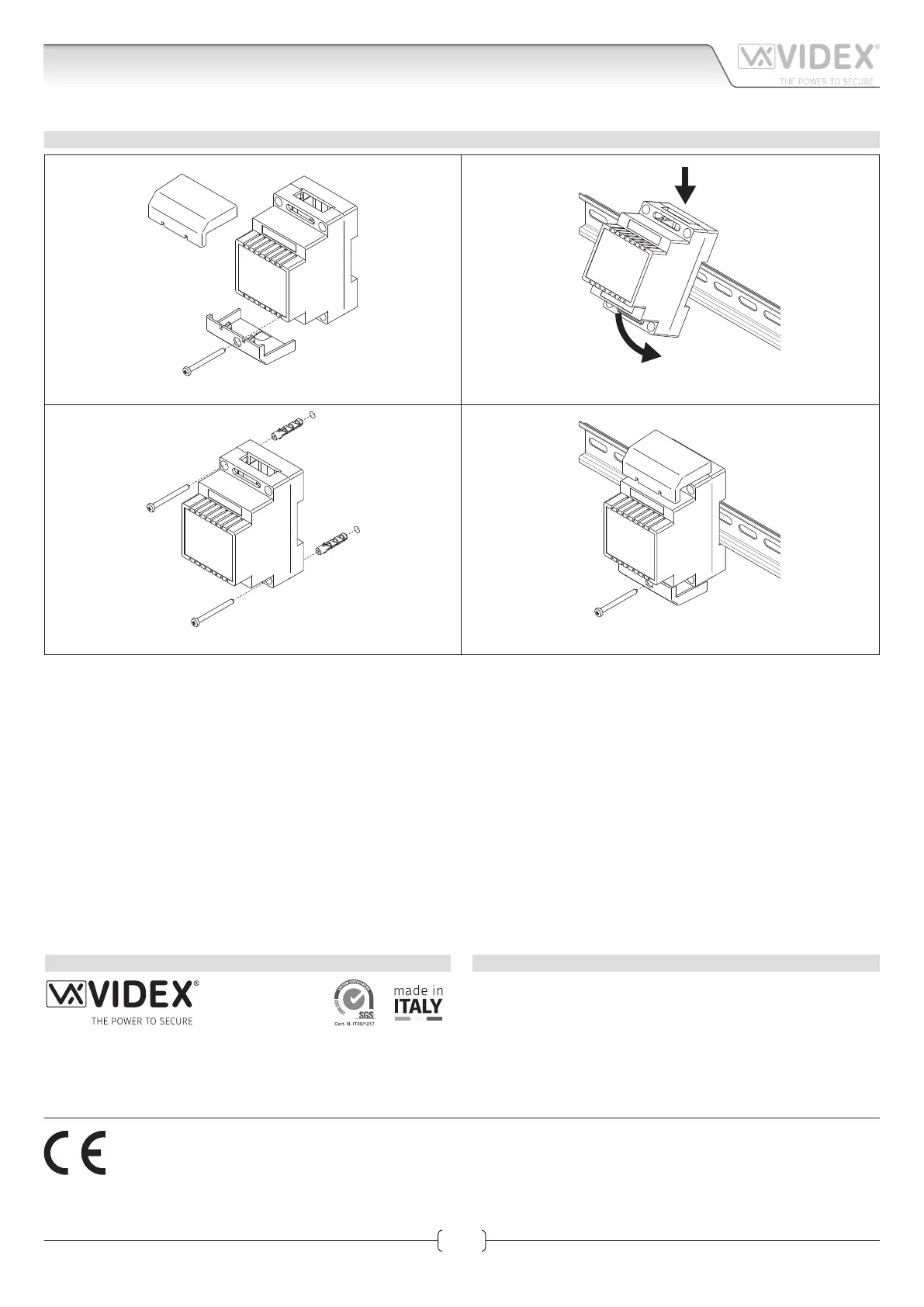

Fig. 1
1
2
Fig. 2
Fig. 3 Fig. 4
Remove the terminal side covers by unscrewing the retaining screws (Fig. 1);
Fix the power supply to a DIN rail (Fig. 2) or directly to the wall using two expansion type screws (Fig. 3);
3. Isolate the mains using the circuit breaker mentioned above then make the connections as shown on the installation diagrams
(if provided);
Check all connections and secure the wires into the terminals;
When all connections are made replace and x the terminal covers with the relevant screws (Fig. 4);
Restore the mains.
CUSTOMER SUPPORTMANUFACTURER
All Countries:
VIDEX ELECTRONICS S.P.A.
www.videx.it - technical@videx.it
Tel: +39 0734-631669 - Fax: +39 0734-632475
VIDEX ELECTRONICS S.P.A.
Via del Lavoro, 1 - 63846 Monte Giberto (FM) Italy
Tel (+39) 0734 631669 - Fax (+39) 0734 632475
www.videx.it - info@videx.it
UK Customers:
VIDEX SECURITY LTD
www.videx-security.com
Tech Line: 0191 224 3174 - Fax: 0191 224 1559
The product is CE marked demonstrating its conformity and is for distribution
within all member states of the EU with no restrictions. This product follows
the provisions of the European Directives 2014/30/EU (EMC); 2014/35/EU
(LVD); 2011/65/EU (RoHS): CE marking 93/68/EEC.
