Please note
Ensure the specified minimum
lengths above the roof are
observed.
Never trim roof outlets above
the roof.
■ Install pipe outlets for Klöber roof
tiles, universal roof tiles or flat roof
collars in accordance with manufac-
turer's instructions.
■ Integrate the flat roof collar into the
roof skin according to the flat roof
guidelines.
■ Ceiling/roof penetration (min. diame-
ter):
– 105 mm (system size 60)
– 130 mm (system size 80)
– 160 mm (system size 100).

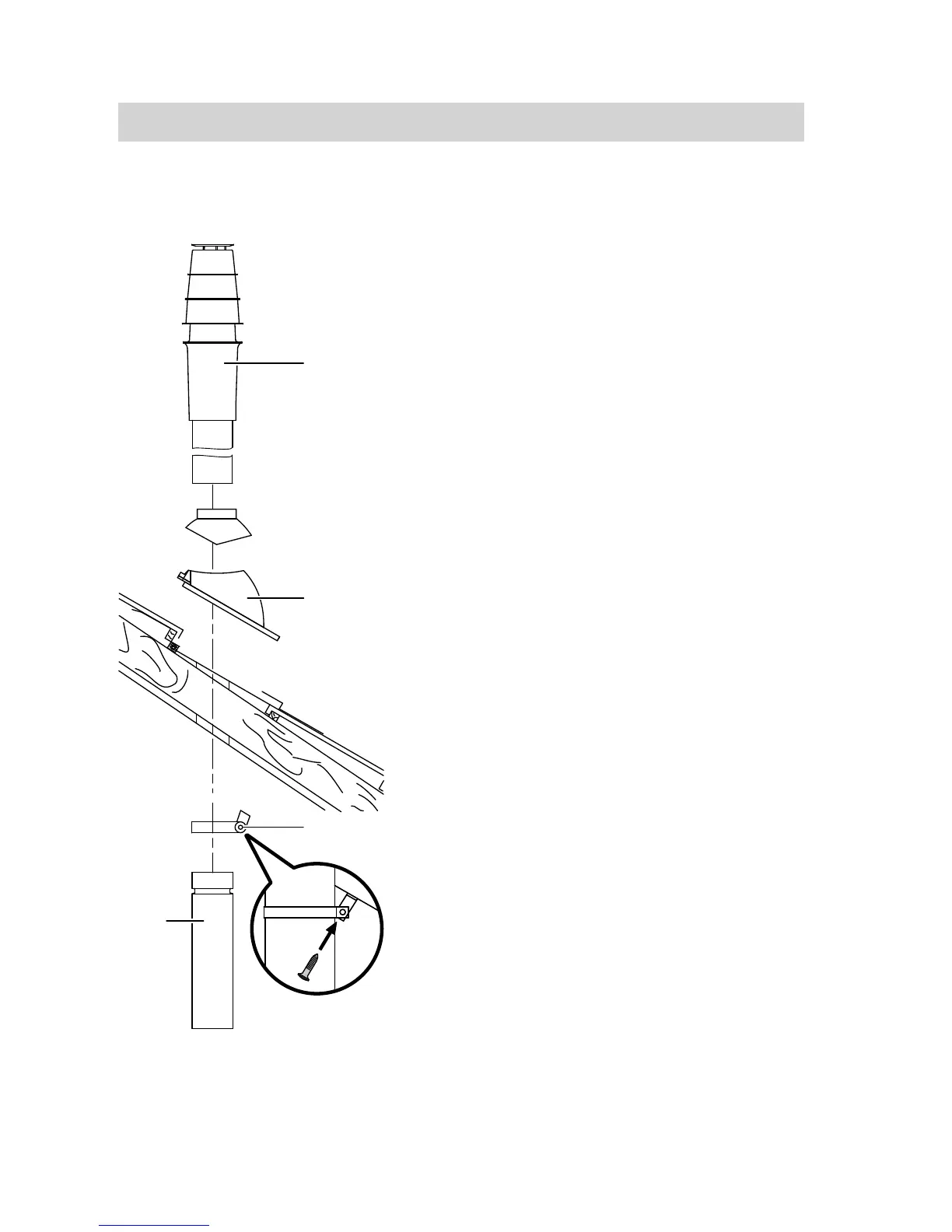

■ Secure the roof outlet to the roof
structure with a clamp only after
installation has been completed.
■ Position the roof outlet on the roof
tiles or flat roof collar from above.
■ Connect the balanced flue connec-
tion pipe from below.
Vertical outlet for pitched or flat roofs
(cont.)
5780 223 GB
