ViewSonic CD5233 User Manual

RESOLUTIONS 640 x 480 at 60 Hz to 85 Hz
SUPPORTED 800 x 600 at 50 Hz, 60Hz to 85 Hz
1024 x 768 at 50 Hz, 60Hz to 85 Hz
1280 x 768 at 50 Hz, 60Hz to 85 Hz
1360 x 768 at 50 Hz, 60Hz to 85 Hz
1280 x 1024 at 60Hz to 85 Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60Hz (recommended resolution)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i,480p,720p,1080i,1080p
For more product information, visit us on the web at ViewSonic.com
Sales: (888) 881-8781 • SalesInfo@ViewSonic.com • ViewSonic.com
Specications and availability subject to change without notice. Selection, offers and programs may vary by country; see
your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of their
respective companies. Copyright © 2010 ViewSonic Corporation. All rights reserved. [15142-01B-09/10] CD5233-1
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.
C D 5 2 3 3
LCD Type 52" color TFT active matrix, wide LCD
Display Area 45.3" horizontal x 25.5" vertical; 51.9" diagonal
Optimum Resolution 1920x1080, 600mm dot pitch
Contrast Ratio 4000:1 (typ)
Viewing Angles 178º horizontal, 178º vertical
Response Time 8ms
Light Source Long life, 50,000 hrs. (typ)
Brightness 700 cd/m2 (typ)
Aspect Ratio 16:9
Panel Surface Anti-glare, hard coating (3H)
INPUT Video Input HDMI, DVI, component, VGA
Video Output VGA, component, DVI
Control Input/Output RS-232
AUDIO OUTPUT Amplier 7-watt / 8 ohm
INPUT SIGNAL TV/Video Comp. 480i, 480p, 720p, 1080i, 1080p
CONNECTOR Analog 15-pin mini D-sub (VGA)
Digital HDMI, DVI
Power 3-pin plug
POWER Voltage AC 100–240V (universal), 50–60Hz
Consumption 360W (typ)
CONTROLS Panel Power, Exit, +, –, Menu/Enter
Picture Picture mode, contrast, brightness, color temperature,
temperature adjust, sharpness
VGA Setting Auto adjustment, clock, phase, sharpness,
H. position, V. position
OSD Setting Languages, OSD H. position, OSD V. position, OSD timer
Input VGA, DVI, HDMI, YPbPr
Audio Volume, mute, audio source
Special Aspect ratio, over scan, power save, image retention,
auto adjustment, monitor ID, reset
Diagnostic Thermal, back light, ambient, 5V detect, 12 detect
OPERATING Temperature (landscape) 32–104ºF (0–40ºC)
CONDITIONS Temperature (portrait) 41–95ºF (5–35ºC)
Humidity 20–80% (non-condensing)
DIMENSIONS Physical with stand (optional) 47.3" x 29.4" x 8.0" (1201.4mm x 746.8mm x 203.2mm)
(W x H x D) Physical without stand 47.3" x 27.4" x 4.8" (1201.4mm x 696.0mm x 121.9mm)
WEIGHT Net with stand (optional) 88.9 lb. (40.3 kg)
Net without stand 83.8 lb. (38.0 kg)
Gross without stand 99.21 lb. (45.0 kg)
WALL MOUNT VESA 200mm x 400mm, 400mm x 400mm
REGULATIONS FCC, ICES003, UL, cUL, CE, CB, ENERGY STAR
®
RECYCLE/DISPOSAL The lamp in this product contains mercury. Please
dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS LCD display, power cable, remote control with batteries,
User Guide CD
WARRANTY Three-year limited warranty on parts, labor and backlight

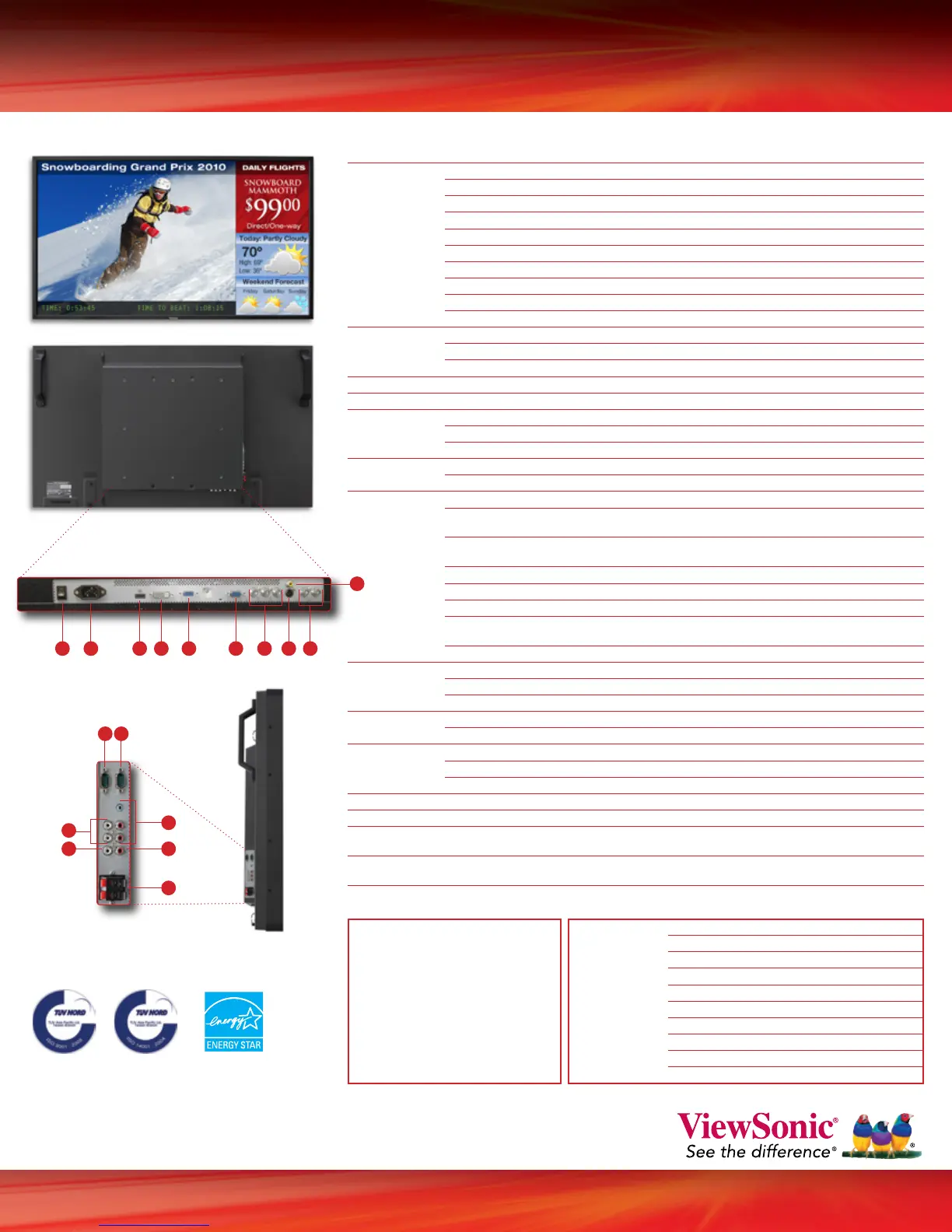

52" SLIM BEZEL FULL HD 1080P
COMMERCIAL LCD DISPLAY
2 3 4 5 6 7 8 9
10
1. Power Switch
2. AC IN
3. HDMI IN
4. DVI-D IN
5. PC-A IN
6. RGB OUT
7. Component IN
7. S-video
9. Audio IN
11 12
13
14
15
17
16
10. PC Audio
11. RS-232 OUT
12. RS-232 IN
13. Audio IN
14. Audio OUT
15. External
Speaker Terminal
16. Audio OUT
17. Audio IN
1

ViewSonic CD5233 Specifications

General

Brand	ViewSonic
Model	CD5233
Category	Monitor
Language	English
