ViewSonic va1938wa-led User Manual

ViewSonic VA1938wa-LED 10

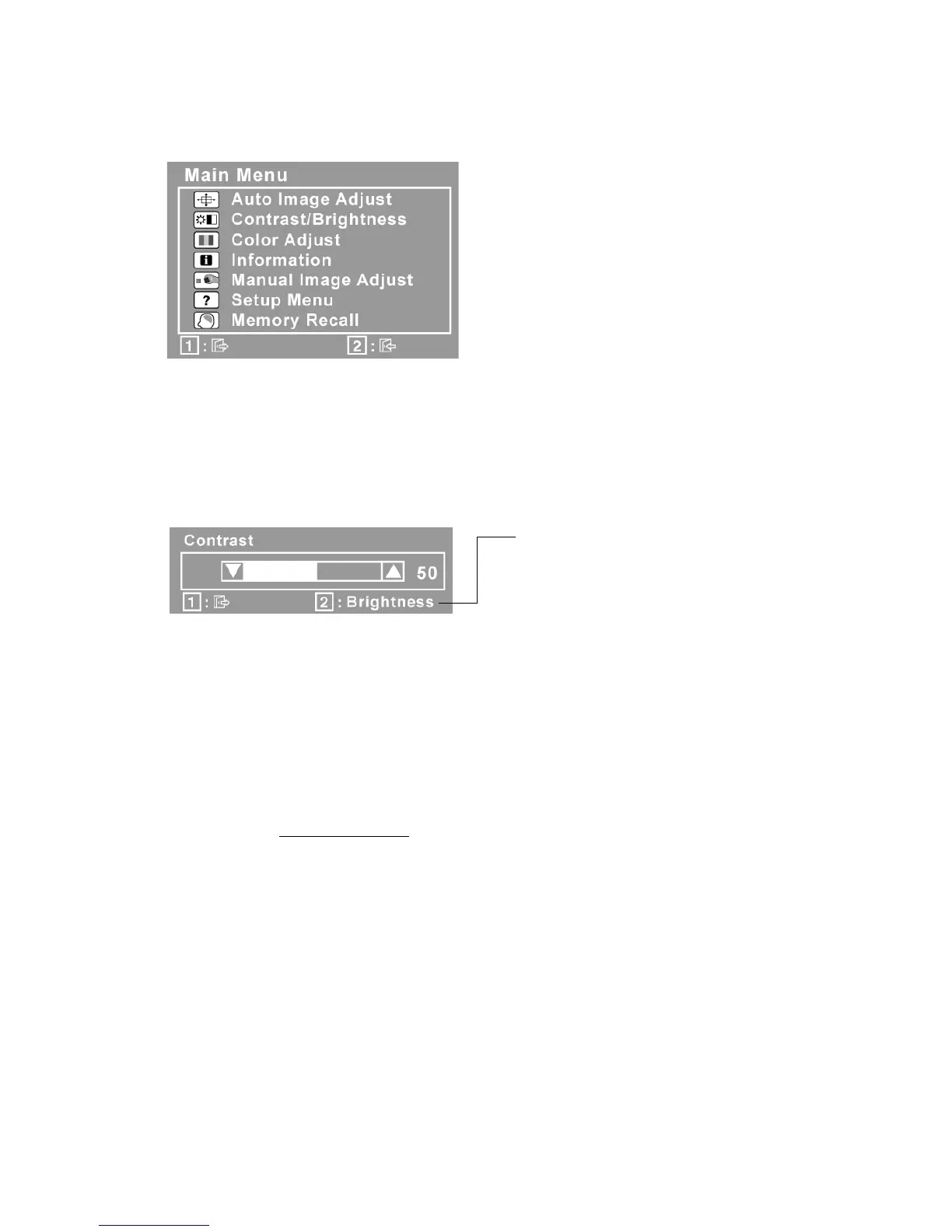

Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after about 15
seconds. This is adjustable through the OSD timeout setting in the setup menu.
2. To select a control to adjust, pressSorTto scroll up or down in the Main Menu.
3. After the desired control is selected, press button [2]. A control screen like the one shown
below appears.
4. To adjust the control, press the up S or down T buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
• Adjust the computer's graphics card so that it outputs a 1366 x 768 @ 60Hz video signal to
the LCD display. (Look for instructions on “changing the refresh rate” in the graphics card's
user guide.)
• If necessary, make small adjustments using H. POSITION and V. POSITION until the
screen image is completely visible. (The black border around the edge of the screen should
barely touch the illuminated “active area” of the LCD display.)
The line at the bottom of the screen shows
the current functions of buttons 1 and 2:
Exit or select the Brightness control.

ViewSonic va1938wa-led Specifications

General

Color	black
Tiltable	yes
Touch Screen	no
Webcam	no
OS Compatibility	windows, mac
Screen Size	18.5 inches
Aspect Ratio	16:9
Resolution	1366 x 768
Native Resolution	1366 x 768
Refresh Rate	75hz
Horizontal Viewing Angle	170 degrees
Vertical Viewing Angle	160 degrees
Response Time	5 milliseconds
Brightness	250 candela per square meter
Contrast Ratio	10, 000, 000:1
Horizontal Scan Rate	82 kilohertz
Built-In Speakers	no
Power Consumption	18 watts
Depth with Stand	7.1 inches
Width with Stand	17.3 inches
Net Weight without Stand	5.9 pounds
