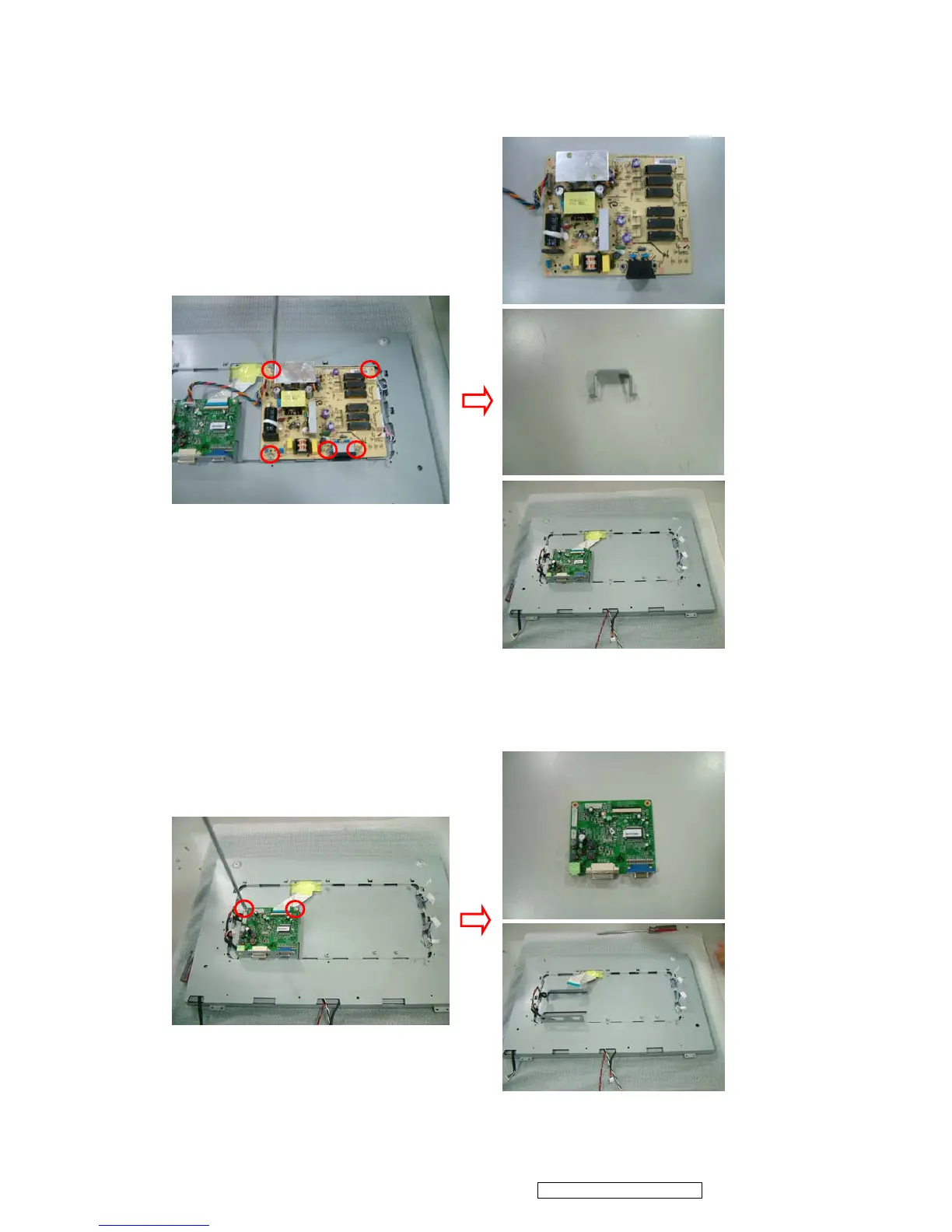

3.2. Unscrew 5 screws and disconnect the wires to remove Power Board.
3.3. Unscrew 2 screws and disconnect the wires to remove Main Board.
Main Board
Power Board
34
ViewSonic Corporation Confidential - Do Not Copy VG2030wm-1
