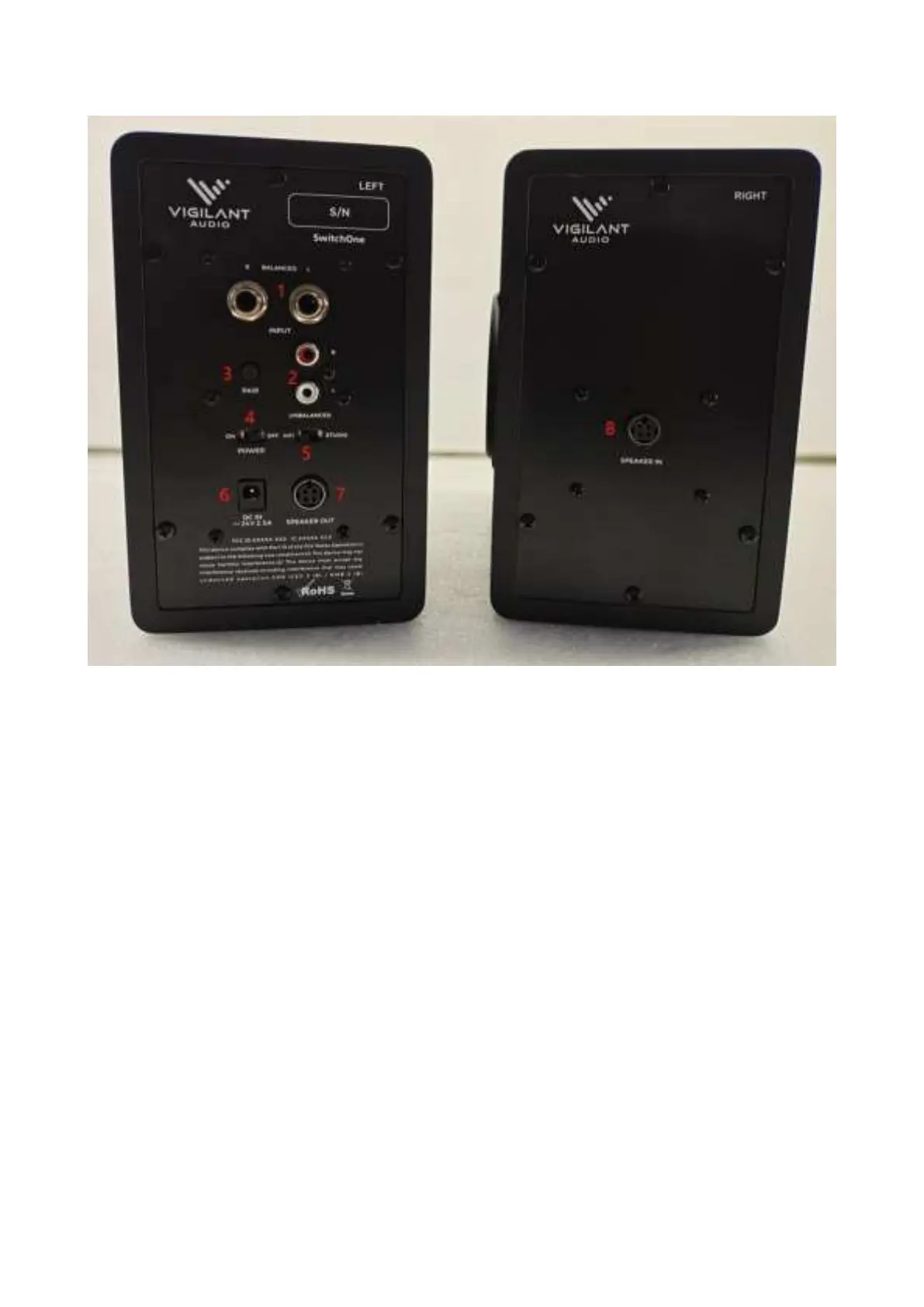

Rear view
Master Speaker
1. TRS Input: This jack accepts 1/4” connections with either balanced or unbalanced wiring.
2. RCA Input: This connector accepts line-level signals from audio sources with unbalanced RCA-style
outputs.
3. Bluetooth pair button: Press and hold to pair with a Bluetooth device.
4. Power Switch: Turns the monitor on and off.
5. Mode switch: Hifi or Studio
6. Power Connector: This socket accepts a standard IEC-type power cable.
7. Speaker Output Connector
Slave Speaker
8. Speaker Input Connector
