Installations using FLEX BLOWER (in remote location)
or REMOTE BLOWER only:

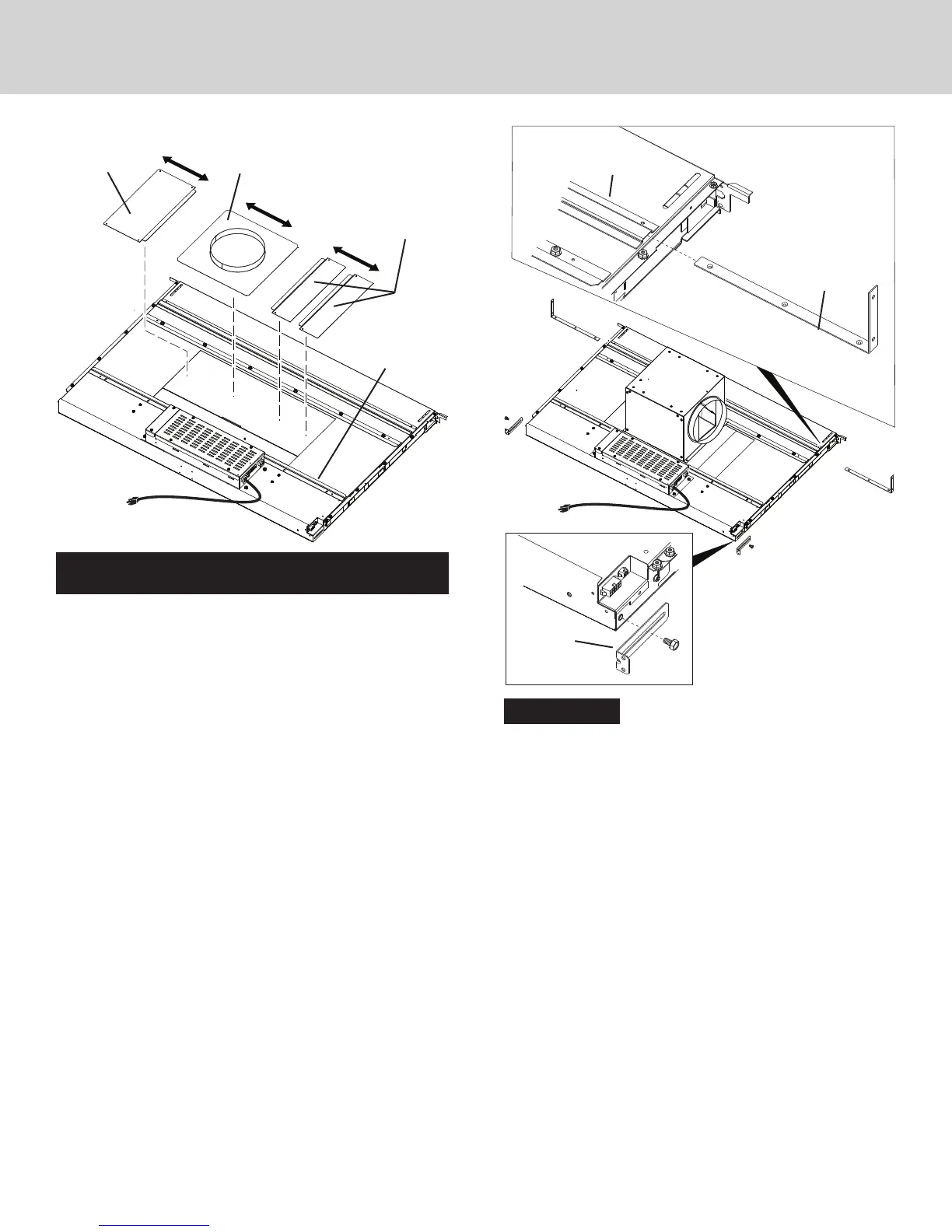

4. Use the REMOTE DISCHARGE PLATE and determine its
location on FRONT PANEL.
Use a combination of COVER PLATES (3" and/or 6" wide) to
close the opening on side(s) of remote discharge plate.
Slide the remote cover plate and cover plates between the
LOWER CHANNEL and the clamp channel. Tighten the hex
nuts to secure the plates in place.
LOWER
CHANNEL
8" OR 10" ROUND
REMOTE DISCHARGE
PLATE (Purchase Separatly)
FRONT
PANEL
All Installations:
5. Slide UPPER SUPPORT BRACKETS into SLIDE CHANNEL at
top left and right of unit.
Attach LONG OR SHORT SUPPORT LEGS (depending upon
cabinet height) to bottom sides of unit with HEX SCREWS
provided. Do not tighten hex screws completely at this time.
UPPER
SUPPORT
BRACKET
SLIDE
CHANNEL
LONG OR
SHORT
SUPPORT
LEGS
HEX
SCREW
Flex Blower
shown
installed.
COVER PLATES
(included with
discharge plate)
COVER PLATE
(included with
discharge plate)
To Next Page
