9

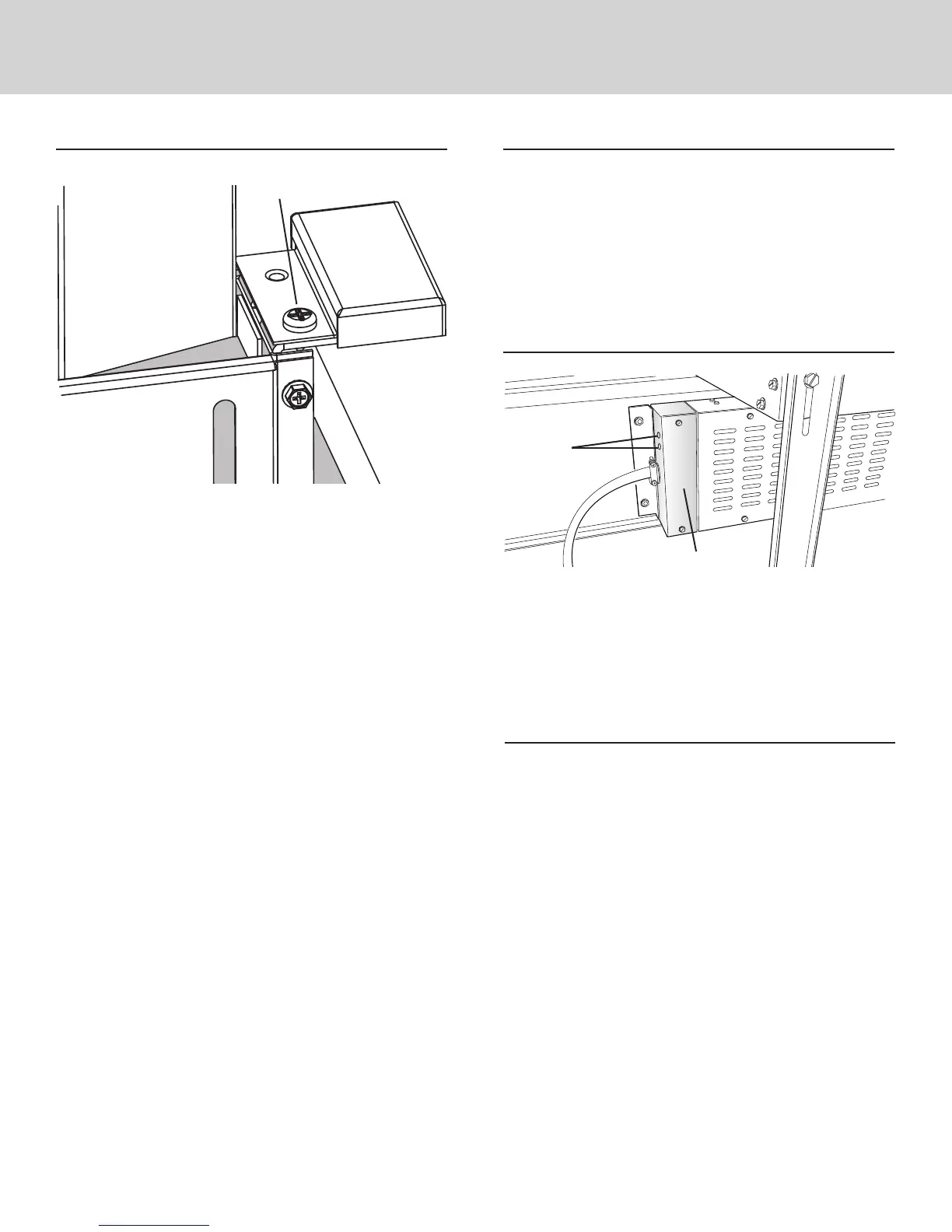

INSTALL FINISH TRIM
1. Raise chimney and attach FINISH TRIM to top/left and top/
right of DOWNDRAFT HOUSING with screw provided.
INSTALL COOKING APPLIANCE
1. Align the cooking appliance with downdraft and fasten
appliance in place following appliance instructions.
Note: Accurate alignment of cooking appliance and downdraft
is necessary to ensure that there is no interference when air vent
is raised and lowered. There should be a gap of 1/32" - 1/16"
between the back of the cooktop and the front of the downdraft
cover.
MAKE-UP AIR DAMPER (OPTIONAL)
Connects to 2 CONTACTS on WIRING BOX.
Compatible with G6MD and G8MDdamper.
MAKE-UP AIR
DAMPER
CONTACTS
WIRING
BOX
FINISH
TRIM
SCREW
COUNTERTOP
CHIMNEY
DOWNDRAFT
HOUSING
Available for application with free-standing range - where gap
is present between back of range and downdraft.
RANGE TRIM KIT (OPTIONAL)
