Viking DDBB536RSS - Installation Clearances; Clearance Dimensions - Professional

REFRIGERATION
Quiet Cool™ Built-In 36”W. Bottom-Mount
Refrigerator/Freezer
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
Door
Wall
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
3/4”
(1.9 cm)
full end panel
24”
(61.0 cm)
standard
c
abinet
depth
2-1/2”
(6.4 cm) offset
5/16”
(0.8 cm)
1
-13/16”
(
4.6 cm)
space if 24” standard
cabinet depth is used
D
oor
24”
(61.0 cm)
standard cabinet depth
W
all
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Countertop
overhang
Dimensions & Specifications

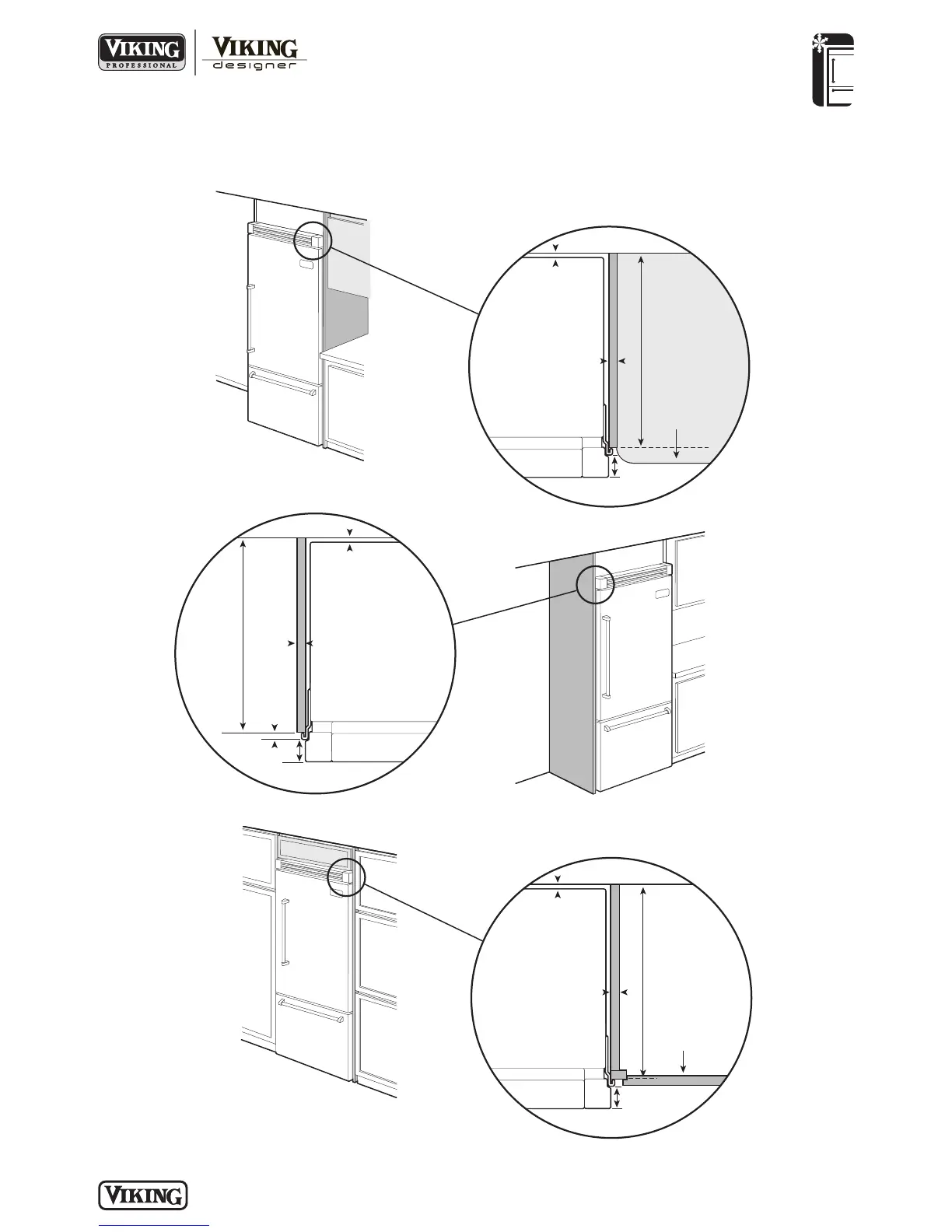

CLEARANCE DIMENSIONS—PROFESSIONAL
1-13/16”
(4.6 cm)
space if 24” standard
cabinet depth is used
Door
24”
(61.0 cm)
standard cabinet depth
Wall
3/4”
(1.9 cm)
full end panel
2-1/2”
(6.4 cm) offset
Partial overlay
cabinet door
TOP VIEW
TOP VIEW
TOP VIEW
