Viking DDSB423 - Professional Integrated;Designer Clearance Dimensions

REFRIGERATION
Built-In 42”W. Side-By-Side
Refrigerator/Freezer
PLANNING AND DESIGN GUIDE
VIKINGRANGE.COM • 1-888-VIKING1
RELEASED 12/1/07
©2007 VRC—INFORMATION SUBJECT TO CHANGE
Dimensions & Specifications

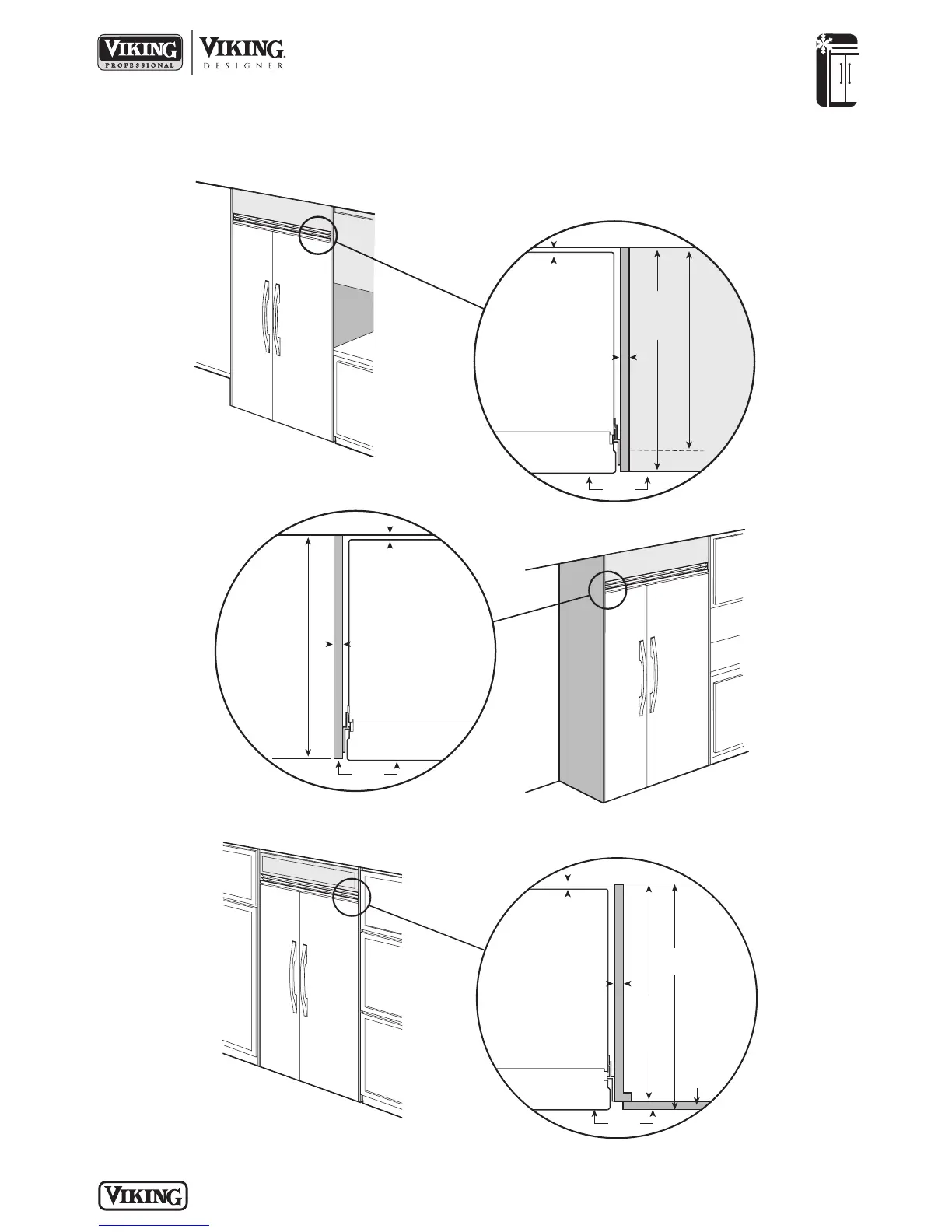

CLEARANCE DIMENSIONS—PROFESSIONAL INTEGRATED/DESIGNER
Door
Wall
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
3/4”
(1.9 cm)
full end panel
25”
(63.5 cm)
Flush
Door
24”
(61.0 cm)
standard
cabinet depth
25”
(63.5 cm)
countertop
depth
Wall
3/4”
(1.9 cm)
full end panel
1”
(2.5 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Door
24”
(61.0 cm)
standard
cabinet
depth
24-3/4”
(62.9 cm)
Wall
3/4”
(1.9 cm)
full end panel
3/4”
(1.9 cm)
if 25” (63.5 cm)
cabinet depth is used
Flush
Cabinet
door
TOP VIEW
TOP VIEW
TOP VIEW
Overlapping cabinet doors
