Vimar Eikon 20195 Installer Manual

11

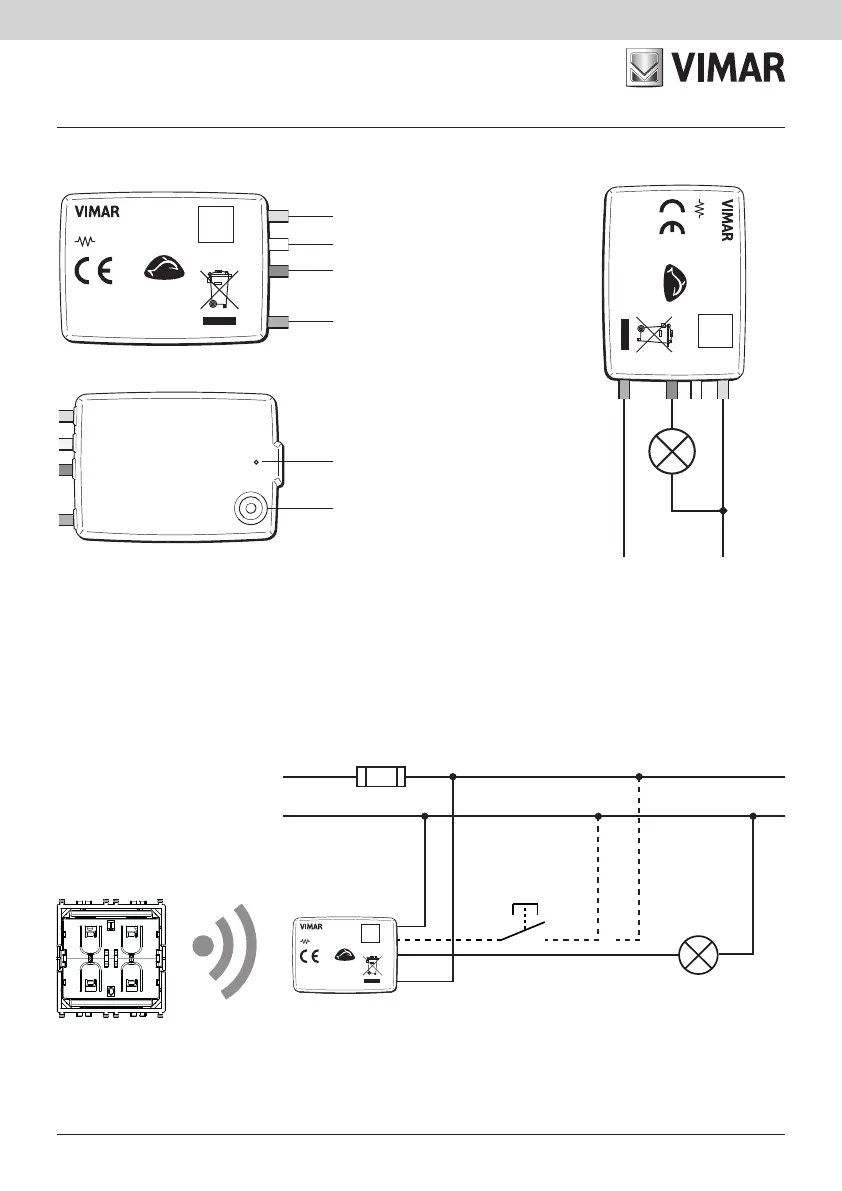

EnOcean multi-function 1-relay actuator (01796.1)
FRONT AND BACK VIEW CONNECTIONS TO THE LOAD
RGB LED
Connection to the load
Neutral
Line
NL
Switch connection
Touch button
01796.1
8A
VIMAR SPA
VIALE VICENZA 14
36063 MAROSTICA VI
ITALY
L 1 P N
µ
enocean
50/60 Hz 230V~
®
01796.1
8A
VIMAR SPA VIALE VICENZA 14 36063 MAROSTICA VI ITALY
L 1 P N
µ
enocean
50/60 Hz
230V~
®
CONNECTION WITH A TRADITIONAL PUSH BUTTON
The actuator 01796.1 can be connected to a traditional push button to control the load from a second point (in addition to
the radio control 20505)
L
N
01796.1
8A
VIMAR SPA
VIALE VICENZA 14
36063 MAROSTICA VI
ITALY
L 1 P N
µ
enocean
50/60 Hz 230V~
®
20505
01796.1
Fuse 10 A
N or L
