11
EN
Art. 1220
Art. 1258
R693

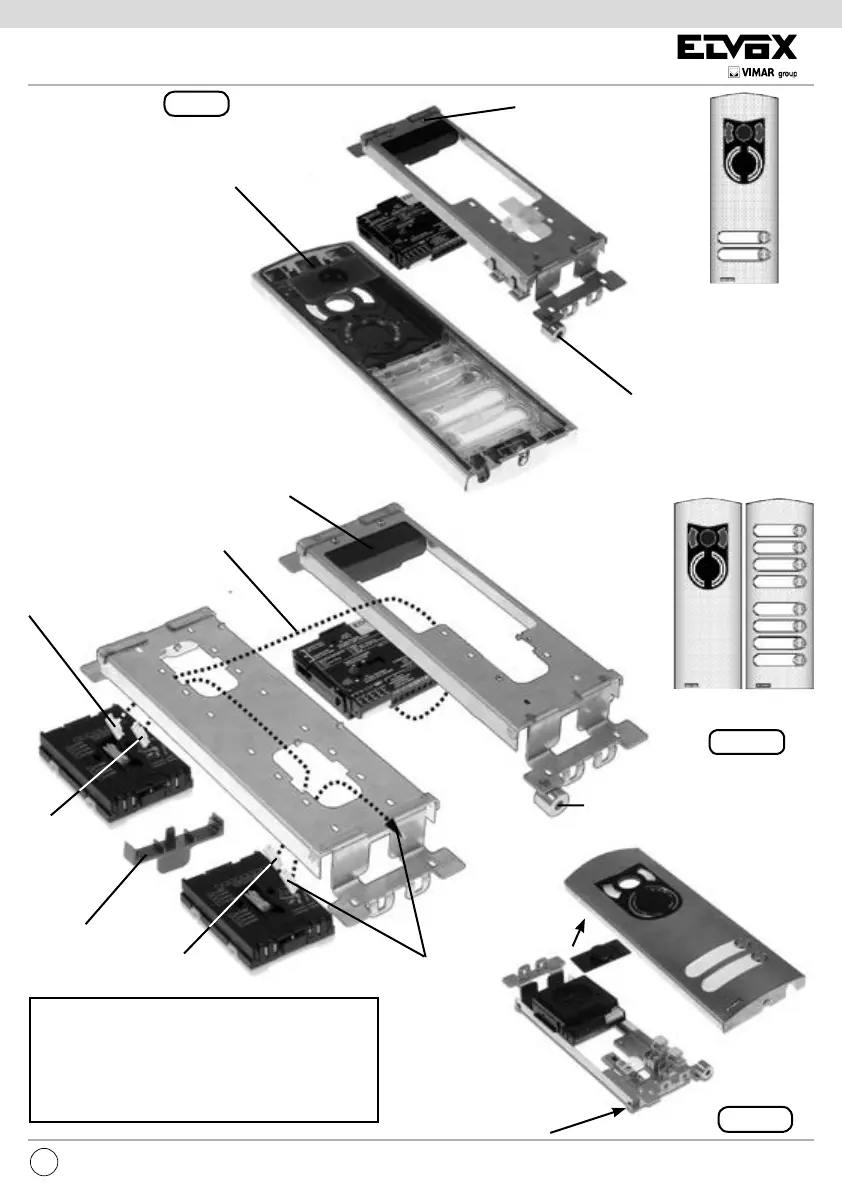

Fig. 7
Fig. 7A
Art. 1222
Fig. 7B
ART. 264
Cover closing
the lens
Insertion of microphone
type 6931 (see instructions
instructions for entrance pa-
nels series 1200)
Bracket with xing screws
for speech unit
Bracket with fixing
screws for speech unit
Cable CN10 to module
type 12TS
Cable CN10 from speech
unit type 6931
Additional
module
type 12TS
From module
type 12TS
Other additional
module type 12TS
In a 1200 series entrance panel for a congura-
tion with more than 2 push-buttons, speech unit
type 6931 is tted in an audio/video plate without
push-buttons type 1220 by coupling one or more
additional plates with push-buttons type 125x for
the installation of additional modules with 4 pu-
sh-buttons type 12TS.
Insertion of microphone type 6931
(see instructions instructions for en-
trance panels series 1200)
