3
EN
AREA PER SERIGRAFIA
FONDO POSTO ESTERNO
CONNETTORE
PER ART. 950C
CONNECTOR
FOR TYPE 950C
VOLUME INTERNO
INTERNAL UNIT VOLUME
TEMPO ATTIVAZIONE
ACTIVATION TIME
VOLUME ESTERNO
SPEECH UNIT VOLUME
PULSANTI
SUPPLEMENTARI
ADDITIONAL
PUSH-BUTTONS
A B C
TERMINAZIONE
BUS
BUS
TERMINATION
1
7
ART. / TYPE
6931
ID
4 3 2 1
FON.693.10S
RL 00 - 6/2009
(il fondo non serigrafato è STA.546.003)
Il disegno è rappresentato in negativo, la versione
definitiva è bianco su fondo nero.
M VL M CA B2 B1 S- S+
Serigrafia per morsetti.
44 mm
1 - Microfono / Microphone
2 - CH2
3 - Occupato / Busy
4 - CH1
5 - Video
6 - Alim. LED / LED power
7 - Alim. interna LED / Internal power for LED
8 - Reset
2 3456
R
Made in Italy
DC 28V INT 6W
8

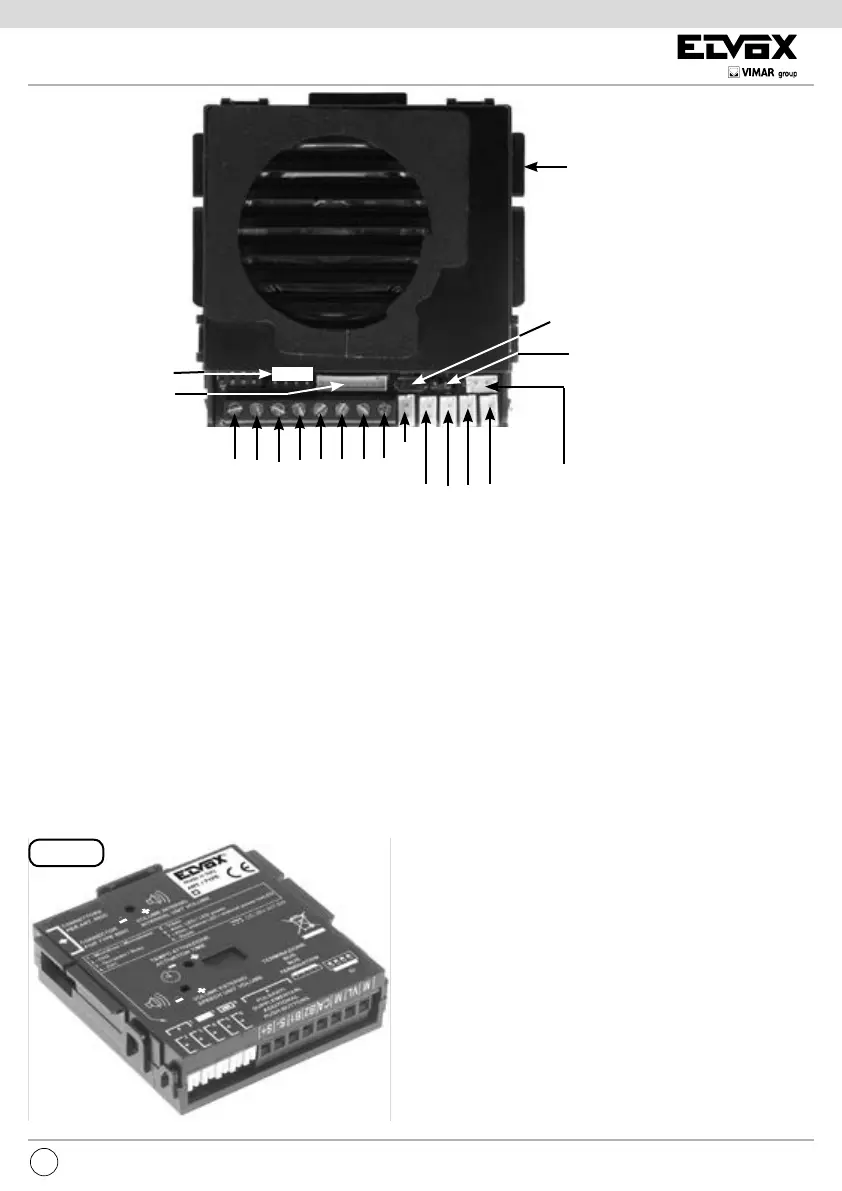

Fig. 1
C3.1 Microphone
Speech unit adjustments
External volume
Speech unit activation time
Internal volume
The settings are printed on the back of the speech unit (see Fig. 1)
M
VL
CN10
C B A
CN9
Connector
for
Art. 950C or
Art. 692I or
Art. 692I/U
M CA
B2 B1 S-
S+
C3.5 Video
C3.2- CH2
C3.3 Wait/busy
C3.4 - CH1
C3.6 Internal LED power supply
RESET
Speech unit terminals
M VL GROUND
VL POWER SUPPLY OF LEDS FOR SUPPLEMENTARY MODULES
M GROUND
CA DOOR LOCK COMMAND (CONNECT TO “M”)
B2 2-WIRE BUS
B1 2-WIRE BUS
S- LOCK OUTPUT
S+ LOCK OUTPUT
The speech unit gives a current peak IT> 1A for 10 mS after which there follows a holding current I
M
= 200mA for the entire
duration of the lock command (see lock time).
LED supply
voltage for
additional
modules
C3.2- C3.4
