39
MODELS KP-24 and KP-30

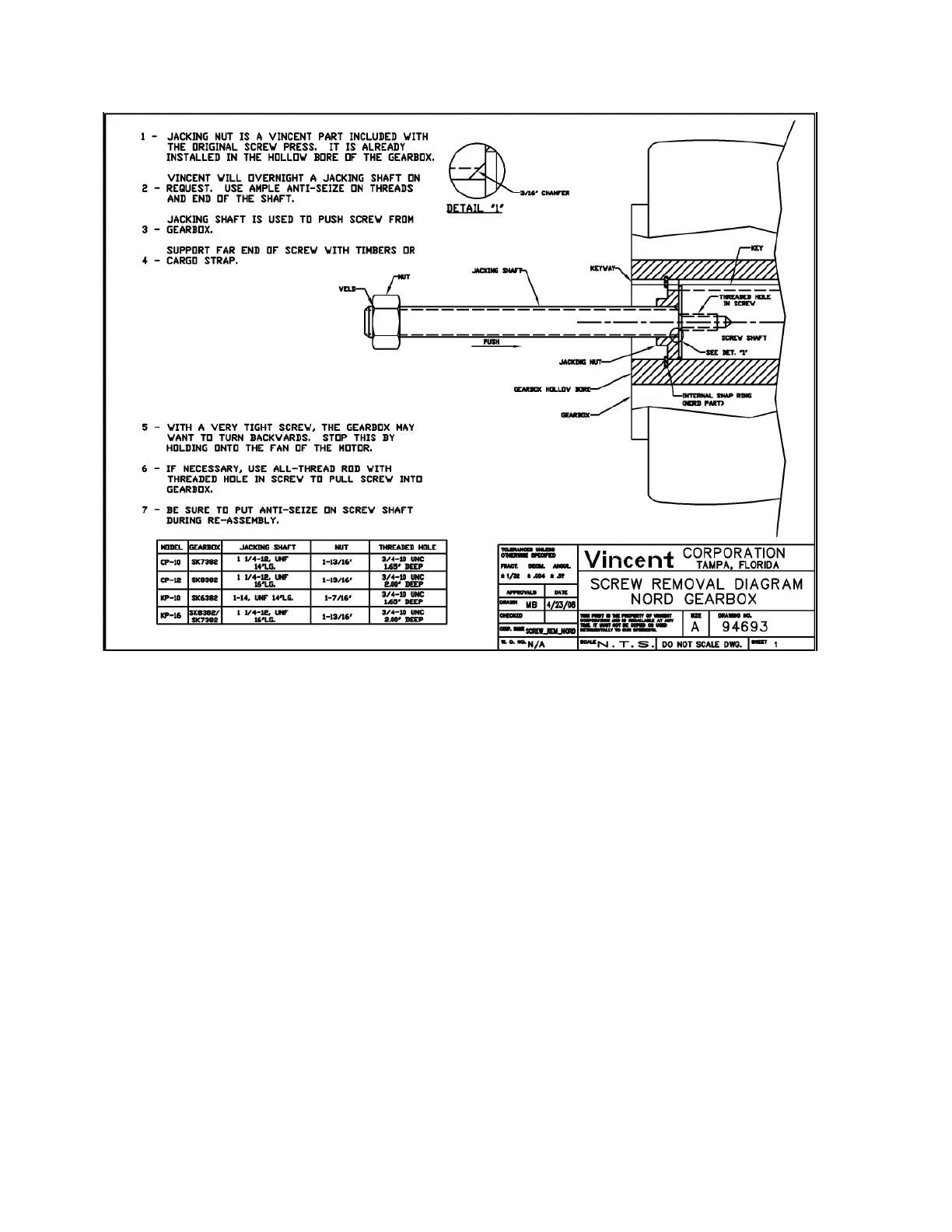

Model KP-24 and KP-30 presses use a rigid coupling between the gearbox and the
screw. The bolts of these coupling have an extremely high torque requirement.
The bars with the resistor teeth must be removed before the screw can be
removed.
The flange bearing is mounted on a circular plate which also holds the air cylinders.
Do not remove the flange bearing by itself. Instead, leave it on the round plate and
remove the air cylinders and bearing as a single unit.
