IDENTIFY
IDENTIFYIDENTIFY
IDENTIFY
BARRIER
BARRIER BARRIER
BARRIER
PARTS
PARTSPARTS
PARTS
BA
BB
BD
BC
BP
BARRIER
PICKETS
5 PIECES

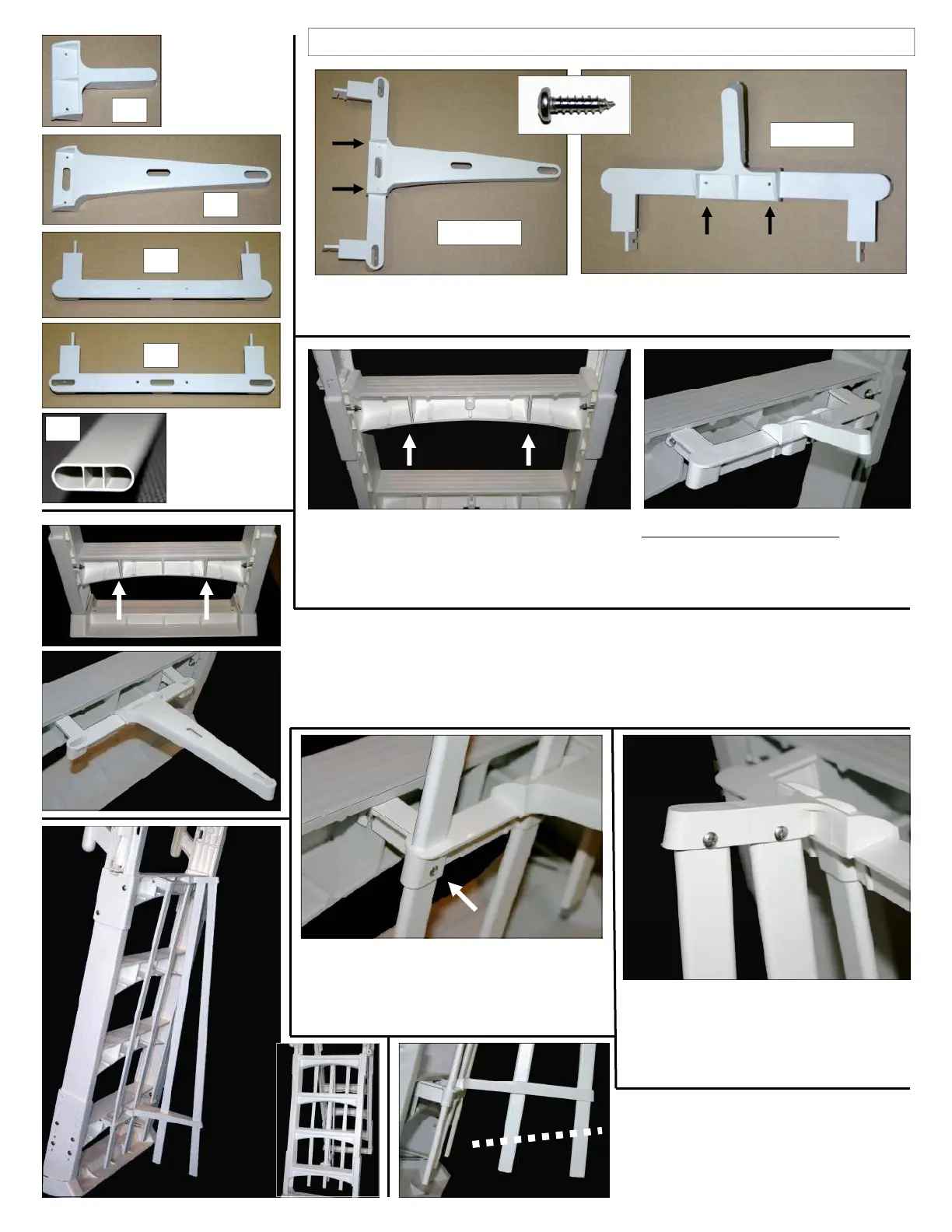

MODEL SLA / SLI - ANTI-ENTRAPMENT BARRIER INSTRUCTION
1. Fit parts together ( BA + BC & BB + BD ), align small screw holes
and secure with 1/2" barrier screws as shown above
BA + BC
BB + BD
2. Fit sub-assembled BA+BC to back of in
inin
in-
--
-pool ladder section F
pool ladder section Fpool ladder section F
pool ladder section F, behind
top ladder tread/rung. The extended screw tabs on Part BC fit on the
outside of the strengthening ribs of the tread/rung. Slide to top of ribs
and secure in place using a 1/2" screw on both left & right sides.
3. Similar to step 2 above, fit sub-assembled BB+BD to back of in-pool
ladder section F, behind bottom ladder tread/rung. The extended screw
tabs on Part BD fit on the outside of the strengthening ribs of the tread/
rung. Slide to top of ribs and secure in place using a 1/2" screw on both
left & right sides
4. Fit 3 barrier pickets through slots
in BB+BD at bottom & slide up into
slots of BA+BC and secure all with
1/2" screws as shown by arrow
5. Fit 2 barrier pickets through
slots in BB at bottom & slide up
into slots of BA and secure both
with 1/2" screws as shown
6. Trim bottom of barrier pickets if
required as not to damage pool
liner. Leave space between
pickets and liner (6" maximum).
