VPC MONGOOST-50® BASE
QUICK START GUIDE
VPC MONGOOST-50® BASE

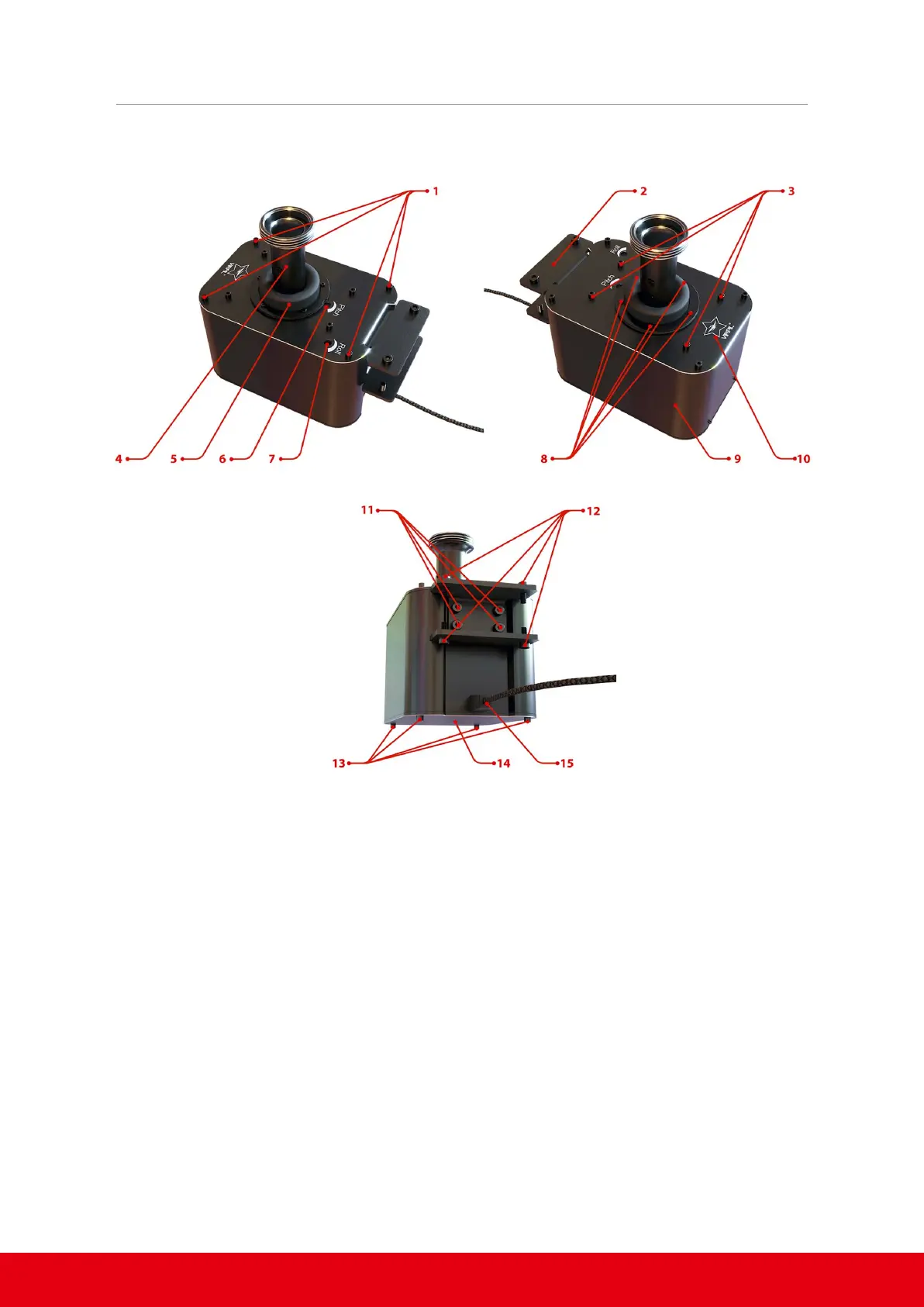

FIGURE 1


1. 4 x M4 Screws - Affixing upper plate to base exterior.
2. U-Bracket for attaching to the VPC Desk Mount or other mouthing method.
3. 4 x M4 Screws - Affixing upper plate to gimbal structure.
4. Grip stem with screw-thread connector and Mini DIN 5 Pin connector.
5. Rubber boot for dust protection.
6. Access port for adjusting the “Pitch” (Y) axis loading force.
7. Access port for adjusting the “Roll” (X) axis loading force.
8. 5 x M3 Screws - Affixing rubber boot to upper plate.
9. Base exterior housing.
10. Upper plate.
11. 4 x M5 Screws - Affixing U-Bracket to base exterior and gimbal structure.
12. 4 x M5 Screws - Affixing U-Bracket to VPC Desk Mount or other mounting solution.
13. 4 x M4 Screws - Affixing lower plate to base exterior.
14. Lower plate.
15. USB 2.0 cable.
