3.7” CG2 LED MINI CANNON
(R1)
(S1) (W3)
(W1)
(W2)
*To Light *To Light
(C2)(C1)
(R2)
(P1)
(W4)

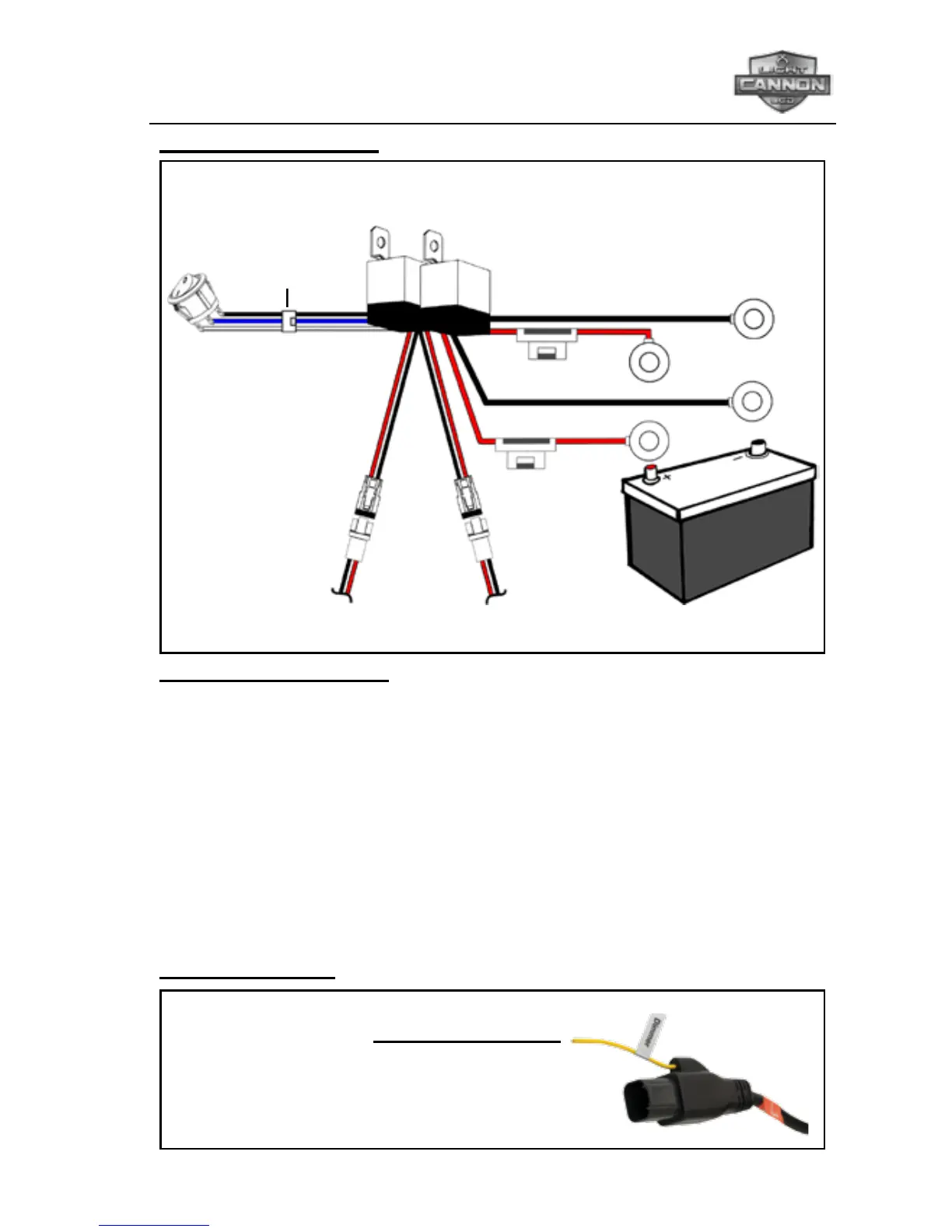

WIRING DIAGRAM:
(-)
(-)
(+)
(+)
TIP: For complete application guide see website
COMPONENTS KEY
Part (R1 & R2) Relay
Part (W1 & W3) Power Wire for Relay Coil
a. 9-32V DC Positive (+) Input Wire
Part (W2 & W4) Ground Wire for Relay Coil
a. 9-32V DC Negative (-) Input Wire
Part (C1 & C2) Deutsch Connectors for Lights
a. Attached to 9-32V DC Positive (+) Power Wires
Part (S1) Switch
Part (P1) Switch Plug
DIMMER WIRE:
Do Not connect
without authorized
accessories.
To Next Page
