16 17
TF40
ONLY
TF20
ONLY

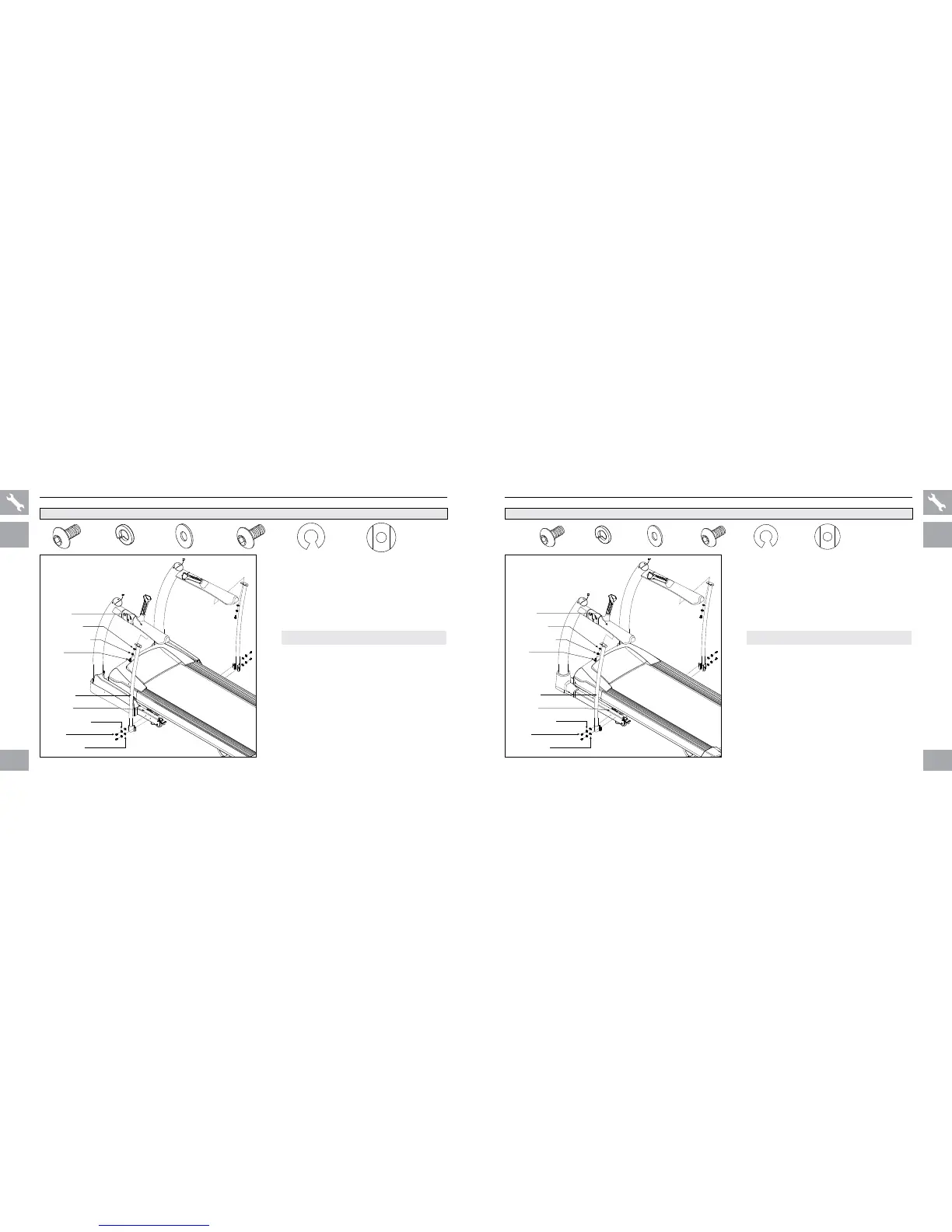

TF40 ASSEMBLY STEP 3
FLAT WASHERS (H)
SPRI NG WASHERS (J)
ARC WASHERS (E)
SPRI NG WASHERS (B)
BASE FRAME
SUPPORT BAR
BOLTS (L)
HANDLE BAR
BOLT (A)
TF40 HARDWARE FOR STEP 3 :
NOTE: This step is for TF40 models only.
A Open hardware for step 3.
B Attach the bottom of the support bar to the
base frame using 2 flat washers (h), 2
spring washers (J) and 2 bolts (l).
C Attach the top of the support bar to the
handlebar using 1 arc washer (e), 1
spring washer (b) and 1 bolt (a).
D Repeat on other side.
BOLT (A)
20 mm
Qty: 2
SPRING
WASHER (B)
8.2 mm
Qty: 2
ARC
WASHER (E)
8.4 mm
Qty: 2
BOLT (L)
20 mm
Qty: 4
SPRING
WASHER (J)
6 mm
Qty: 4
FLAT
WASHER (H)
6 mm
Qty: 4
TF20 ASSEMBLY STEP 3
FLAT WASHERS (H)
SPRI NG WASHERS (J)
ARC WASHERS (E)
SPRI NG WASHERS (B)
BASE FRAME
SUPPORT BAR
BOLTS (L)
HANDLE BAR
BOLT (A)
TF20 HARDWARE FOR STEP 3 :
NOTE: This step is for TF20 models only.
A Open hardware for step 3.
B Attach the bottom of the support bar to the
base frame using 2 flat washers (h), 2
spring washers (J) and 2 bolts (l).
C Attach the top of the support bar to the
handlebar using 1 arc washer (e), 1
spring washer (b) and 1 bolt (a).
D Repeat on other side.
BOLT (A)
20 mm
Qty: 2
SPRI NG
WASHER (B)
8.2 mm
Qty: 2
ARC
WASHER (E)
8,4 mm
Qty: 2
BOLT (L)
20 mm
Qty: 4
SPRI NG
WASHER (J)
6 mm
Qty: 4
FLAT
WASHER (H)
6 mm
Qty: 4
TF40 ONLY TF20 ONLY
NOTE: Do not tighten bolts until step 4 is complete. NOTE: Do not tighten bolts until step 4 is complete.
