1. Introduction
The VIS-3100 / VIS-3101 is a slim Wiegand Output Proximity Reader, compatible with 125KHz EM format card.
The reader is fully potted, and can function at extreme temperatures (-40°~60°C), which allows it is capable to
be mounted either indoor or outdoor.
2. Specifications
Model
VIS-3100 / VIS-3101
Operation Voltage
9~24V DC
Standby Current
≤25mA
Frequency
125KHz
Card Type
EM card
Read Range
Up to 2.75 inches (7cm)
Output Format
26bits Wiegand (default)
(26~37bits available upon request)
Operating Temperature
-40°C~60°C(-40°F~140°F)
Operating Humidity
10% to 95% RH
Color
VIS-3100 (Black) / VIS-3101 (White)
Index of Protection
IP66
Dimension
(H x W x T)
102L x 48An x 20Al (mm)
4.01L x 1.88An x 0.78Al (in.)
Net Weight
100g
Shipment Weight
150g

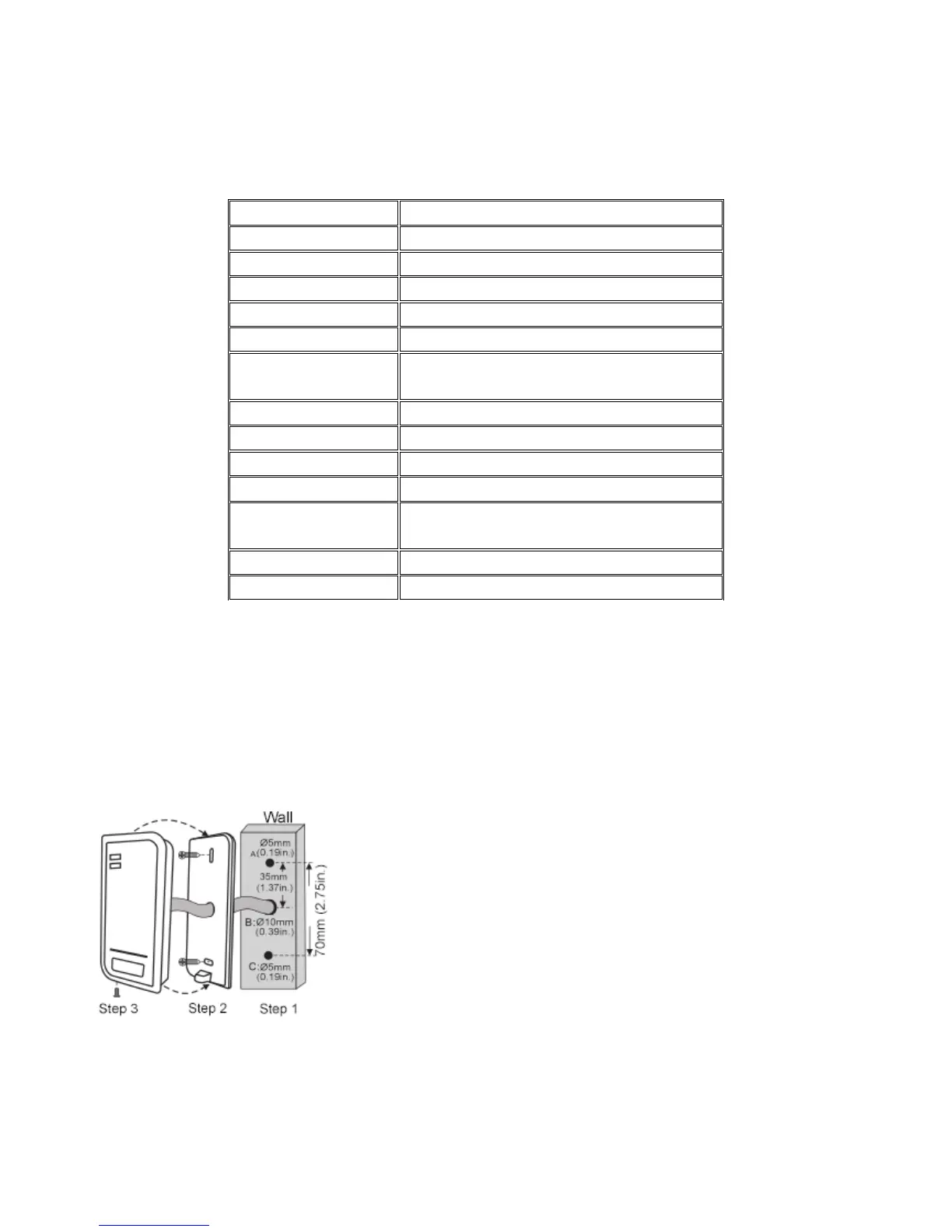

3. Installation
• Drill 2 holes (A, C) on the wall for the screws and one hole for the cable
• Knock the rubber bungs to the holes (A, C)
• Fix the back cover on the wall with 2 screws
• Thread the cable though the cable hole (B)
• Attach the unit to the back cover
