Pre-Installation
5
□
6

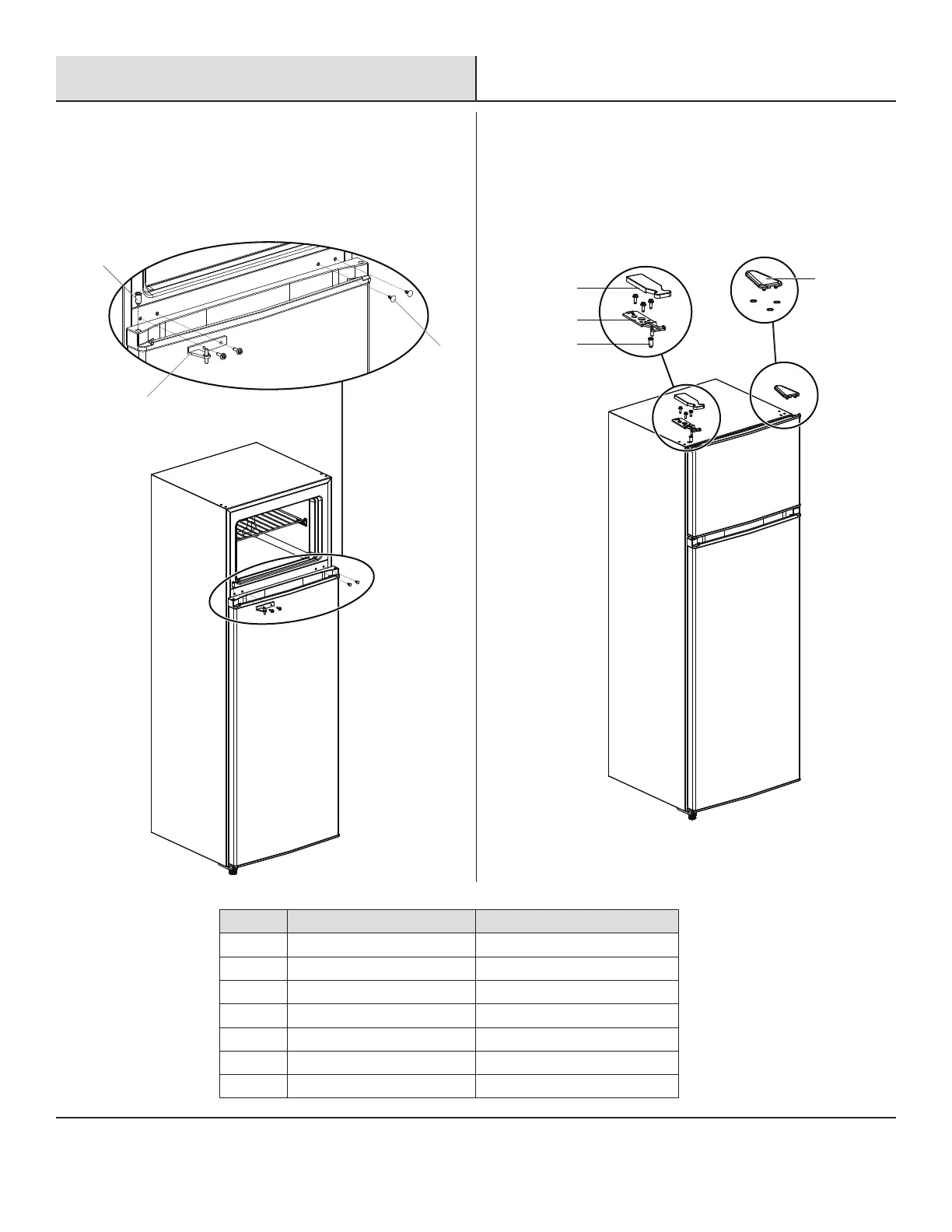

Put the refrigerating door on bottom hinge, assemble the
middle hinge, hole caps and the sleeve pipe of
refrigerating door.
□
Put the freezer door on the middle hinge, assemble the top
hinge, the top hinge cover assemble the sleeve pipe of the
freezer door and hole cap on the other side.
Part Description Quantity
A Hole cap 1
1
1
1
2
1
1
B Hinge cover
C Top hinge
D Sleeve pipe
E Hole caps
F Sleeve pipe
G Middle hinge
F
G
E
A
B
C
D
To Next Page
