Top view
U
2 3/4" #10 RSS (T25 TORX)106X
Step 18
0515 Cypress - Bélinda 14x14 Instructions V1.1 EN

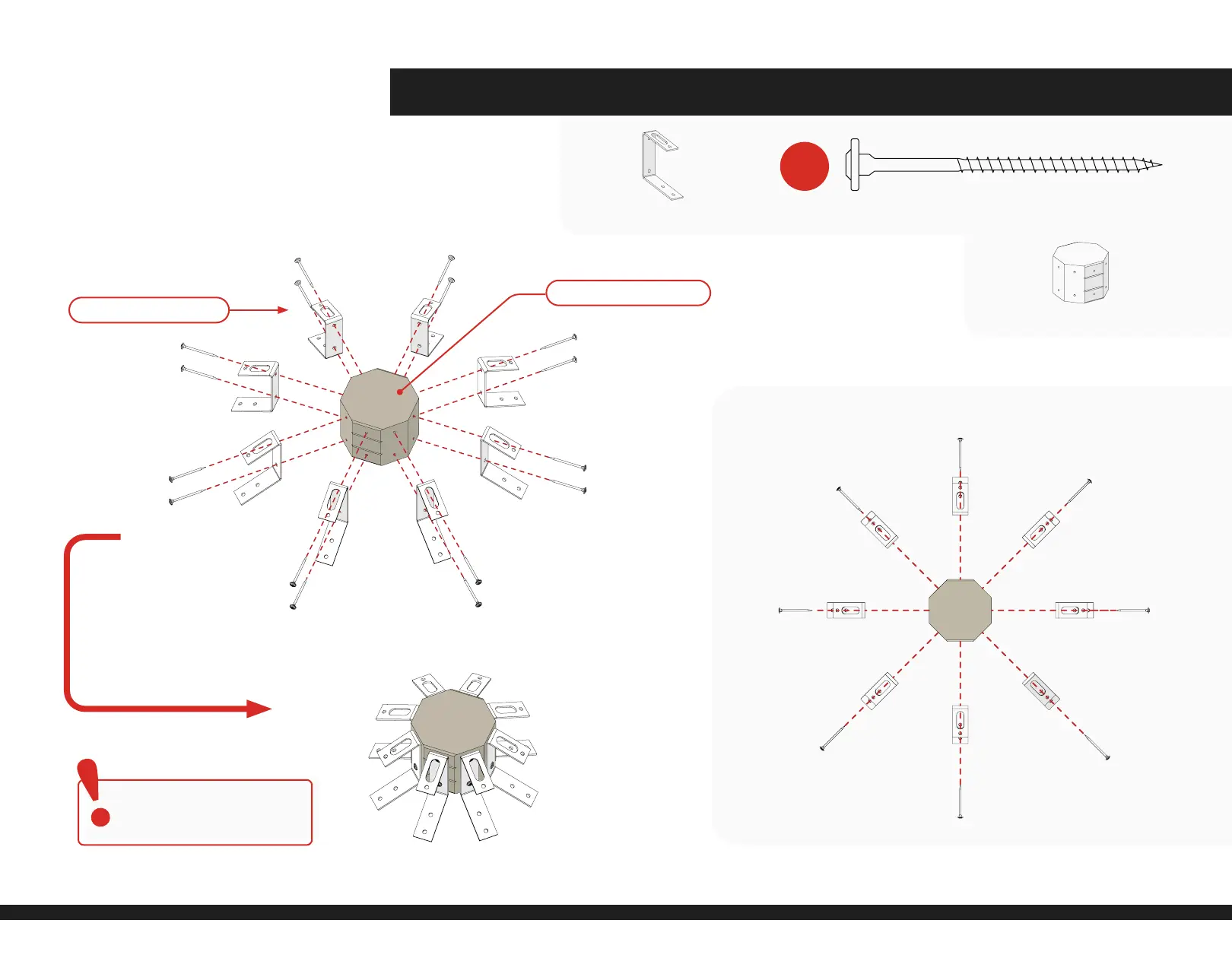

1) Fasten the Brackets (DC 4097) to the Peak Support Block (DC 4125) to
build one Peak Support Block Assembly. The side that contains the Gazebo
4097 Ridge Beam Bracket
4097 Ridge Beam Bracket
16X
4125 Peak Support Block
4125 Peak Support Block
Please, ensure side with the
Serial Number is facing down
To Next Page
