5. DESCRIPTION OF THE APPLIANCE

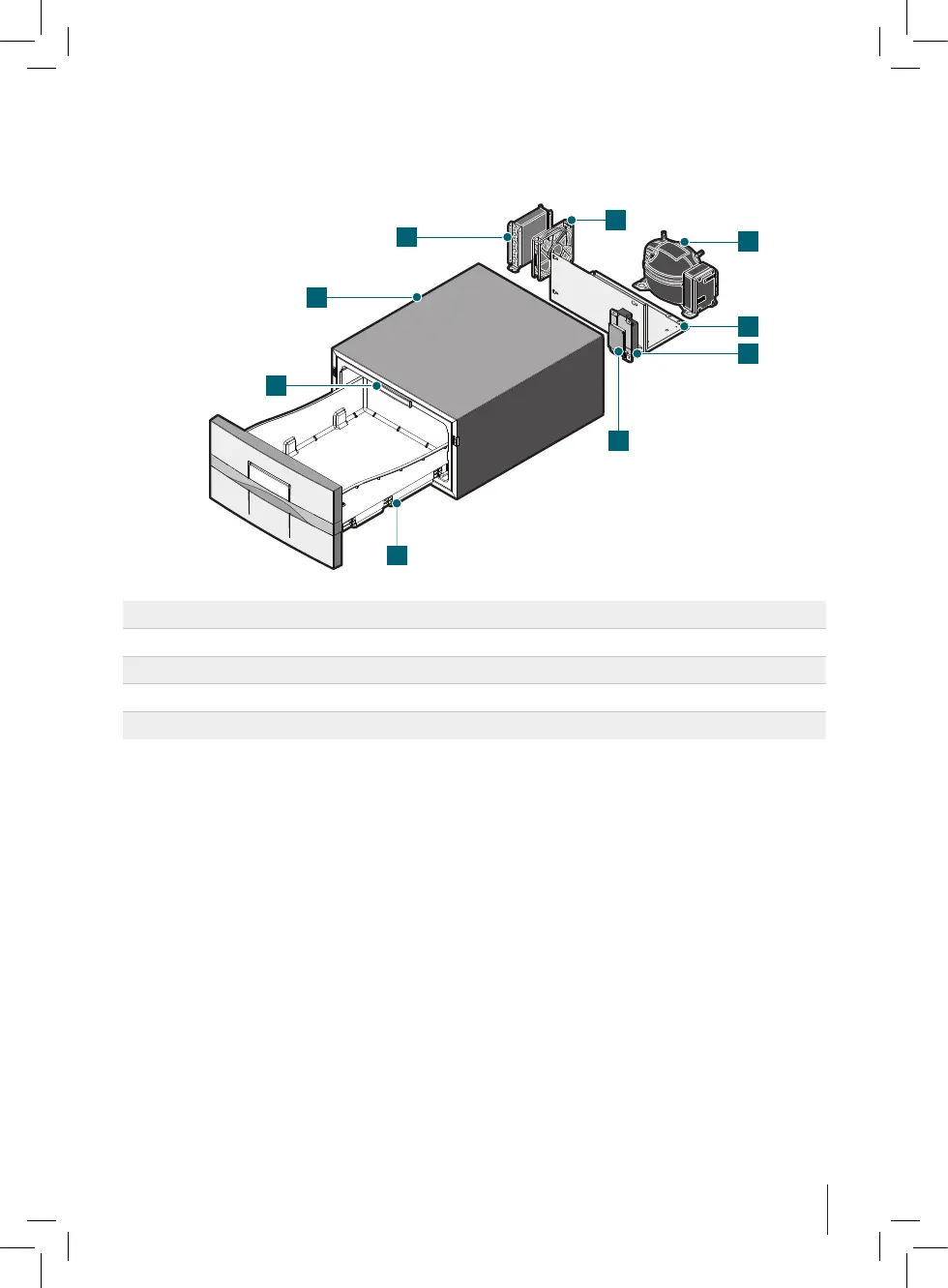

FIG 5.1 EXPLODED DIAGRAM OF COMPONENTS
2
1
9
3
4
5
6
8
7
1 Drawer 6 Compressor
2 Command display 7 Motor base
3 Cabinet 8 Electronic board cover
4 Condenser 9 Electronic board
5 Fan
The label showing the serial number and the technical data is placed inside the refrigerator.
The rst four digits of the serial number identify the year and the week of manufacture.
6. INSTALLATION
Ensure that the refrigerator is not damaged when opening the packaging aer receiving
the product. Any transportation damage must be reported promptly to the reseller and, in
any case, within 24 hours of taking delivery of the appliance. Handle the product with the
utmost care and attention. Always place the refrigerator on a horizontal surface adequate
to support its weight.
Once installation has been completed, check that the refrigerator is not resting on a power
cable. If the power cable is damaged, it must be replaced immediately by someone from the
technical service centre or by someone suitably qualied, in order to avoid any risk. Place the
refrigerator away from heat sources ensuring that it has enough ventilation as in the following
installation examples.
Once the refrigerator has been positioned, wait at least one hour before switching it on.
