Product Introduction

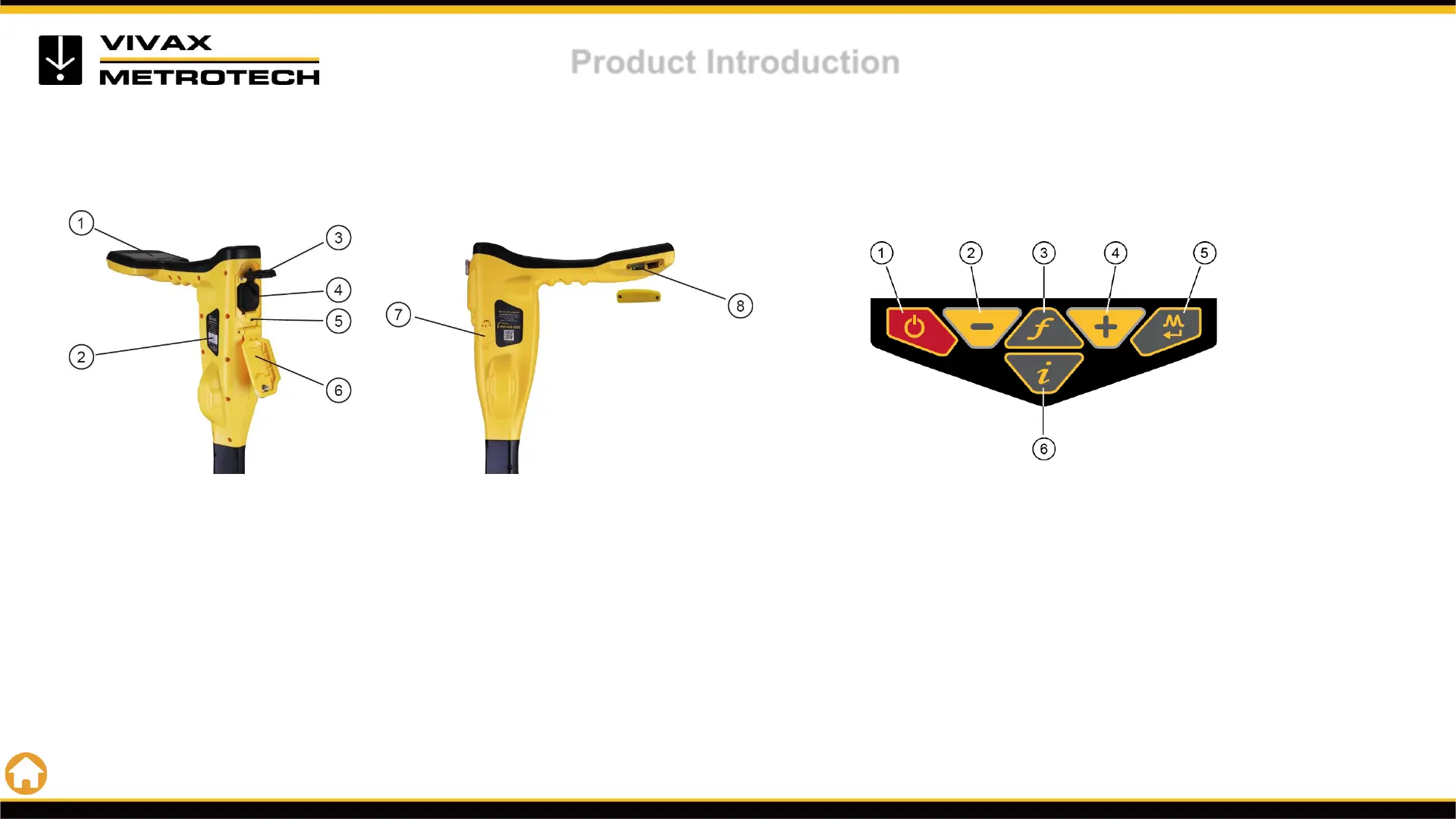

Parts of the receiver
vLoc3-Pro Receiver
vLoc3-Pro Keypad
1 - Display and Keypad
2 - Model and Serial Numbers
3 - Battery Retaining Cover
4 - AA Alkaline or Rechargeable Battery Pack
5 - Mini-USB Port for Data Transfer and Software Upgrade
6 - Battery Compartment Cover
7 - Accessory socket and charging point
8 - Expansion sockets for additional features such as the
Bluetooth module
1 - On/Off Button
2 - Reduce sensitivity. (Also scroll up when in User Menu)
3 - Increase sensitivity. (Also scroll down when in User Menu)
4 - Select frequency
5 - Short press = change antenna response, Long press = change
operational screen
6 - Short press = enter information (depth) screen, Long press =
enter User Set-up options
