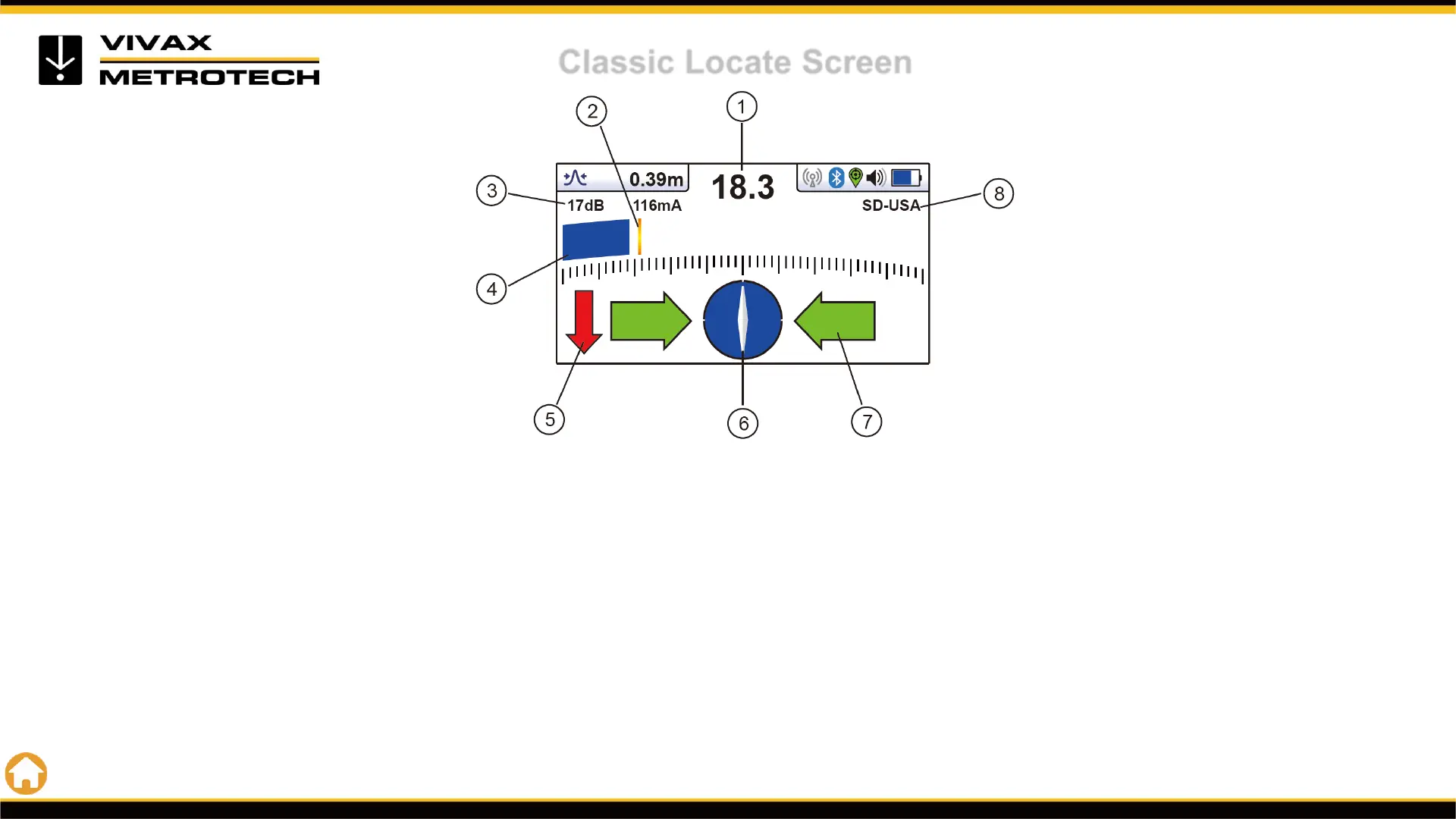

Classic Locate Screen
1
Percentage
signal strength (mirrors the bar graph setting)
2
Peak
level indicator
3
Gain
setting
4
Bar
graph signal strength indicator (changes colour depending on distortion level)
Green
: - low distortion.
Blue
: - Minor distortion, proceed with care.
Red
: - Excessive distortion, treat all data and measurements with caution.
5
Signal
Direction forward/back arrows (only active with Signal Direction frequencies)
6
Compass
line direction indicator (turns blue when aligned with target line)
7
Left/Right
direction to target line indicators
8
Frequency
selection (flashing frequency indicates frequency selection is not valid for this screen
.
Choose
another frequency)
