3
English
Applicable Mount & Brackets
I
Item Models Applicable Mount or Bracket
Junction box AM-718 AM-21D, AM-21E, AM-314, AM-315, AM-414
Power box AA-351
Power box AA-352
115V Line IN
AC24V outputNeutral
Wiring
II

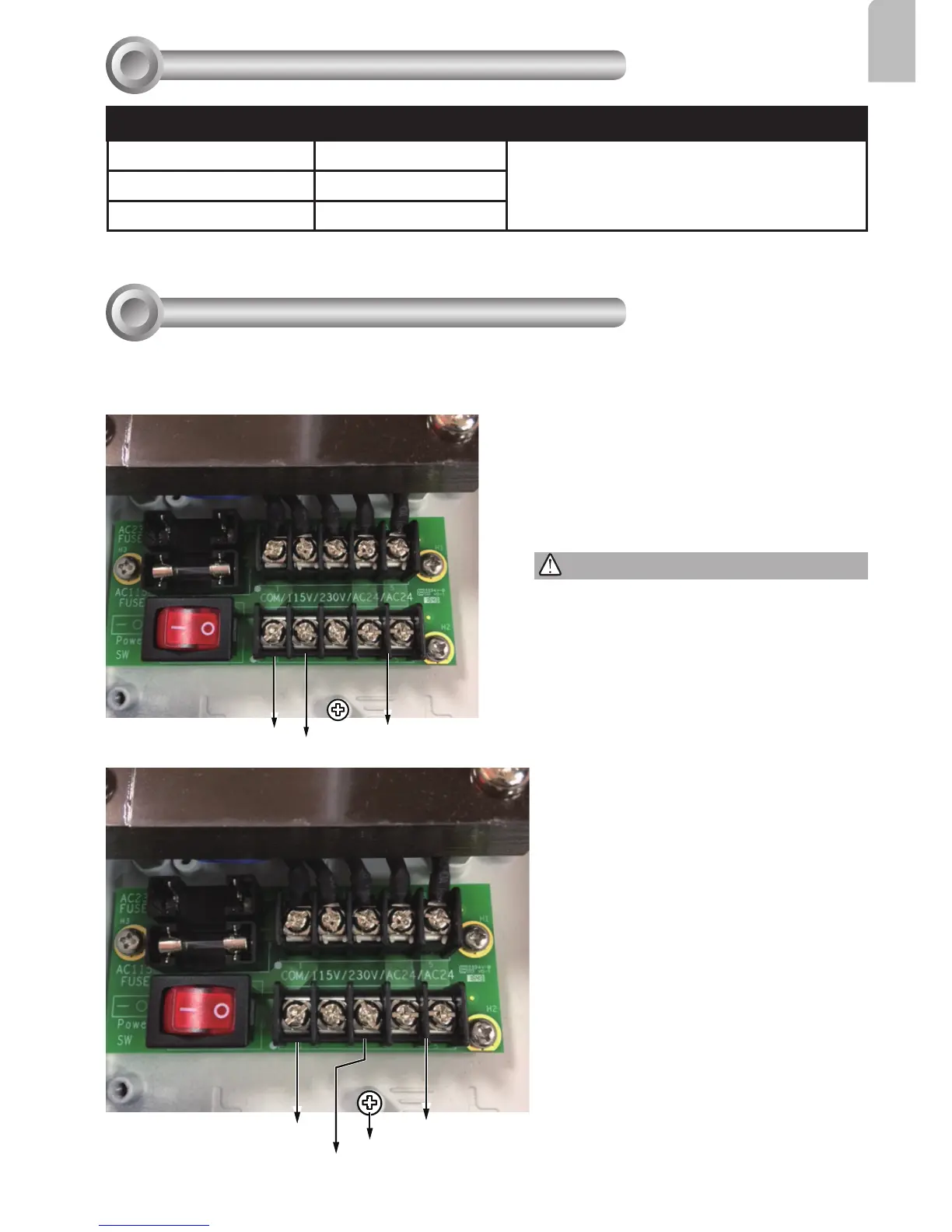

Route your power wires through a 3/4" conduit into the power box. The wiring scheme is shown below.
The power supply converts 115/230V power to the AC24V output to IP cameras.
115V power
230V Line IN
Ground
AC24V output
Neutral
230V power
Do not power down and power up using the
power switch within 30 seconds. The power
charge does not dissipate immediately, and
the fuse will be burnt.
IMPORTANT!:
To Next Page
