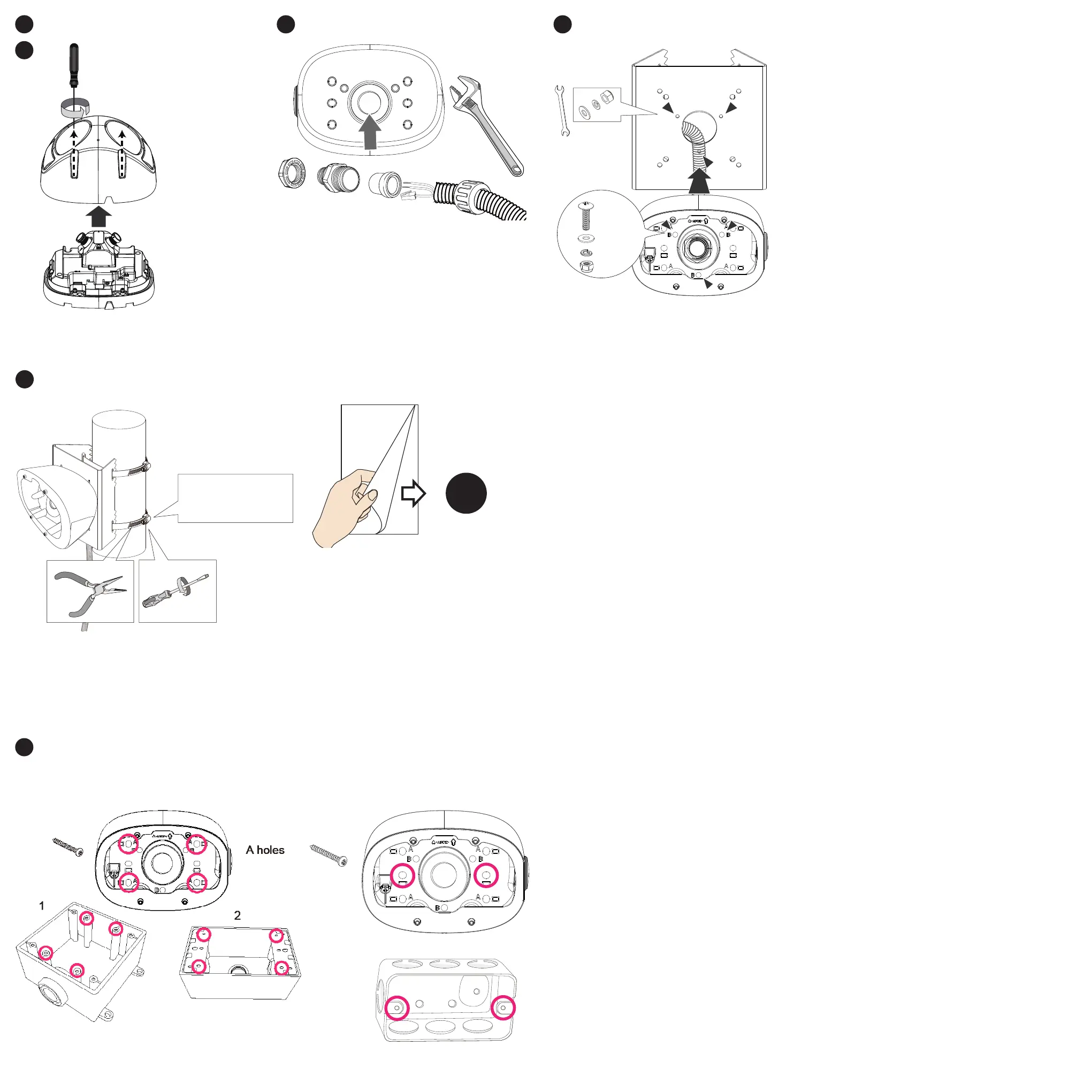

Remove the top cover from the camera.
B
B-1
x4
Torque: 6.5±0.5kgf-cm
Install the tilt bracket to AM-312 using the included M4 screws,
washers and hex nuts. Pass the conduit through the center hole
of the AM-312.
B-2
AM-312
M4X15
B holes
B-3
Installation Torque:
35 lb-in(40kg-cm)
1. Pass the stainless steel straps through the bracket and around the
pole.
2. Tighten the straps using a pincer plier and a at blade screwdriver.
The tilt bracket supports the installation to the following electrical
boxes:
1. Cantex 3/4" type FSE 2 Gang, Outdoor/Indoor electrical box.
2. Generic 3/4" conduit box enclosure, 3/5 holes.
3. Single rectangular handy box.
C
A-4
Install a 3/4" conduit to the center hole. A 3/4" conduit is required
for routing the cables with waterproof connection.
B-4
Refer to Step A-4 for the rest of the installation process.
A holes
3
The rest of the installation steps are identical to those described
above.
