14
x8

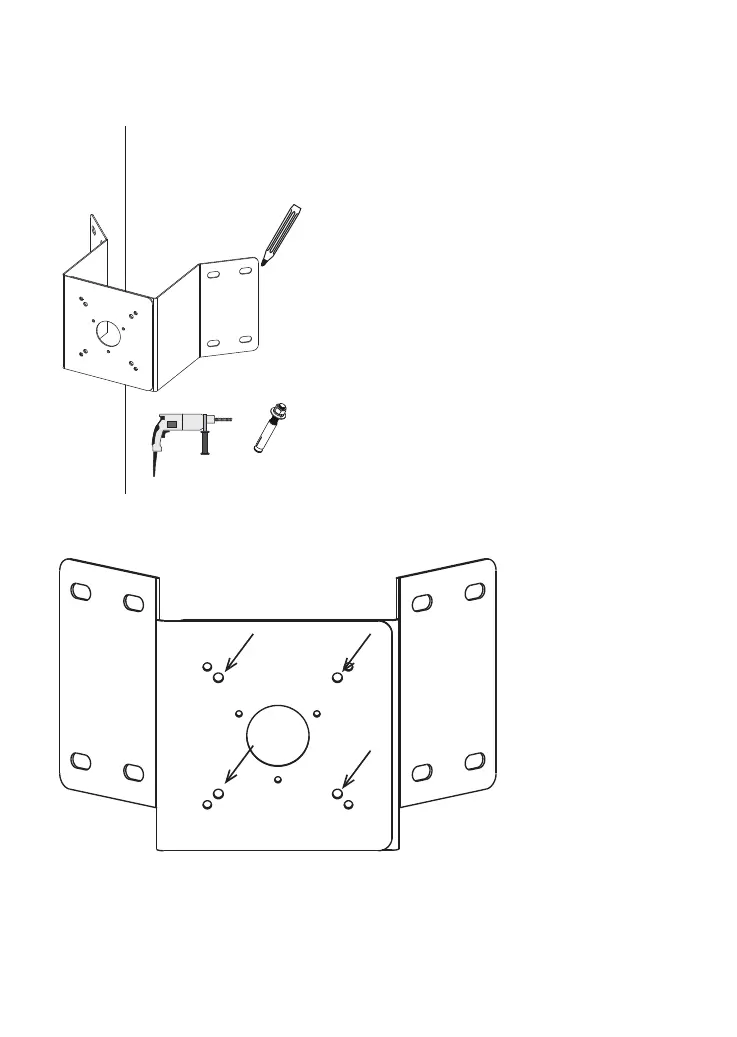

The 4 screw holes marked below are used for mounting the bracket (using the M4 screws).
2. Align the assembled brackets with the desired position. Align screw holes on the
brackets against the wall. Drill holes on the wall for securing the bracket and for routing
the cables. Hammer the anchors into the wall. Note that these screws and wall anchors
are user-supplied.
