Vivotek IB9391-EHT - Page 10

VIVOTEK
10 - User's Manual
icro
MIC P
AC24V
AC24V
DC+ (12V)
DC-
MIC-
MIC+
AU-
AU+
DI1-
DI1+
DO1-
DO1+ (5V)

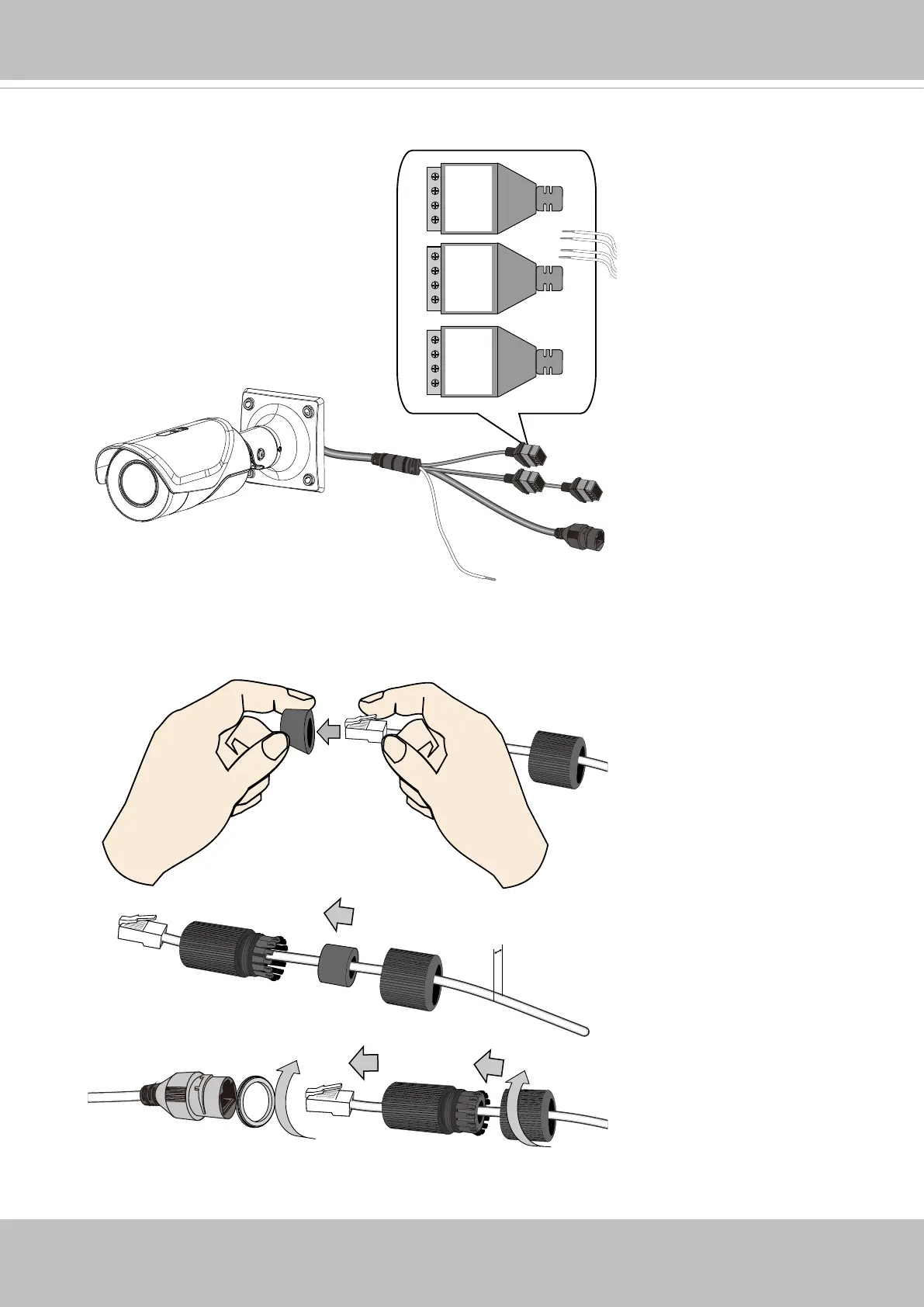

8. If used, connect the AC/DC power, DI/DO, or audio wires to the terminal connectors.
5.5 ~ 6.5mm
9. Pass an Ethernet cable through the waterproof cable gland components, and through the
rubber seal as shown below. Connect the Ethernet cable to the camera's RJ45 onnector.
