6
3. Input/ Output Specification
3.1 Component Video
The input signals are applied to display through component video cable.
PIN NO. SIGNAL
1
GND
2
Red (Pr)
3
GND
4
Blue (Pb)
5
GND
6
Green (Y)
Component Timing
VA Large Size HDMI Video Timing
1 480i 59.94/60Hz
2 640 x 480p 59.94/60 Hz
3 720 x 480p 59.94/60Hz
4 720p 59.94/60Hz
5 1080i 59.94/60Hz
6 1080p 60Hz

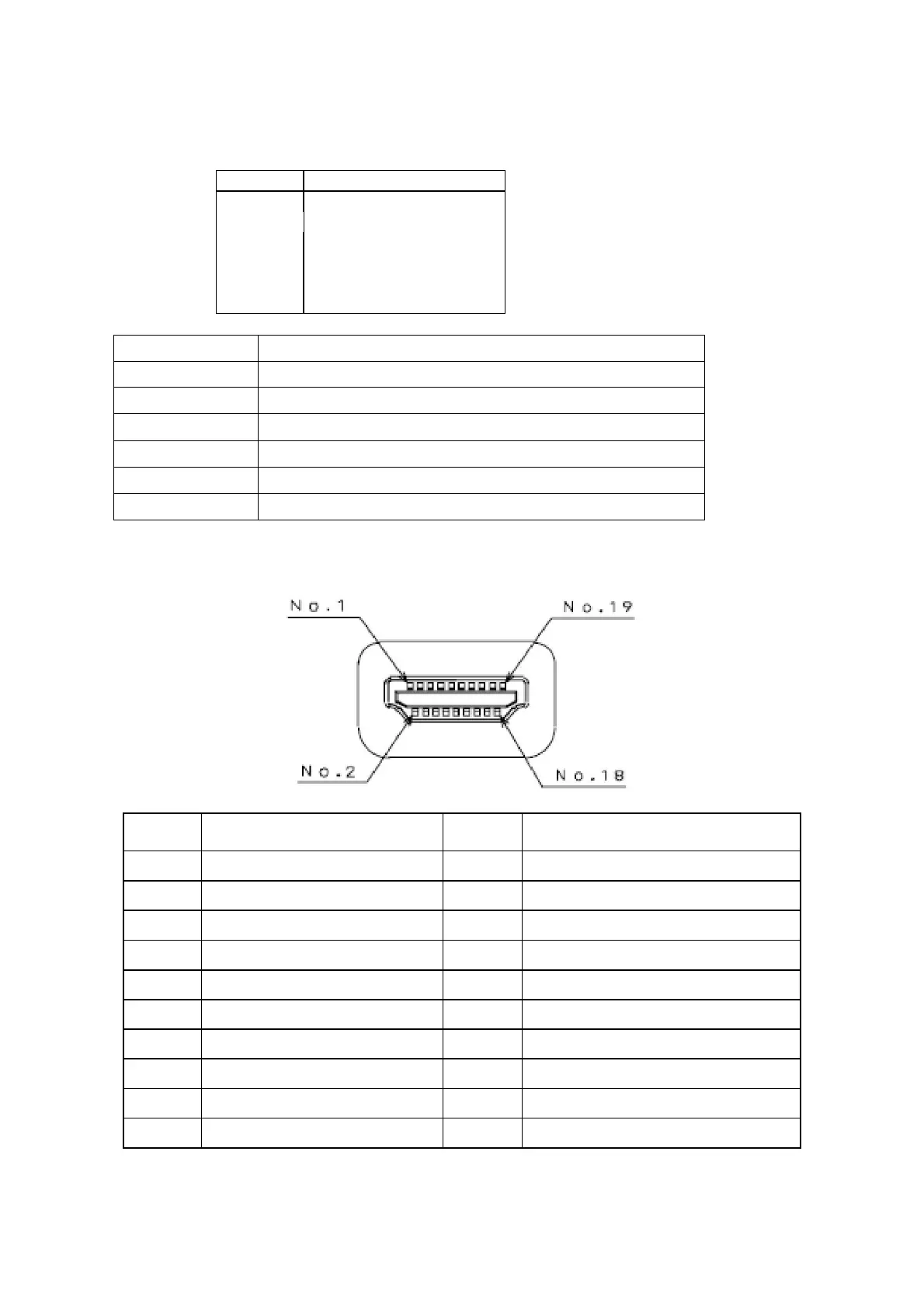

3.2 HDMI Signal input / output
Pin No. Description Pin No. Description
1
TMDSD2+
11
TMDSC
2
DSHLD2
12
TMDSC-
3
TMDSD2-
13
CEC
4
TMDSD1+
14
ARC
5
DSHLD1
15
SCL
6
TMDSD1-
16
SDA
7
TMDSD0+
17
DDC_GND
8
DSHLD0
18
VCC5
9
TMDSD0-
19
HPD
10
TMDSC+
