Vizio E55-C1 Service Manual

16

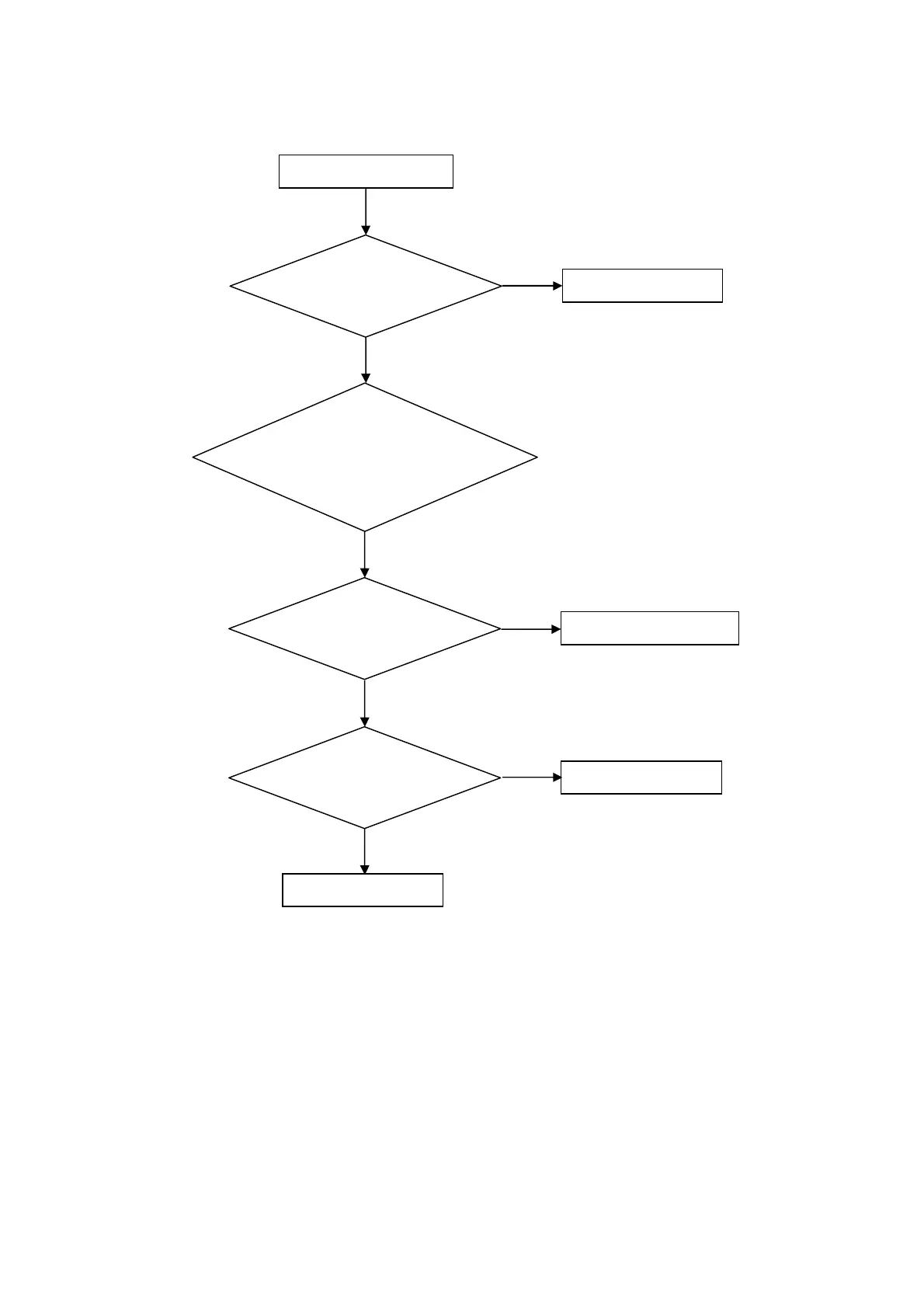

3. Abnormal display
Abnormal display
Check the source
is normal?
Reset the source
NO
Enter the factory mode
to do EEPROM initial &
reset
Check the main
board is normal?
Yes
NO
Replace main board
NO
Check the LVDS
wire is normal?
Replace LVDS wire
NO
Yes
Yes
Replace panel

Vizio E55-C1 Specifications

General

Color depth	8 bit
Screen shape	Flat
Response time	- ms
Display diagonal	54.6 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Full-Array
Supported video modes	1080p
Contrast ratio (dynamic)	500000:1
Display refresh rates supported	120 Hz
Motion interpolation technology	-
Music apps	Pandora, Spotify
Video apps	Netflix, YouTube
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS Studio Sound
RMS rated power	10 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	300 x 300 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Package depth	160 mm
Package width	1357 mm
Package height	821.9 mm
Package weight	21000 g
Sustainability certificates	ENERGY STAR
Certification	UL, cUL, NOM, FCC Class B, BET7/ICES-003 Class B, IC, IFETEL, HDMI (CEC, ARC), Dolby Digital

Weight and Dimensions

Stand width	1090 mm
Depth (with stand)	255 mm
Height (with stand)	781 mm
Weight (with stand)	15900 g
Depth (without stand)	64.01 mm
Width (without stand)	1239 mm
Height (without stand)	721.1 mm
Weight (without stand)	15500 g
