WALLMOUNTING THE TV
First you will need a wall mount. Consult the provided table below to find the
appropriate mount for your TV.
Be sure the mount you choose is capable of supporting the weight of the TV.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface. Be sure the surface is
clear of debris that can scratch or damage the TV.
3. If attached, remove the stands by loosening and removing the screws.
4. Attach your TV and wall mount to the wall by carefully following the instructions
that came with your mount. Use only with a UL-listed wall mount bracket rated
for the weight/load of your TV.

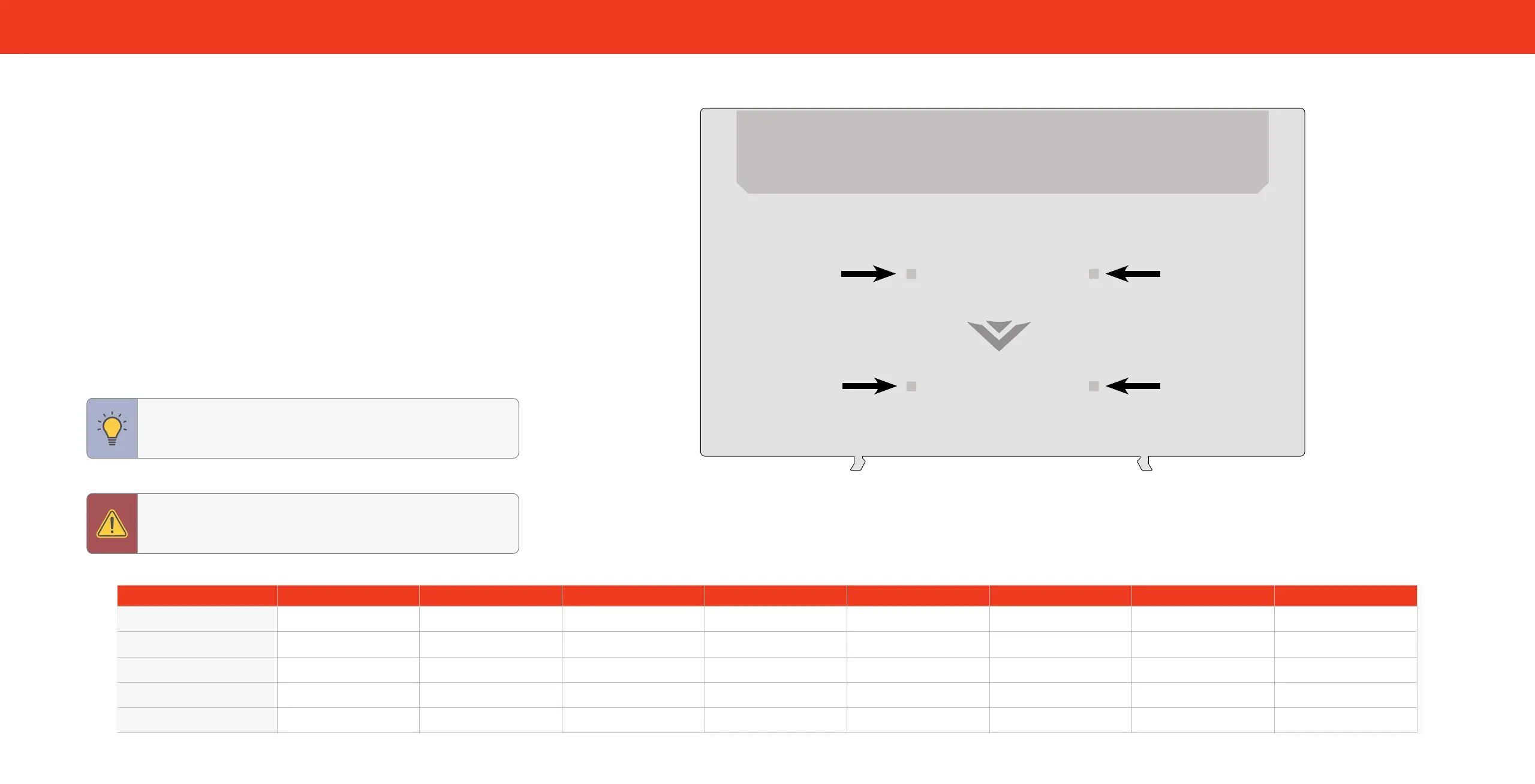

Note: The image shown here is for illustrative purposes only and may be subject to change.
The actual number of ports and their locations may vary, depending on the model.
TIP: Installing a TV on a wall requires lifting. To prevent injury or
damage to the TV, ask someone to help you.
WARNING: Do not use the screws that are included inside the wall
mount holes to mount TV.
VHD24M-0809 VHD24M-0810 VHD32M-0807 VHD32M-0810 VFD32M-0807 VFD40M-0809 VFD40M-0810 VFD43M-0804
Screw Size M6 x 10 mm M6 x 10 mm M6 x 10 mm M6 x 10 mm M6 x 10 mm M6 x 10 mm M6 x 10 mm M6 x 10 mm
# of Screws (not included) 4 4 4 4 4 4 4 4
Hole Depth 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm 10 mm
Hole Pattern 100 x 100 mm 100 x 100 mm 100 x 100 mm 100 x 100 mm 100 x 100 mm 100 x 100 mm 200 x 100 mm 100 x 100 mm
Weight w/o Stand 8.00 lb (3.63 kg) 8.00 lb (3.63 kg) 8.00 lb (3.63 kg) 8.00 lb (3.63 kg) 8.00 lb (3.63 kg) 8.00 lb (3.63 kg) 12.08 lb ( 5.48 kg) 8.00 lb (3.63 kg)
