D700/750 E2-E3
Before carrying out any adjustment, activate
all safety devices and evaluate the need to
inform the personnel working on the engine
or nearby. In particular, place proper signs
in the nearby areas and keep away all devic-
es which, once activated, may represent a
source of unexpected danger and risk for
people's safety and health
ADJUSTMENT INFORMATION
RECOMMENDATIONS FOR ADJUSTMENTS
Follow the procedure below.
1- Turn off the engine and remove
the ignition key.
2-Let the engine cool down ade-
quately to avoid being burnt.
3-Loosen nut (A).
4-Adjust alternating current gener-
ator (B) manually and at the same
time tighten nut (A) to regulate belt
tension.

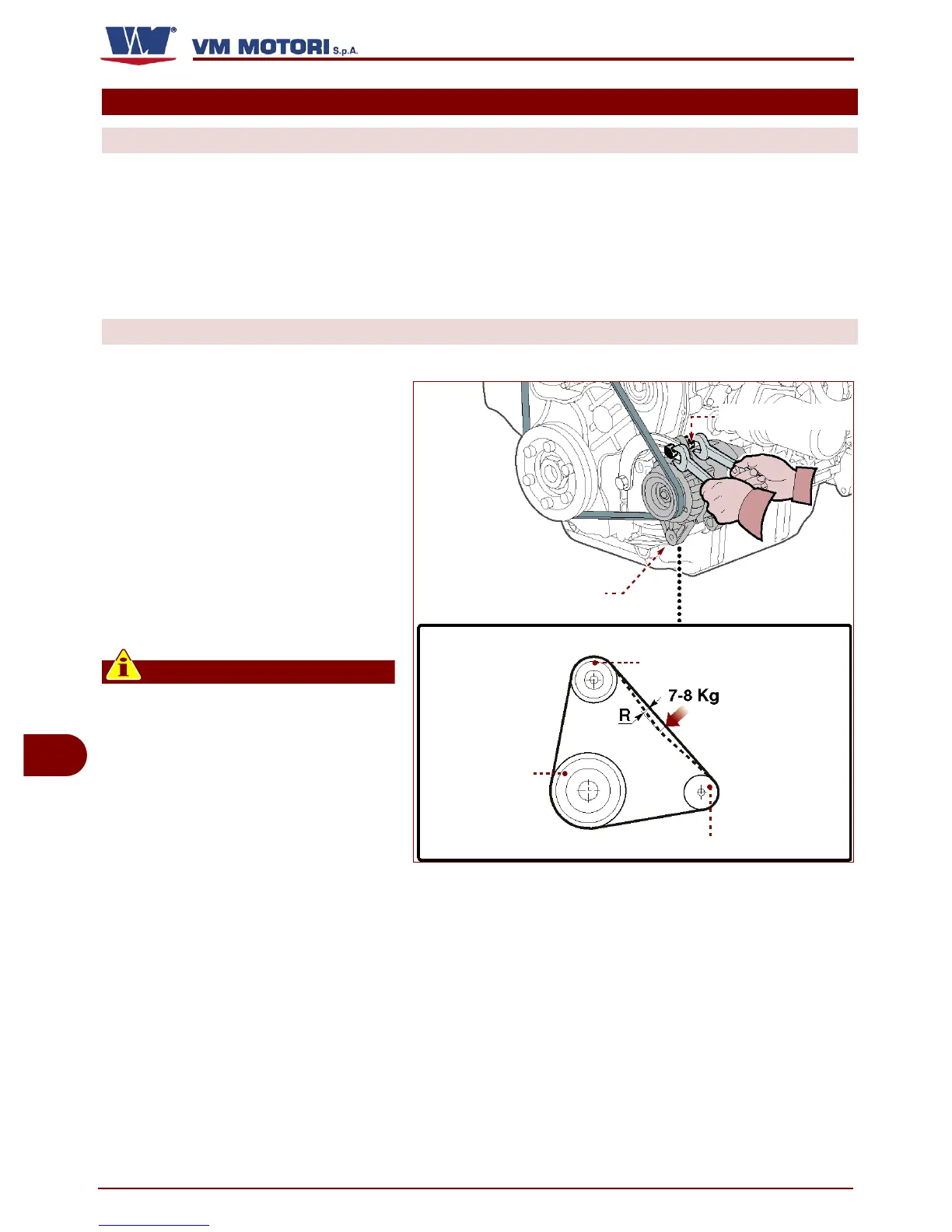

To check belt tension, use the
method shown in figure. The re-
sulting shifting (R) must be 10
mm.
HOW TO ADJUST THE TENSION OF THE DRIVING BELT
