DOC8003, Rev. B
March, 2003
Elite
Installation Manual
3.8 Install the Winch Assembly
Ensure the four wheels are attached to the protruding axles and align them with the track. Slide the
winch head unit onto the trolley assembly completely. Using the two 3” bolts and nuts provided, close
out the end of the trolley track to trap the winch head unit as shown below.
3.9 Connect the Winch Assembly to the Drive Screw
Using the provided bolt, align the winch head unit with the drive screw assembly and insert the bolt and
tighten finger tight (See Figure 3-7).
Trolley
Route wiring
in front of trolley!
Winch

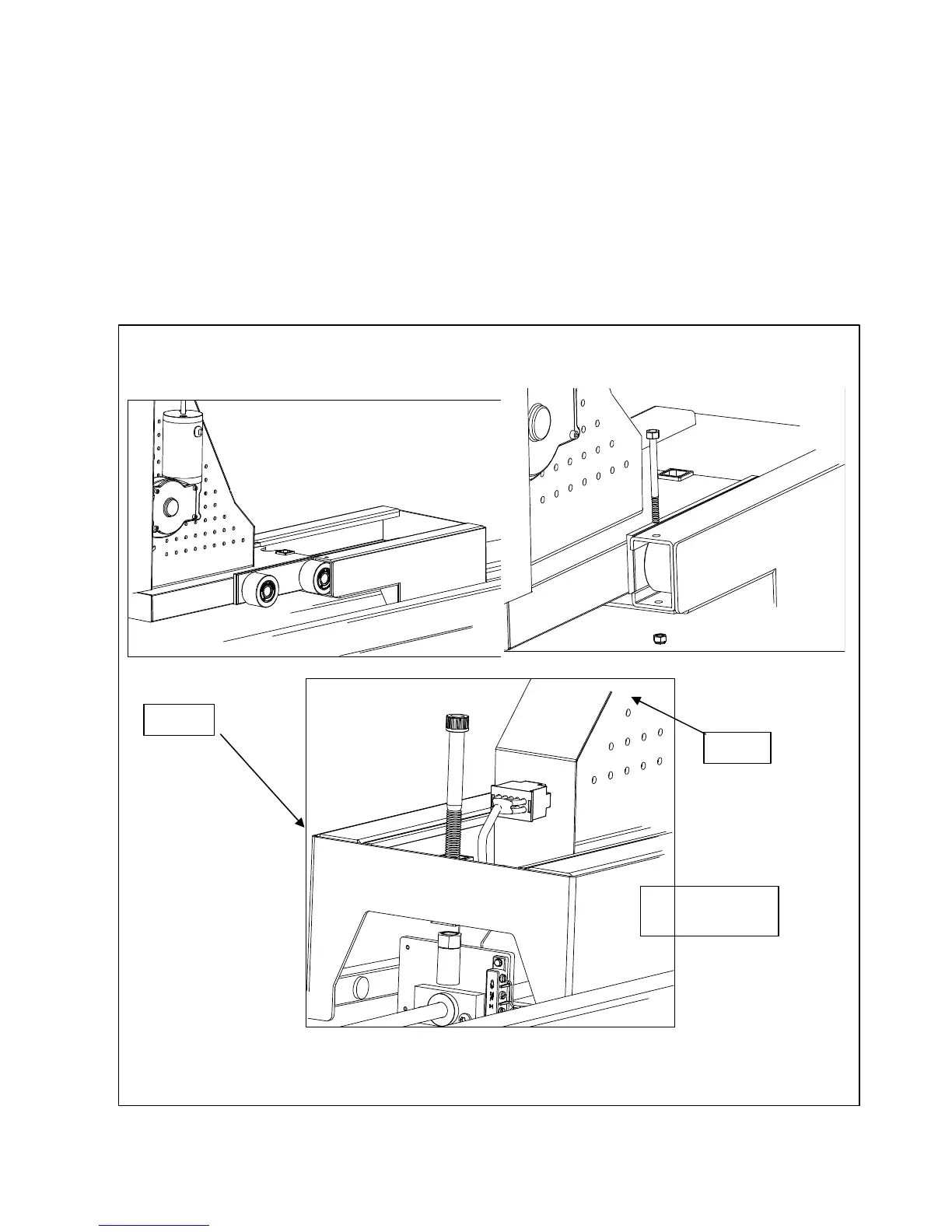

Figure 3-7. Winch Assembly Installation and Attachment to Drive Screw
