DOC8003, Rev. B
March, 2003
Elite
Installation Manual
3.2.4 Extension. The Elite lift will extend 28” from the interior floor surface of the vehicle to the
ground. Measure the total height to ensure that the Elite lift will reach the ground when fully-extended.
3.2.5 Bumper Clearance. The Elite lift will extend 15” from the rear load line inside the cargo
area to its maximum outward travel. Ensure that the unit will clear the bumper, trailer hitch or any
other obstructions along the centerline of the vehicle.

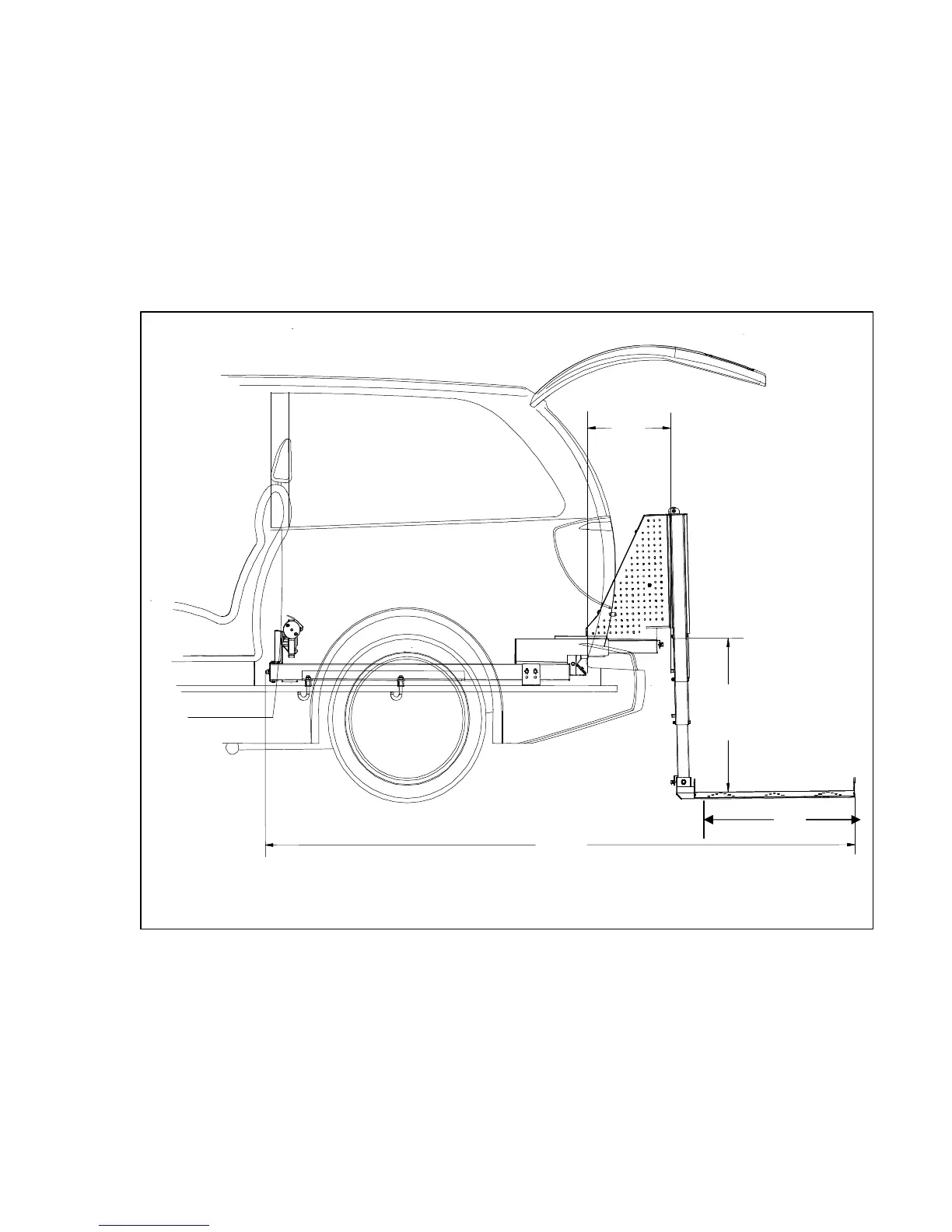

Figure 3-3. Verifying Proper Extension and Bumper Clearance
29.5”
15”
100”
27.5”
