3.4 Attach the Track to the Dog Bone Bars
Lay the track in the vehicle such that the back edge is 1” behind the load line. It may be necessary to
cut into the plastic threshold if the base unit is too long for the cargo area of the vehicle. Pass the 3/8”
bolts on the dog bone bars through the appropriate holes in the base unit tracks. Using a ratchet, four
3/8” washers and four 3/8” Nylock nuts, tighten the base unit to the dog bone bars.
NOTE: Ensure the track is centered in the cargo space.

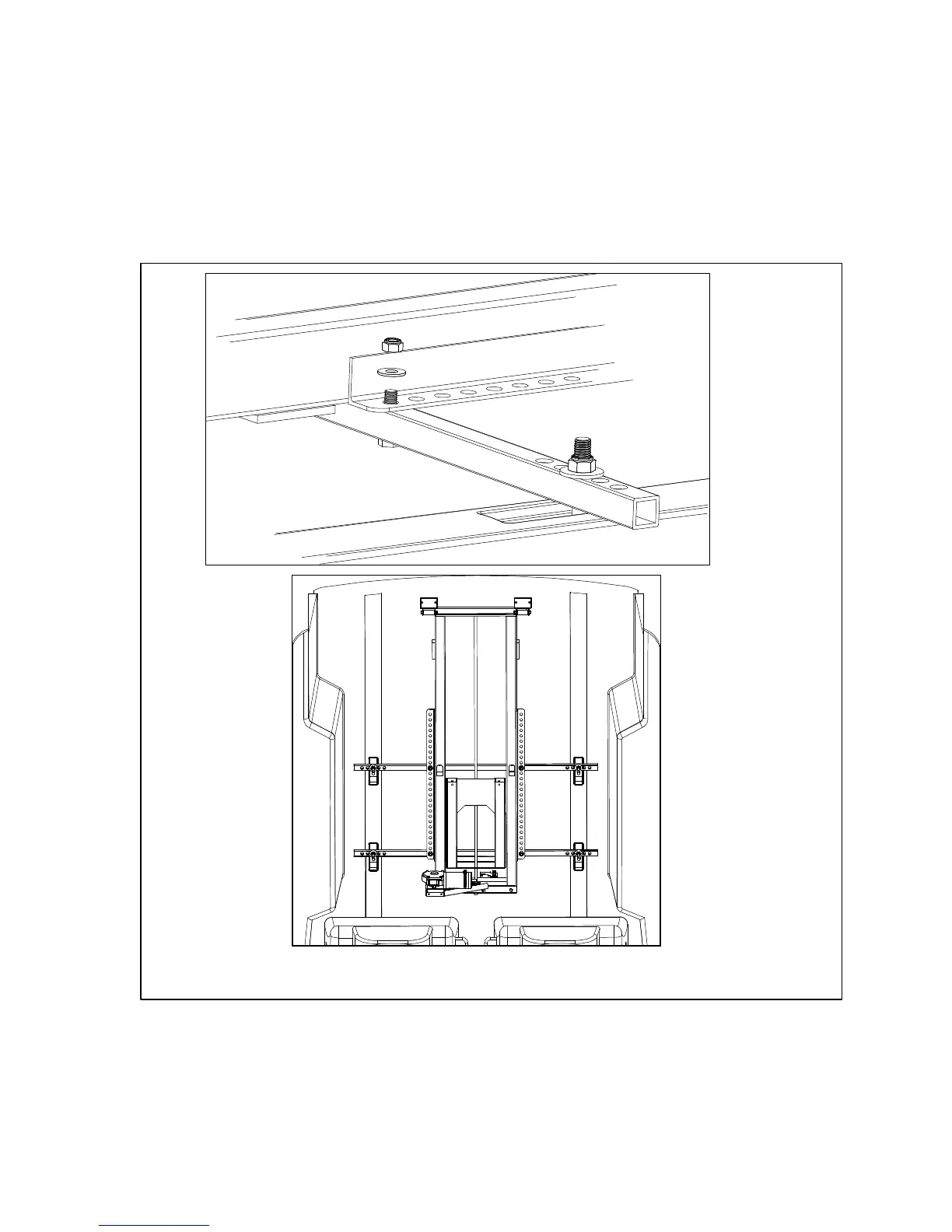

Figure 3-5. Attaching Track to Dog Bone Bars
