1
The Syntesi range of appliances is comprised of 3 models
of high-efficiency combination boiler with outputs to
heating & DHW of 24, 28, & 34kW respectively. Each
appliance – by design – incorporates electronic ignition,
circulating pump, expansion vessel, safety valve, pressure
gauge, and automatic by-pass.
The Syntesi range is produced as room sealed, category
II2H3+ appliances, suitable for internal wall mounting
applications only. They are provided with a fan powered
flue outlet with an annular co-axial combustion air intake
INTRODUCTION
that can be rotated – horizontally – through 360 degrees
for various horizontal or vertical applications. The Syntesi
range can also be used with the Vokera twin flue system.
The Syntesi range is approved for use with C12 & C32
type flue applications.
These appliances are designed for use with a sealed
system only; consequently they are not intended for use
on open vented systems.

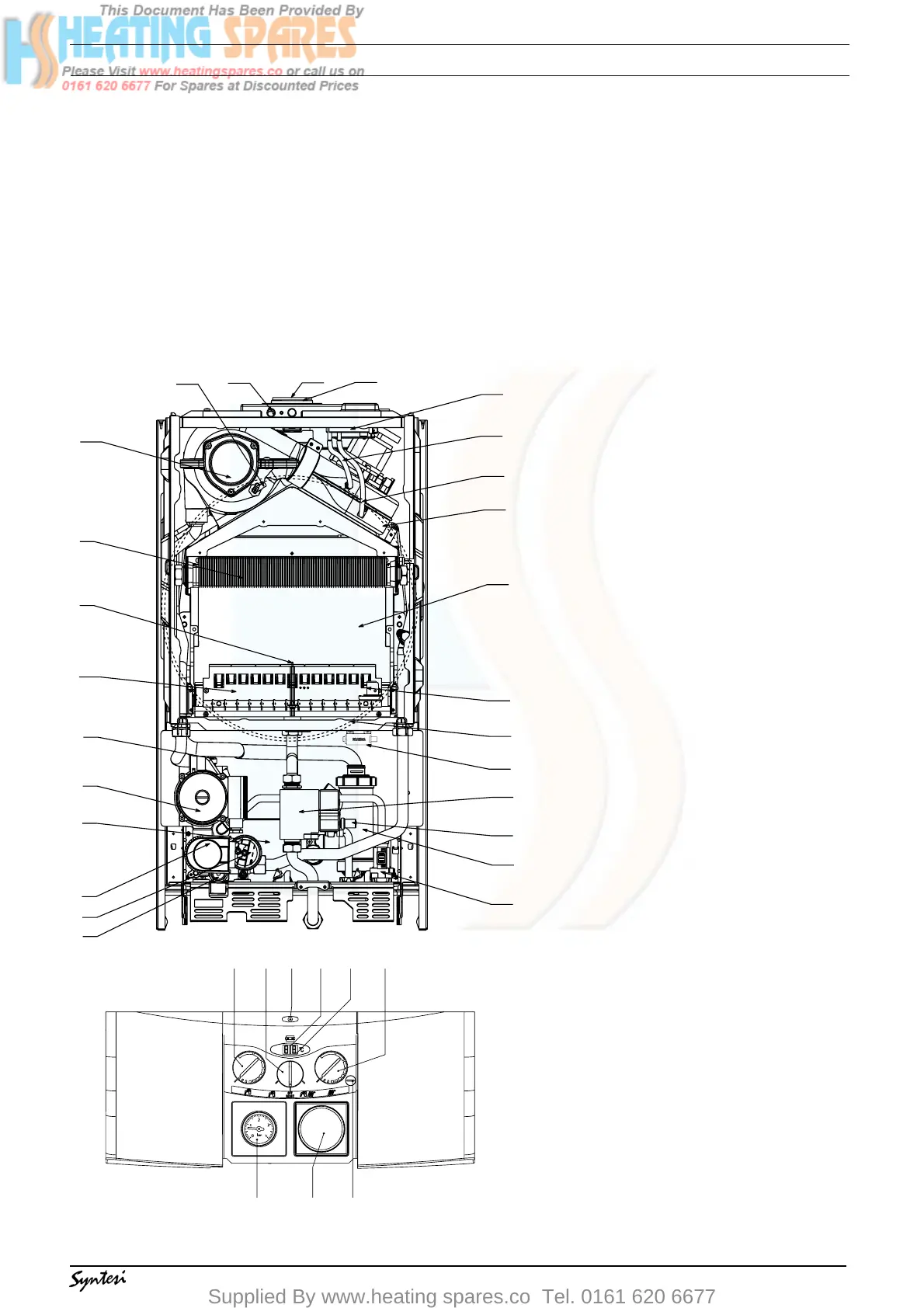

Fig. 1
Fig.1 General Layout
1 Safety Valve
2 Pressure Switch
3 Diverter Valve Motor
4 Domestic Heat Exchanger
5 Pump
6 Automatic Air Release Valve
7 Main Burner
8 Electrode
9 Main Heat Exchanger
10 Latent Heat Collector
11 Condense Sensor
12 Flue Gas Analysis Test Point
13 Flue Outlet
14 Air Intake
15 Differential Analog Pressure Switch
16 Silicone Pressure Tube
17 Silicone Negative Pressure Tube
18 Fan Assembly
19 Combustion Chamber
20 Burner Temperature Control
21 Expansion Vessel
22 Transformer
23 Gas Valve
24 Modulator Coil
25 Condense Trap
26 Domestic Hot Water Flow Switch
27 Hot Water Temperature Control
28 Mode Selector Switch
29 Status LED
30 Temperature Indicator
31 DHW Request LED
32 Central Heating Temperature Control
33 Combustion Switch
34 Timeclock Aperture (optional)
35 Pressure Gauge
6
9
11
12
13
14
19
22
24
15
16
17
23
18
1
2
3
4
5
7
8
10
20
21
25
26
35 34 33
27 28 30 3129 32
