87
Repair instructions

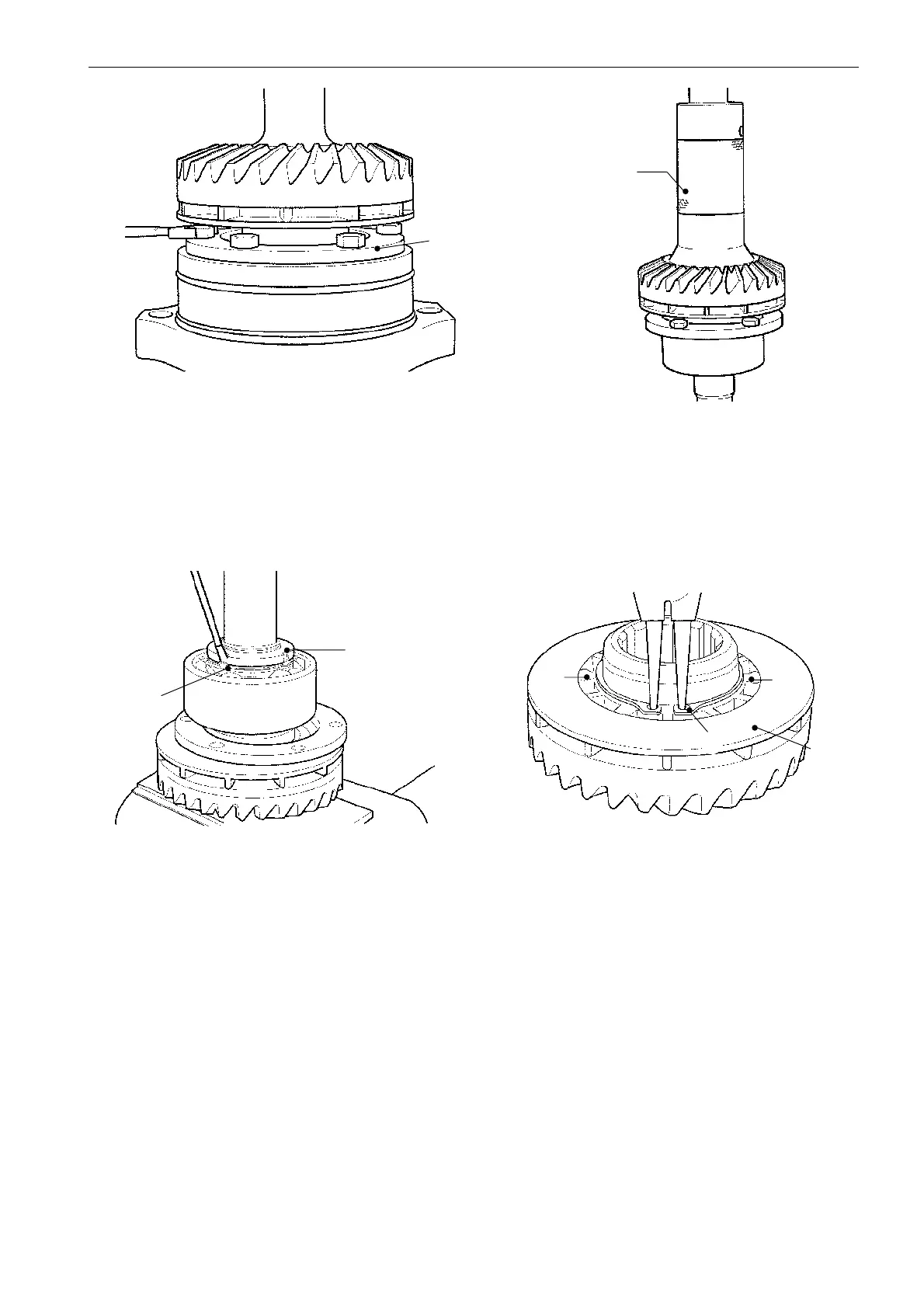

5. Remove the 6 nuts holding the washer (1) and
knock the propeller shaft out of the bearing housing.
Use a copper mallet or its equivalent in order not to
damage the threads.
6. Fold down the locking washer (1) remove the round
nut (2).
7. Press off the gear wheel and the bearing from the
propeller shaft simultaneously. Use special tool
884168.
8. Remove the locking ring (1) and the oil deflector (2)
from the gear wheel.
NOTE! In order not to damage the oil deflector dur-
ing the dismantling, apply the bending tool close to
the 2 carrier pins (3). (This is valid for sterndrives of
earlier manufacture). On sterndrives of later manu-
facture the carrier pins have been replaced by a load
pin.
1
2
884168
2
3
3
1
1
