09 Maintenance and servicing
Fuses
09
238

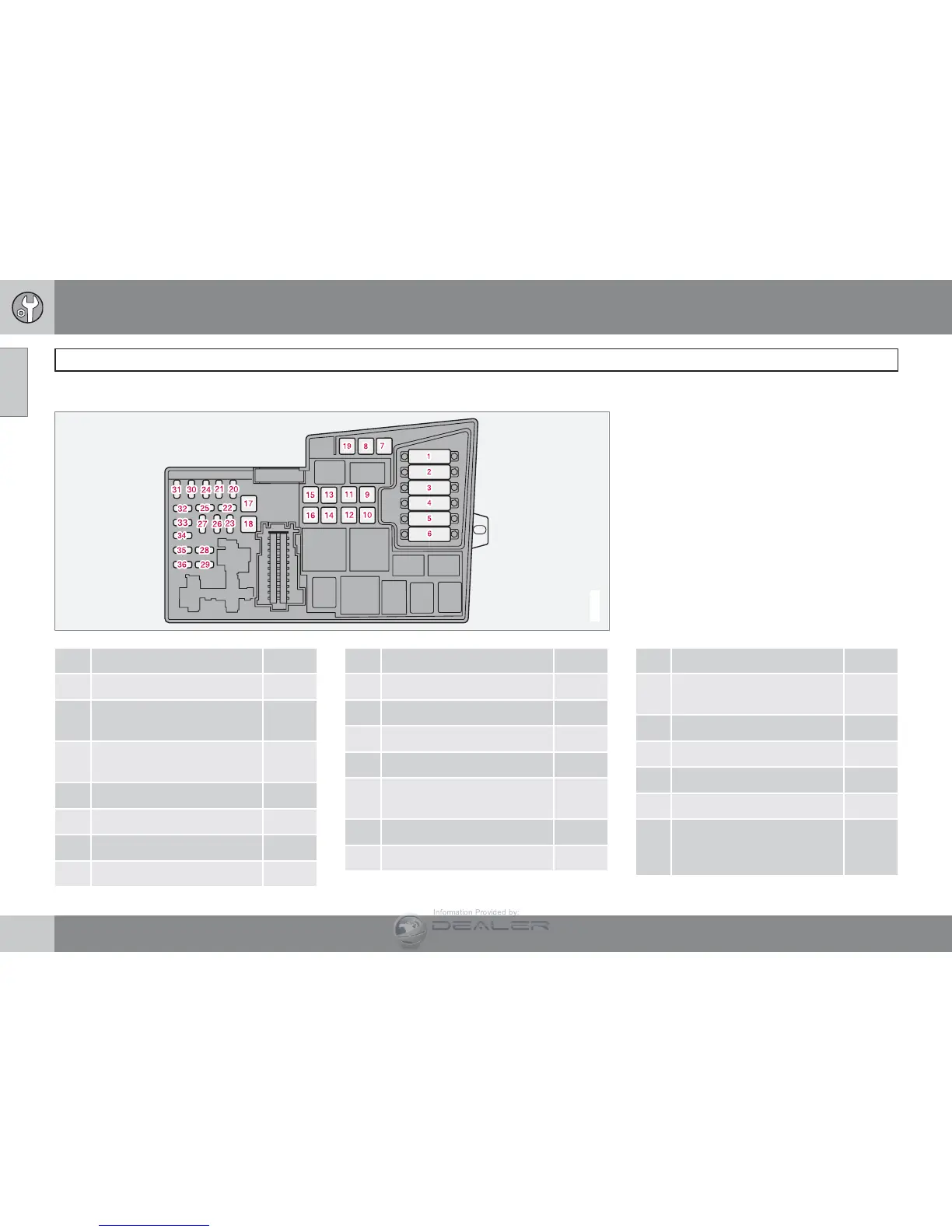

Fuses in the engine compartment
G020250
1. Coolant fan (radiator) 50A
2. Power steering 80A
3. Feed to passenger com-
partment fuse box
60A
4. Feed to passenger com-
partment fuse box
60A
5. Element, climate unit 80A
6. Not in use
7. ABS pump 30A
8. ABS valves 20A
9. Engine functions 30A
10. Climate system blower 40A
11. Headlight washers 20A
12. Feed to heated rear window 30A
13. Starter motor relay 30A
14. Trailer connector (acces-
sory)
40A
15. Not in use
16. Feed to audio system 30A
17. Windshield wipers 30A
18. Feed to passenger com-
partment fuse box
40A
19. Not in use
20. Horn 15A
21. Not in use
22. Not in use
23. Engine control module
(ECM)/transmission control
module (TCM)
10A
