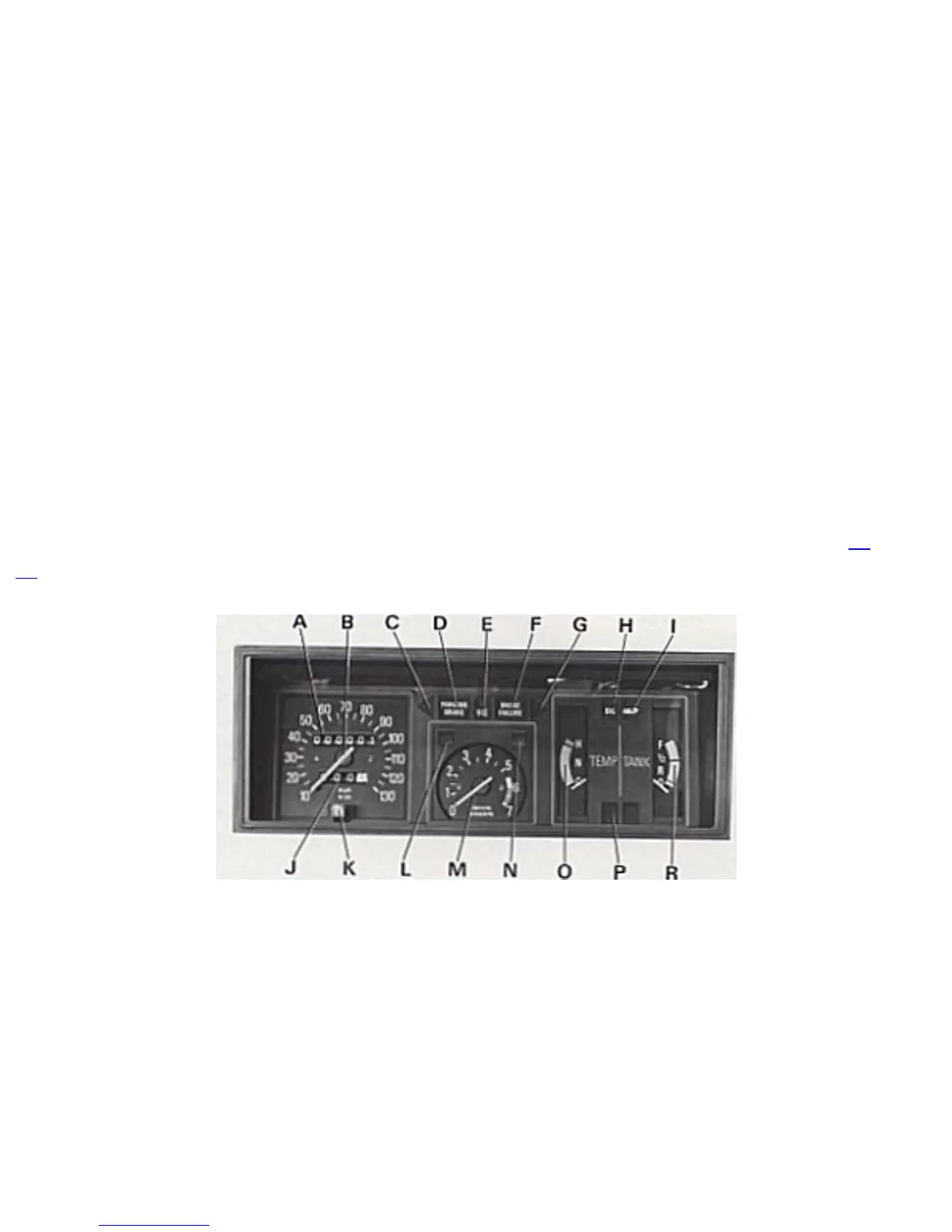

J Trip odometer
(last figure represents 1/10 mile/km)
K Trip odometer reset knob
Push in to reset
L Reminder light, EGR Service
M Tachometer (certain models)
Reads thousands of engine rpm.
Orange range for momentary use, during acceleration.
Red prohibited range.
N Bulb failure warning light (yellow)
O Temperature gauge
The gauge pointer should normally remain inside the black range during normal operation.
If the pointer enters the red range repeatedly, check coolant level and fan belt tension, see page
49 and
59.
P Overdrive indicator light (green)
Lights when overdrive is engaged.
R Fuel gauge
The fuel tank capacity is approx. 60 liters = 15.8 US gals/13.2 Imp. gals.
F Full
1/2
R Reserve
O Empty
The red range from R to O represents approx. 8 liters = 2.5 US gals. 1.2 Imp. gals.
